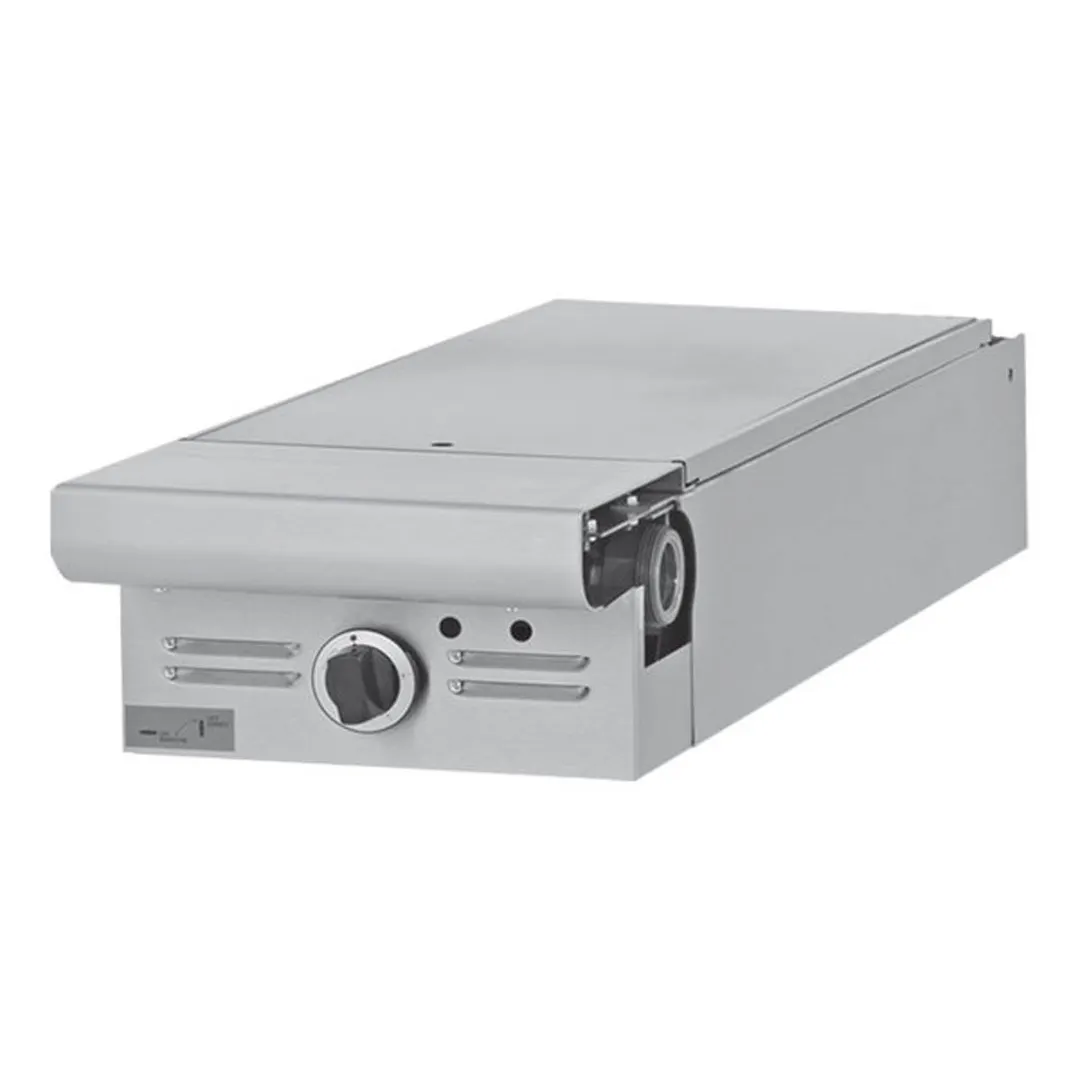

Garland Master Series Front-Fired Hot Top Range Attachment

Specifacations

Heavy‑duty gas range attachment with storage base, Model MST5S. One front‑fired spectro‑heat hot top. 17" (432mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Stainless steel front and sides. 40,000 BTU (11.71 kW) total. Natural or propane gas. Sentry total flame failure protection for all burners. Also available with modular top, suffix T.

Standard Features

Stainless steel front and sides
Stainless steel door on storage base
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Extra heavy cast iron top sections
Removable cast iron ring; and lid
Stainless steel burner box bottom
Storage base interior of aluminized steel
Heavy gauge aluminized steel radiation baffle system
Three individually controlled jet burners 40,000 BTU (11.71 Kw) total, 30,000 BTU (8.78kW) for CSA approved propane models.
Electric Spark ignition on all pilots Suffix -E models
Sentry total flame failure protection for all burners

From The Manufacturer

Master Series Range, gas, 17", modular, Add-A-Unit, front fired hot top, jet burners, removable cast iron ring & lid, electronic spark ignition, flame failure device, stainless steel front & sides, 45,000 , CE, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	MST5T-E
Weight	138 lbs
Width	17″
Depth	38″
Height	10″
Installation Type	modular
Range Type	heavy duty/modular range
Top Configuration	hot top
Special Features	with electric pilot ignition
Exterior Finish	stainless steel front & sides
Top	(1) hotplate
Total BTU	40,000
