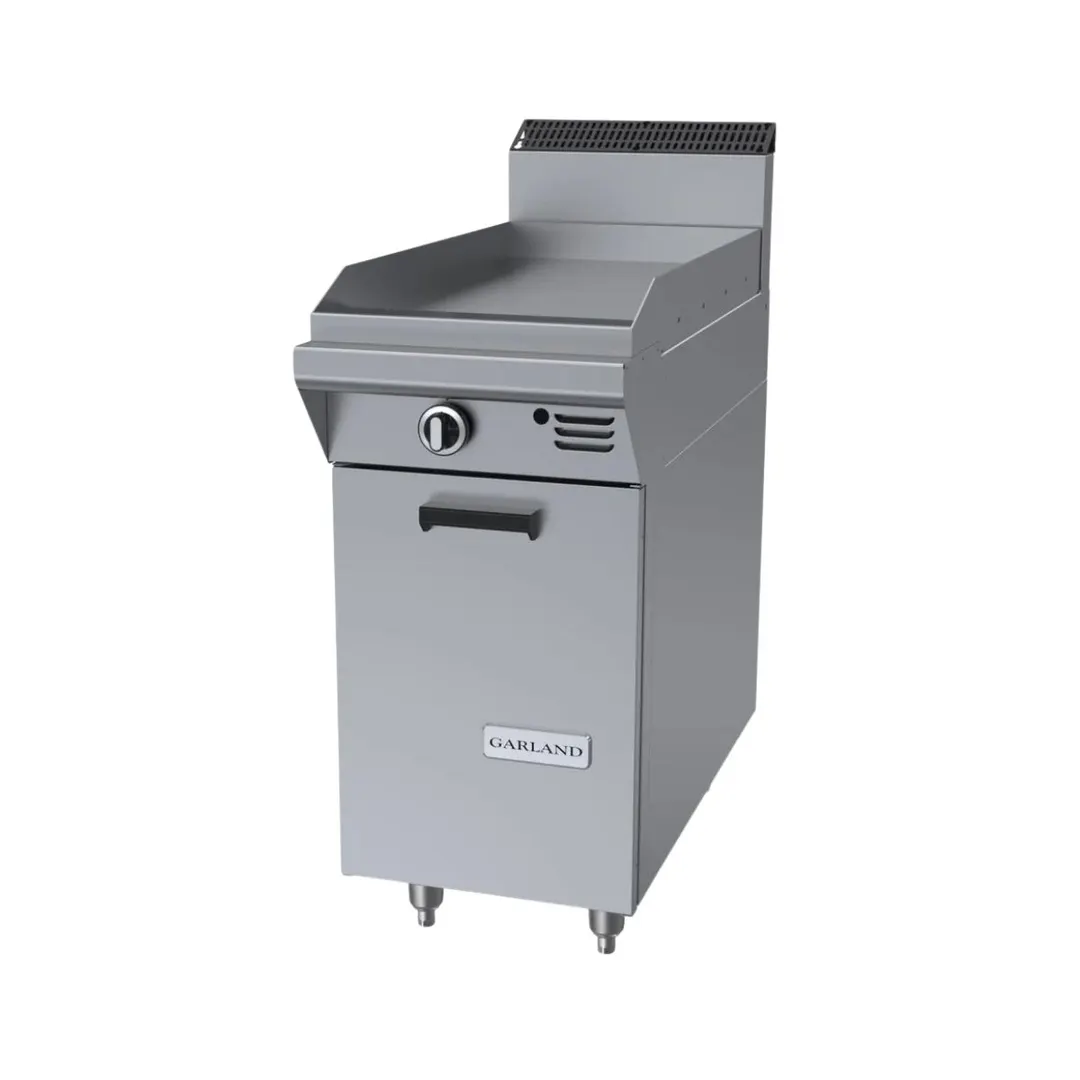

Garland Master Series Griddle Range Attachment

Specifacations

The 1" (25mm) thick steel griddle plate is 17" wide x 24-3/4" deep, (433mm x 629mm) and bordered by side and rear continious‑welded stainless steel splash guards. The 30,000 BTU, (8.78 kW), "H" burner controlled by a Hi‑Lo valve provides uniform heat. Sentry total flame failure protection for all burners Heavy gauge aluminized steel radiation baffle requires no Fire brick, heats evenly, increases thermal efficiency. Natural or propane gas. Also available with modular top, suffix T.

Standard Features

Stainless steel front and sides
Stainless steel door
6" (152mm) chrome steel adj. legs
30,000 BTU (8.78 kW), "H" type burner
1" (25mm) thick Steel griddle plate 2-5/16” (59mm) high welded stainless steel splash guards, sides & back
Clip on stainless steel backsplash for griddle plate
removable stainless steel grease drawer
Hi‑Lo valve control
Aluminized steel under all cooking surface
Storage base interior of aluminized steel
Electric Spark ignition on all pilots Suffix -E models
Sentry total flame failure protection for all burners

From The Manufacturer

Master Series Range, gas, 17", Add-A-Unit, griddle, 1" thick steel plate, manual controls, electronic spark ignition, storage base, stainless steel front & sides, 6" adjustable legs, 33,000 BTU (Garland)

Manufacturer	Garland US Range
Model Number	MST7S-E
Weight	260 lbs
Width	17″
Depth	38″
Height	40″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	griddle
Special Features	with electric pilot ignition
Plate Thickness	1.000" = 1"
Exterior Finish	stainless steel front & sides
Top	(1) griddle
Total BTU	30,000
