The Imperial IHR-2FT-XB Heavy Duty Ranges Hot Tops
Imperial IHR-2FT-XB Features
French Tops
- Circular cast iron rings and lift off covers.
- Rings are located directly over the burners.
- Pans can be placed directly on the intense open flame when covers are removed.
- Two cast iron ring burners rated 35,000 BTU/hr. (10 KW) each (IHR-2FT models).
- One cast iron ring burner rated 35,000 BTU/hr. (10 KW) (IHR-1FT models).
- Temperatures gradually reduce toward the rear of each top for simmering.
- Heavy duty tops measure 18" w x 28" d (457 w x 711 d mm).
- Tops have cast-in heat retaining projections underneath to absorb and defuse heat.
- Each burner has one adjustable gas valve and one standing pilot.
- Manual controls for each burner.
Standart Oven
- 40,000 BTU/hr (12 KW) oven with 100% safety pilot and manual shut-off valve.
- Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
- Exclusive heat deflector reflects heat into the oven, not the floor.
- Chef Depth interior is 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) and accommodates 18" x 26" (457 x 660) sheet pans left-to-right and front-to-back.
- Porcelainized sides, rear, deck and inner door liner for easy cleaning.
- Superior heavy-duty door hinge.
- Side oven controls are protected in the cool zone.
- One chrome oven rack is included.
Convection Oven
- 35,000 BTU/hr. (10 KW) convection oven with 1/4 hp blower motor cooks products quickly and evenly with less shrinkage.
- Electronic ignition system with a single solenoid valve.
- Convection oven interior dimensions 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm).
- Three position switch for cooking or cool down. Fan shuts off automatically when door is open.
- 1/4 hp blower motor.
- Porcelainized sides, rear, deck and door lining for easy cleaning. Stainless steel door gasket.
- Burner “ON” indicator light and one hour manual timer.
- Three chrome oven racks included.
From The Manufacturer

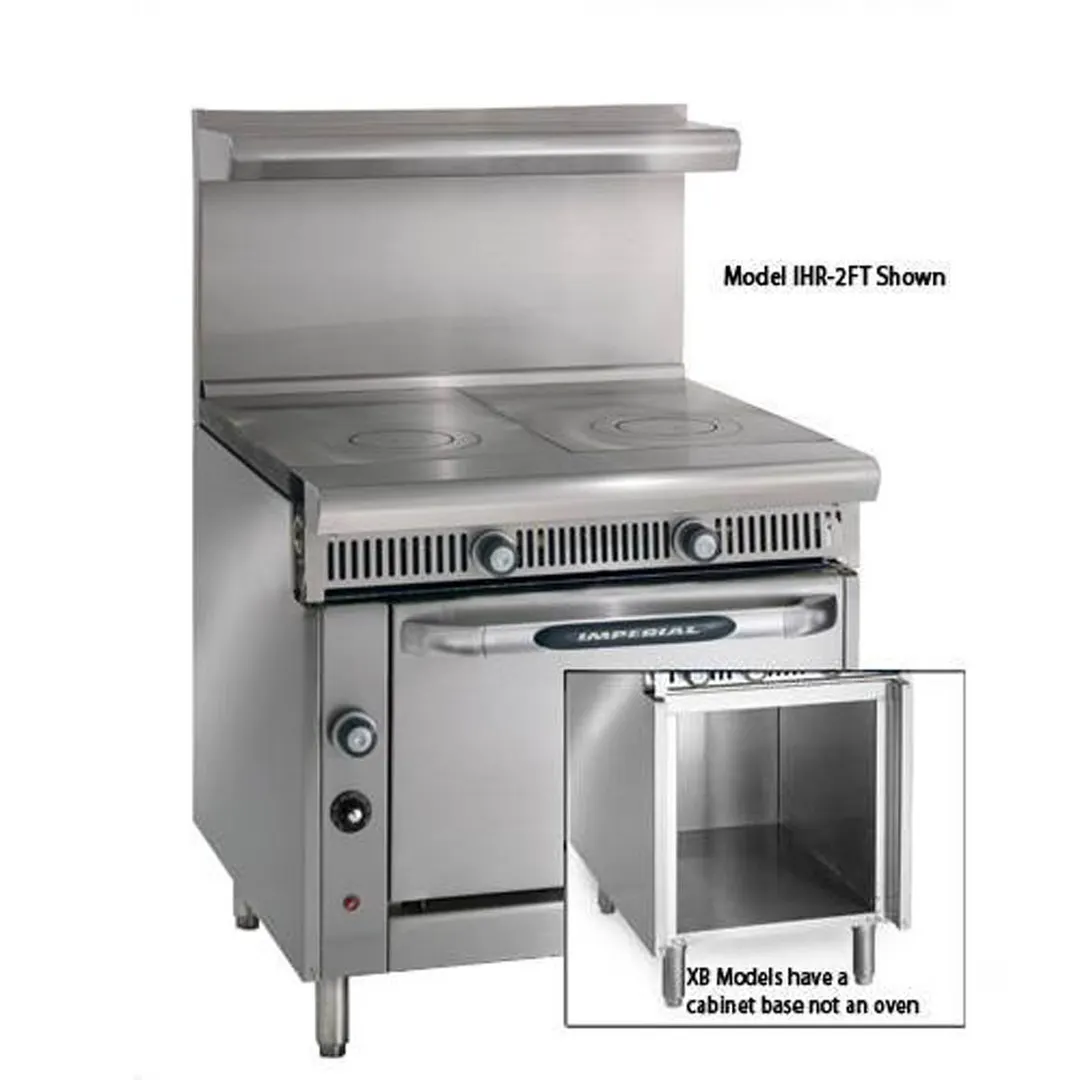

Spec Series Heavy Duty Range, gas, 36", (2) 18" French tops, cast iron rings & lift off covers, open cabinet, bottom shelf, manual controls, stainless steel front, sides, landing ledge, backguard & kick plate, 6" legs, adjustable feet, 70,000 BTU, cETLus, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
