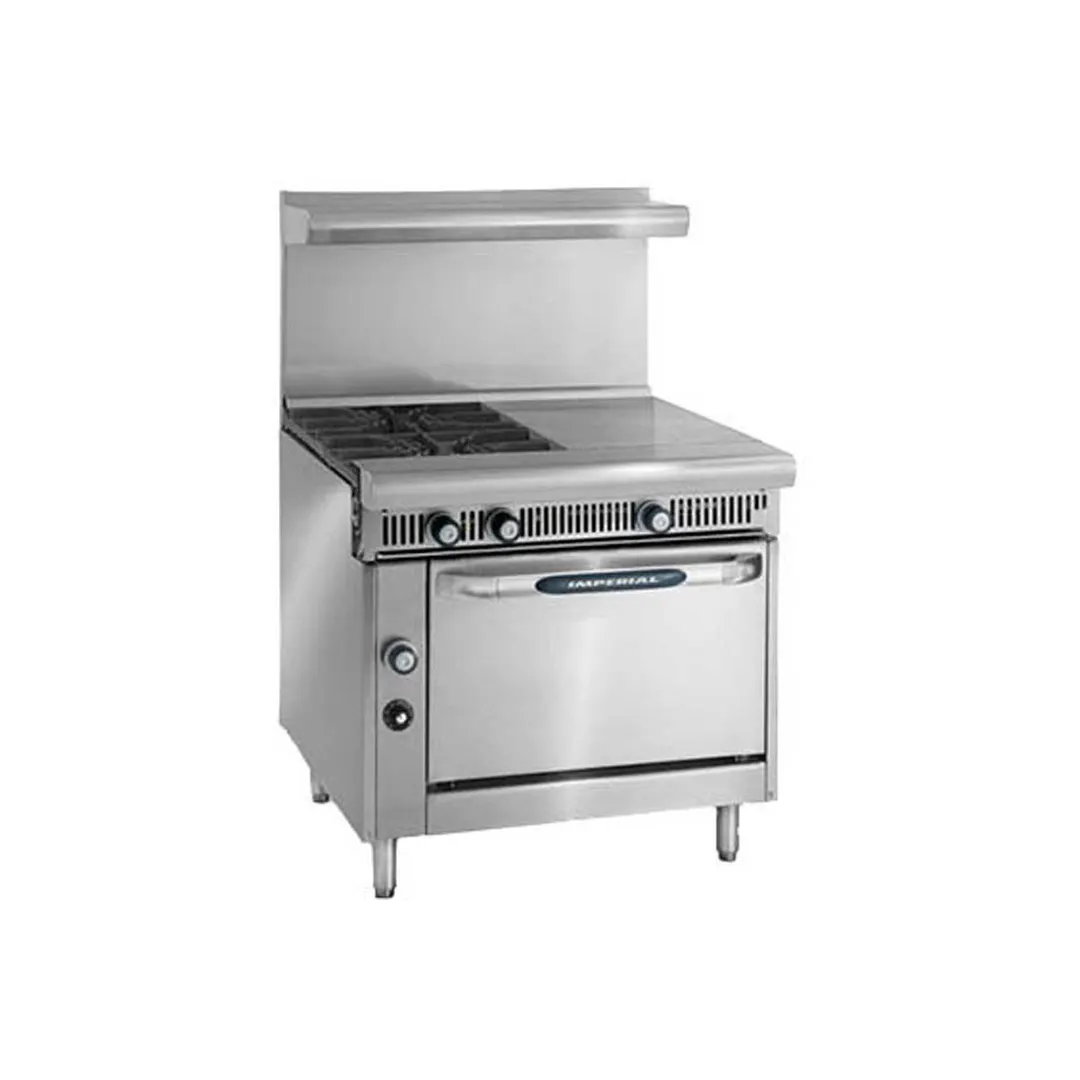

The Imperial IHR-2HT-2-C Heavy Duty Ranges Open Burners and Hot Tops Combinations
Imperial IHR-2HT-2-C Features
Hot top
- Heavy duty, highly polished top provide even heat across entire surface.
- Plates measure 18" w x 28” d (457 x 711 d mm), 12" w x 28” d (305 x 711 d mm) or 12" w x 14" d (305 x 356 mm) depending on model.
- Burners have 40,000 (12 KW) BTU output, located every 18" (457 mm) with one manual control per burner.
Open Burners
- Anti-clogging burner 21% more efficient than other manufacturers’ heavy duty burners.
- 35,000 BTU/hr. (10 KW) output with a 7,000 BTU/hr. low simmer feature.
- One-piece venturi base has no gaskets. Venturi slopes down to the burner creating more efficient heating.
- Cast-iron burners remove and separate for cleaning.
- All stainless steel pilot tubing and solid brass top burner valves for a long service life
Grates
- Wavy grates create more heat transfer. Heat convects in waves for continual heat-to-pan contact.
- Grates measure 12" x 14" (305 x 356 mm) or 18" x 14" (457 x 356 mm) depending on model.
- Cast-iron design features flame shaping center tube for more efficient heat transfer.
- Anti-clogging shield designed into the grate protects the pilot from grease and debris.
Standart Oven
- 40,000 BTU/hr (12 KW) oven with 100% safety pilot and manual shut-off valve.
- Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
- Exclusive heat deflector reflects heat into the oven, not the floor.
- Chef Depth interior is 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) and accommodates 18" x 26" (457 x 660) sheet pans left-to-right and front-to-back.
- Porcelainized sides, rear, deck and inner door liner for easy cleaning.
- Superior heavy-duty door hinge.
- Side oven controls are protected in the cool zone.
- One chrome oven rack is included.
Convection Oven
- 35,000 BTU/hr. (10 KW) convection oven with 1/4 hp blower motor cooks products quickly and evenly with less shrinkage.
- Electronic ignition system with a single solenoid valve.
- Convection oven interior dimensions 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm).
- Three position switch for cooking or cool down. Fan shuts off automatically when door is open.
- 1/4 hp blower motor.
- Porcelainized sides, rear, deck and door lining for easy cleaning. Stainless steel door gasket.
- Burner “ON” indicator light and one hour manual timer.
- Three chrome oven racks included.
From The Manufacturer
Spec Series Heavy Duty Range, gas, 36"W, (2) open burners, cast iron "S" grates (standard), (2) 12"W hot tops, convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, manual controls, stainless steel front, sides, 7"D landing ledge, backguard, kick plate & door gasket, 6" legs with adjustable feet, 115,000 BTU, 34kW, 120v/1-ph, 6.0 amps, cETLus, NSF
