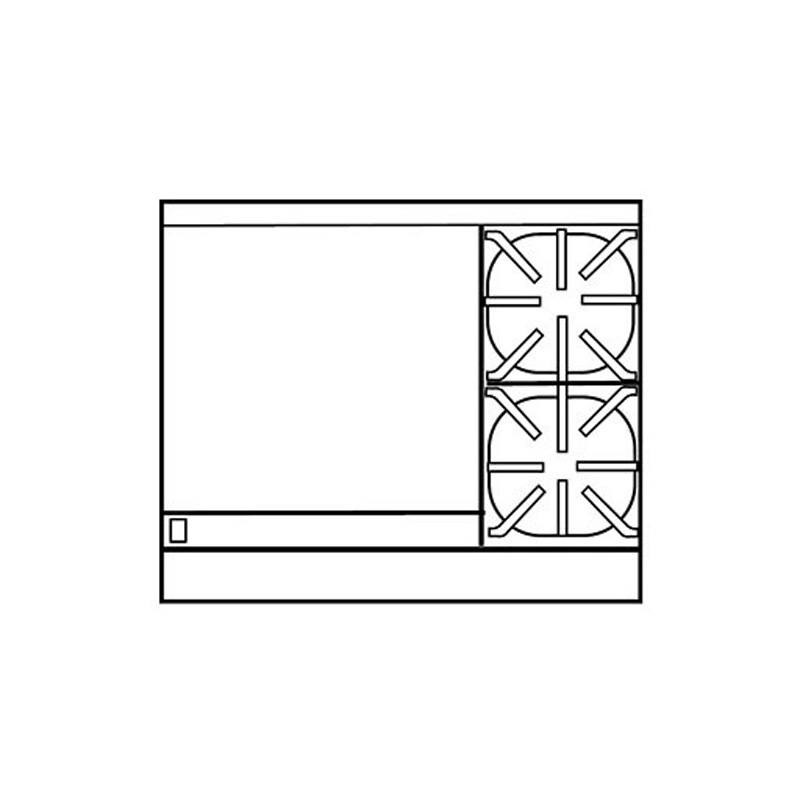

Imperial IHR-G24-2-C 36" Gas Heavy Duty Range w/ (2) Open Burners, 24" Griddle, (1) Convection Oven, 175.000 BTU

Imperial IHR-G24-2-C Features

Open Burners

• Anti-clogging burner is 21% more efficient than other manufacturers’ heavy duty burners.
• 35,000 BTU/hr. (10 KW) output with a 7,000 BTU/hr. (2 KW) low simmer feature.
• One-piece venturi base has no gaskets.Venturi slopes down to the burner creating more efficient heating.
• Cast-iron burners remove and separate for cleaning. All stainless steel pilot tubing and solid brass top burner valves for a long service life

Grates

• Wavy grates create more heat transfer. Heat convects in waves for continual heat-to-pan contact
• Grates measure 12" x 14" (305 x 356 mm) and 18" x 14" (457 x 356 mm) depending on model.
• Cast-iron design features flame shaping center tube for more efficient heat transfer.
• Anti-clogging shield designed into the grate protects the pilot from grease and debris.

Griddle Top

• Highly polished griddle plate provide even heat across entire surface.
• “U” shaped burners have 30,000 (9 KW) BTU output, located every 12" (305 mm) or 18" (457 mm) with one control per burner. Aeration baffles between burners for quick recovery.
• Manual or thermostatic controls are available.
• 4" (102 mm) wide grease gutter and large grease can with 1 gallon (3.8 L) capacity.

Standart Oven

• 40,000 BTU/hr (12 KW) oven with 100% safety pilot and manual shut-off valve.
• Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
• Exclusive heat deflector reflects heat into the oven, not the floor.
• Chef Depth interior is 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) and accommodates 18" x 26" (457 x 660) sheet pans left-to-right and front-to-back.
• Porcelainized sides, rear, deck and inner door liner for easy cleaning.
• Superior heavy-duty door hinge.
• Side oven controls are protected in the cool zone.
• One chrome oven rack is included.

Convection Oven

• 35,000 BTU/hr. (10 KW) convection oven with 1/4 hp blower motor cooks products quickly and evenly with less shrinkage.
• Electronic ignition system with a single solenoid valve.
• Convection oven interior dimensions 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm).
• Three position switch for cooking or cool down. Fan shuts off automatically when door is open.
• 1/4 hp blower motor.
• Porcelainized sides, rear, deck and door lining for easy cleaning. Stainless steel door gasket.
• Burner “ON” indicator light and one hour manual timer.
• Three chrome oven racks included.
