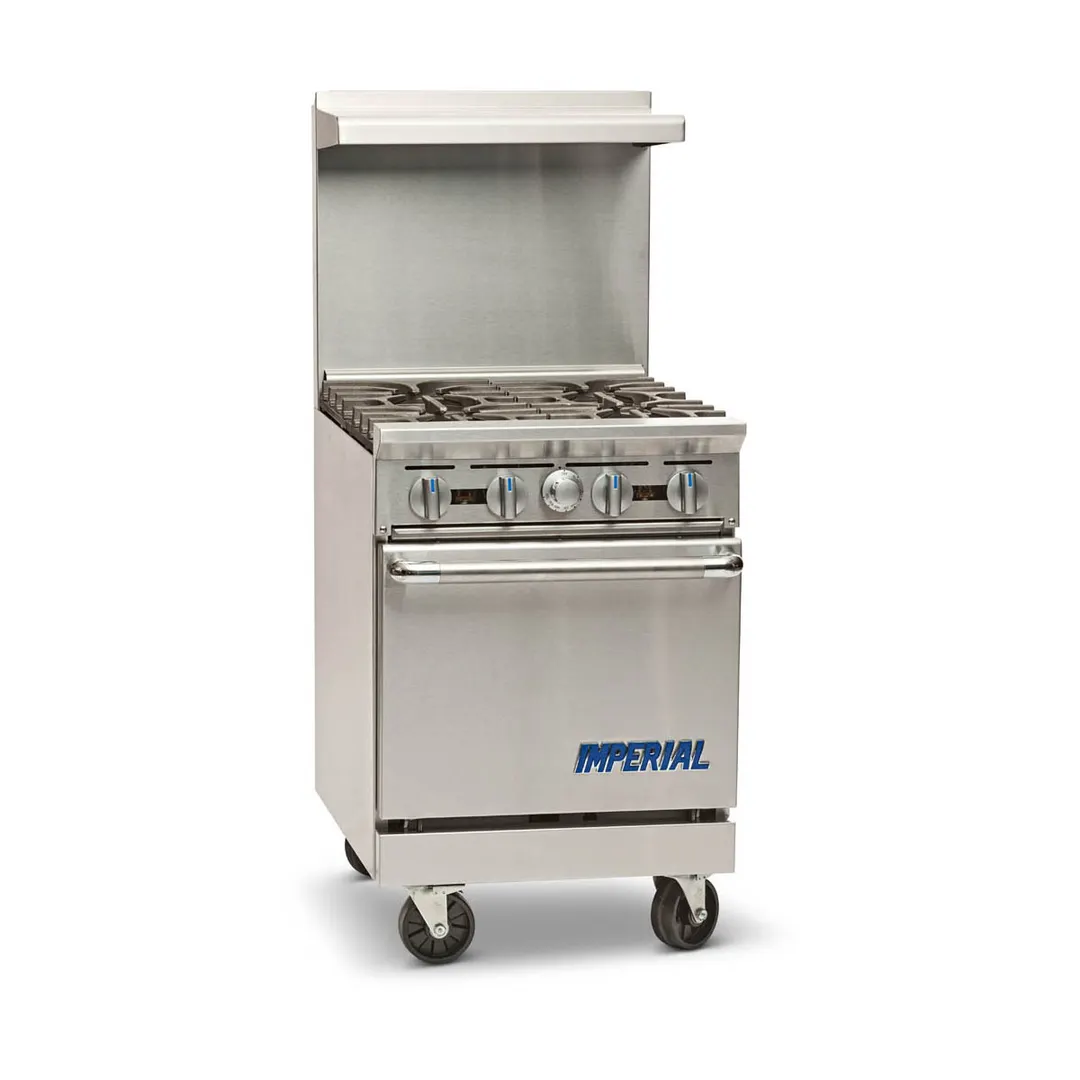

Imperial IR-4 24" Gas Restaurant Range w/ (4) Open Burners, (1) Space Saver Oven, 155.000 Btu
Space Saver Ovens
- Linear burner provides even heating throughout the oven.
- Space Saver output is 27,000 BTU (8KW)
- Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
- Exclusive heat deflector reflects heat into the oven, not the floor.100% safety pilot.
- Space Saver interior is 20” w x 26” d x 14” h (508 w x 660 d x 356 h mm) and accommodates 18” x 26” (457 x 660 mm) sheet pans left-to-right and front-to-back.
- Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
- Stamped inner door liner provides extra strength while optimizing heat retention.
- One chrome oven rack is included.
Griddle
- Highly polished 3/4” (19 mm) steel plate. 21” (533 mm) plate depth.
- Burners have 20,000 (6 KW) BTU/hr. output with a heat deflector every 12” (305) for even heating.
- 3” (76 mm) wide grease trough and removable grease can for easy cleaning.
- Large griddle grease can and full width broiler drip tray are removable for easy cleaning.
Open Burners
- PyroCentric™ 32,000 BTU (9 KW) anti-clogging burner with a 7,000 BTU/hr. (2 KW) low simmer feature. Two rings of flame for even heating.
- Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
- Cast iron PyroCentric burners are standard on all IR Series Ranges.
- One standing pilot per burner for instant ignition.
Grates
- Front grates measure 12” x 12” (305 x 279 mm). Back grates are 12” x 13” (305 x 330 mm).
- Back grates are sized for positioning large stock pots directly over burner and feature a hot air dam.
- Pots slide easily from section to section and onto landing ledge.
- Grates are cast iron for a long service life.
- All stainless steel upper burner box, top grate supports front and rear.
From The Manufacturer
Pro Series Restaurant Range, gas, 24"W, (4) open burners & standing pilot lights, cast iron grates, low simmer feature, (1) space saver oven, porcelain interior, (1) chrome rack, stainless steel front, sides, backguard, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 155,000 BTU, 45kW, NSF, CE, CSA Flame, CSA Star
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
