The Imperial IR-4-XB IR Series 24" Restaurant Ranges
Imperial IR-4-XB Features
Open Burners
- PyroCentric 32,000 BTU (9 KW) anti-clogging burner with a 7,000 BTU/hr. (2 KW) low simmer feature. Two rings of flame for even heating.
- Cast iron PyroCentric burners are standard on all IR Series Ranges.
- Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
- One standing pilot per burner for instant ignition.
Grates
- Front grates measure 12" x 11" (305 x 279 mm). Back grates are 12" x 13" (305 x 330 mm).
- Back grates are sized for positioning large stock pots directly over burner and feature a hot air dam.
- Pots slide easily from section to section and onto landing ledge.
- Grates are cast iron for a long service life.
Griddle
- Highly polished 3/4" (19 mm) steel plate. 21" (533 mm) plate depth.
- Burners have 20,000 (6 KW) BTU/hr. output with a heat deflector every 12" (305) for even heating.
- 3" (76 mm) wide grease trough and removable grease can for easy cleaning.
- Large griddle grease can and full width drip tray. Both remove for easy cleaning.
Standart Space Saver Oven
- Linear burner provides even heating throughout the 35,000 BTU (10 KW) oven.
- Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
- Exclusive heat deflector reflects heat into the oven, not the floor. 100% safety pilot.
- Interior is 20" w x 26" d x 14" h (508 w x 660 d x 356 h mm). Accommodates standard size sheet pans
- Porcelainized sides, rear, deck and door lining for easy cleaning. Heavy duty door hinge.
- Stamped inner door liner provides extra strength while optimizing heat retention.
- One chrome oven rack included.
From The Manufacturer

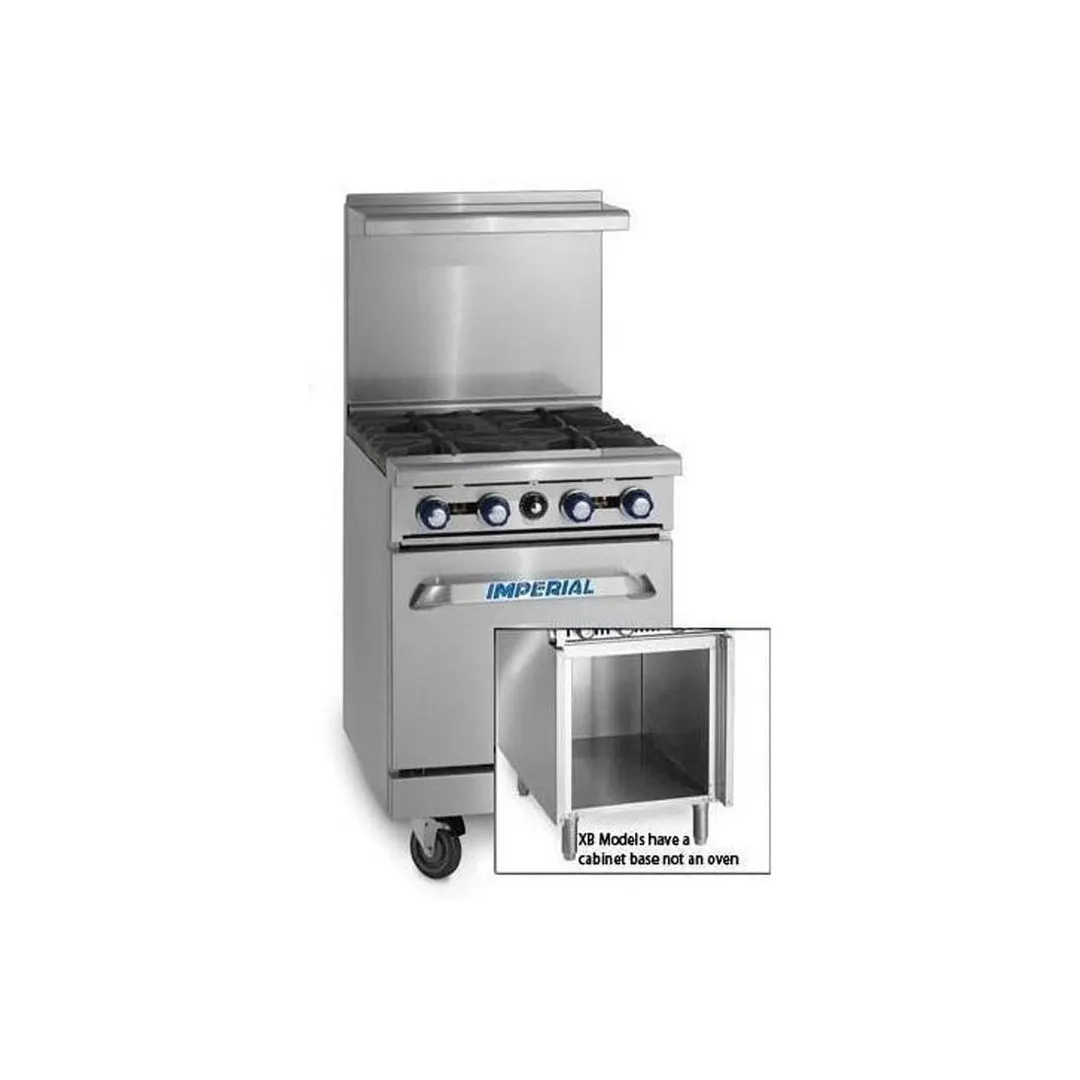

Pro Series Restaurant Range, gas, 24"W, (4) open burners & standing pilot lights, cast iron grates, low simmer feature, stainless steel front, sides, backguard & 3-1/2"D landing ledge, open cabinet base, bottom shelf, 6" legs with adjustable feet, 128,000 BTU, 38kW, NSF, CE, CSA Flame, CSA Star
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
