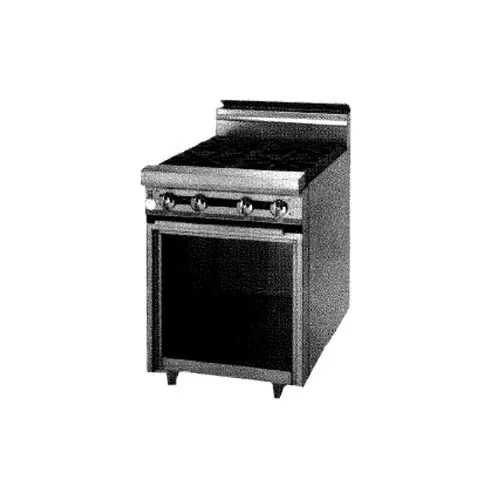

The Jade JTRH-12 Cabinet Base Open Burner Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-12 Standart Features

JTRH-12: 72" twelve open burners
Individual lift-off steel top grates
35,000 BTU/hr cast iron open burners
Variable size multi-point gas connection—see utility information for details
One stainless steel pilot per burner
14 gauge stainless steel all welded body construction
Stainless steel cabinet interior and exterior
Stainless steel gas tubing throughout
Stainless steel front, sides, stub back and bottom
Stainless steel 6" plate shelf
Stainless steel adjustable 6" legs
3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JTRH-12 Specification

Heavy duty cabinet base 12" section open burner range. To be model #JTRH manufactured by Jade Range. Each burner to have heavy duty cast iron grates. Provide with (35,000 BTU/hr.) open burners controlled by infinite gas valves. To have 14 gauge all welded body with stainless steel front, sides, back and bottom. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 72", (12) 12" 35,000 BTU open burners, cabinet base, stainless steel 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 420,000 BTU

Manufacturer	Jade
Model Number	JTRH-12
Weight	1000 lbs
Width	72″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	12 burners
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	burner
Exterior Finish	all stainless steel exterior
Top	(12) open burners
Total BTU	420,000
Burner BTU	35,000

	Jade JTRH-12 Gas 72" Heavy Duty Range w/ (12) Open Burners, (1) Cabinet Base, 420.000 BTU	Comstock-Castle F33033 72" Gas Restaurant Range w/ (12) Open Burners, (1) Standard Oven, (1) Cabinet Base, 354.000 BTU Free Shipping	Comstock-Castle 2F330 72" Gas Restaurant Range w/ (12) Open Burners, (2) Standard Ovens, 408.000 BTU Free Shipping	Jade JTRHE-6-6 72" Gas Heavy Duty Range, (12) Open Burners w/ (6) Step Up, Cabinet Base, 360.000 BTU	Jade JMRH-12G 12" Gas Heavy Duty Range w/ (12) Open Burners, Modular & Open Legs w/ Crossrails, 420.000 BTU	Jade JBR-12-3636C 72" Gas Restaurant Range w/ (12) Open Burners, (1) Standard Oven, (1) Convection Oven, 420.000 BTU	Jade JBR-12-3636 72" Gas Restaurant Range w/ (12) Open Burners, (2) Standard Ovens, 420.000 BTU	Jade JBR-12 72" Gas Restaurant Range w/ (12) Open Burners, (2) Cabinet Bases, 360.000 BTU	Royal Range of California RR-12-CC 72" Gas Restaurant Range w/ (12) Open Burners, (2) Convection Ovens, 420.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Vent	Vent-	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Vent-	Vent-	Ventstub back	Ventstub back	Ventstub back	Ventbackriser with hi-shelf
Oven BTU	Oven BTU-	Oven BTU30,000	Oven BTU30,000	Oven BTU-	Oven BTU-	Oven BTU30,000 & 30,000	Oven BTU30,000	Oven BTU-	Oven BTU30,000
Total BTU	Total BTU405.000 - 750.000	Total BTU405.000 - 750.000	Total BTU405.000 - 750.000	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU405.000 - 750.000	Total BTU405.000 - 750.000	Total BTU141.000 - 400.500	Total BTU405.000 - 750.000
Burner BTU	Burner BTU35,000	Burner BTU24,000 & 30,000	Burner BTU24,000 & 30,000	Burner BTU30,000 & 30,000	Burner BTU35,000	Burner BTU30,000	Burner BTU30,000	Burner BTU30,000	Burner BTU30,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72
Manufacturer	ManufacturerJade	ManufacturerComstock-Castle	ManufacturerComstock-Castle	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerRoyal Range of California
Top	Top(12) open burners	Top(12) open burners	Top(12) open burners	Top(6) open burners, (6) step-up open burners	Top(12) open burners	Top(12) open burners	Top(12) open burners	Top(12) open burners	Top(12) open burners
Base Type	Base Typecabinet/storage base	Base Typeoven & storage base	Base Typeoven base	Base Typecabinet/storage base	Base Typestand/legs	Base Typeoven base	Base Typeoven base	Base Typecabinet/storage base	Base Typeoven base
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front & sides	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range
Width	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"
Number of Burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners10 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners
Oven Type	Oven Type-	Oven Typestandard oven	Oven Typestandard oven	Oven Type-	Oven Type-	Oven Typestandard & convection oven	Oven Typestandard oven	Oven Type-	Oven Typeconvection oven
Number Of Ovens	Number Of Ovens-	Number Of Ovens1	Number Of Ovens2	Number Of Ovens-	Number Of Ovens-	Number Of Ovens2	Number Of Ovens2	Number Of Ovens-	Number Of Ovens2
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Certifications	Certifications-	Certifications-	Certifications-	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationscCSAus, CSA-Sanitation, Made in USA

Manufacturer	Jade
Model Number	JTRH-12
Weight	1000 lbs
Width	72″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	12 burners
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	burner
Exterior Finish	all stainless steel exterior
Top	(12) open burners
Total BTU	420,000
Burner BTU	35,000

	Jade JTRH-12 Gas 72" Heavy Duty Range w/ (12) Open Burners, (1) Cabinet Base, 420.000 BTU	Comstock-Castle F33033 72" Gas Restaurant Range w/ (12) Open Burners, (1) Standard Oven, (1) Cabinet Base, 354.000 BTU Free Shipping	Comstock-Castle 2F330 72" Gas Restaurant Range w/ (12) Open Burners, (2) Standard Ovens, 408.000 BTU Free Shipping	Jade JTRHE-6-6 72" Gas Heavy Duty Range, (12) Open Burners w/ (6) Step Up, Cabinet Base, 360.000 BTU	Jade JMRH-12G 12" Gas Heavy Duty Range w/ (12) Open Burners, Modular & Open Legs w/ Crossrails, 420.000 BTU	Jade JBR-12-3636C 72" Gas Restaurant Range w/ (12) Open Burners, (1) Standard Oven, (1) Convection Oven, 420.000 BTU	Jade JBR-12-3636 72" Gas Restaurant Range w/ (12) Open Burners, (2) Standard Ovens, 420.000 BTU	Jade JBR-12 72" Gas Restaurant Range w/ (12) Open Burners, (2) Cabinet Bases, 360.000 BTU	Royal Range of California RR-12-CC 72" Gas Restaurant Range w/ (12) Open Burners, (2) Convection Ovens, 420.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Vent	Vent-	Ventbackriser with hi-shelf	Ventbackriser with hi-shelf	Vent-	Vent-	Ventstub back	Ventstub back	Ventstub back	Ventbackriser with hi-shelf
Oven BTU	Oven BTU-	Oven BTU30,000	Oven BTU30,000	Oven BTU-	Oven BTU-	Oven BTU30,000 & 30,000	Oven BTU30,000	Oven BTU-	Oven BTU30,000
Total BTU	Total BTU405.000 - 750.000	Total BTU405.000 - 750.000	Total BTU405.000 - 750.000	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU405.000 - 750.000	Total BTU405.000 - 750.000	Total BTU141.000 - 400.500	Total BTU405.000 - 750.000
Burner BTU	Burner BTU35,000	Burner BTU24,000 & 30,000	Burner BTU24,000 & 30,000	Burner BTU30,000 & 30,000	Burner BTU35,000	Burner BTU30,000	Burner BTU30,000	Burner BTU30,000	Burner BTU30,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72	WIDTH (SIDE - SIDE)72
Manufacturer	ManufacturerJade	ManufacturerComstock-Castle	ManufacturerComstock-Castle	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerRoyal Range of California
Top	Top(12) open burners	Top(12) open burners	Top(12) open burners	Top(6) open burners, (6) step-up open burners	Top(12) open burners	Top(12) open burners	Top(12) open burners	Top(12) open burners	Top(12) open burners
Base Type	Base Typecabinet/storage base	Base Typeoven & storage base	Base Typeoven base	Base Typecabinet/storage base	Base Typestand/legs	Base Typeoven base	Base Typeoven base	Base Typecabinet/storage base	Base Typeoven base
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front & sides	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range	Range Typestandard duty/restaurant range
Width	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"	Width72"
Number of Burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners10 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners	Number of Burners12 burners
Oven Type	Oven Type-	Oven Typestandard oven	Oven Typestandard oven	Oven Type-	Oven Type-	Oven Typestandard & convection oven	Oven Typestandard oven	Oven Type-	Oven Typeconvection oven
Number Of Ovens	Number Of Ovens-	Number Of Ovens1	Number Of Ovens2	Number Of Ovens-	Number Of Ovens-	Number Of Ovens2	Number Of Ovens2	Number Of Ovens-	Number Of Ovens2
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Certifications	Certifications-	Certifications-	Certifications-	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationscCSAus, CSA-Sanitation, Made in USA

Jade JTRH-12 Gas 72" Heavy Duty Range w/ (12) Open Burners, (1) Cabinet Base, 420.000 BTU
