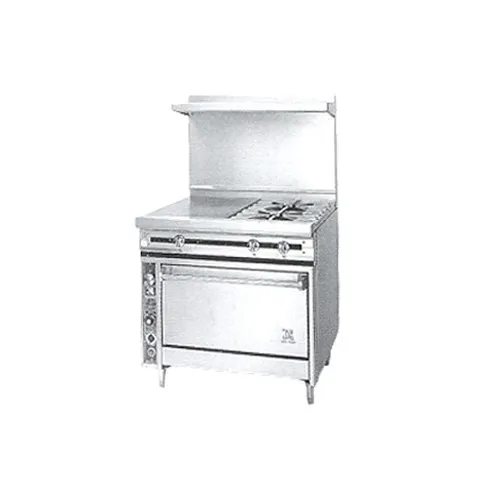

The Jade JTRH-2-1HT-36 36" Titan Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-2-1HT-36 Standart Features

Variable size multi-point gas connection—see utility information for details
Stainless steel oven interior (bottom and sides removable without tools on standard oven)
Two chrome plated oven racks (wires curled and welded around main frame with no sharp ends)
Oven control located in cool zone
One stainless steel pilot per burner
Stainless steel gas tubing throughout
Stainless steel front, sides and stub back
Stainless steel 6" plate shelf
Stainless steel adjustable 6" legs
Stainless steel tray bed

Jade JTRH-2-1HT-36 Specification

Heavy duty combination range, with oven below. To be model #JTRH manufactured by Jade Products, LLC. Open top section to have cast iron 35,000 BTU/hr. burners with individual lift-off steel top grates. Hot tops to have cast iron even heat top with one 35,000 BTU/hr. burner per section. Griddles are to have high polished 1" steel plate with (35,000 BTU/hr) (30,000 BTU/hr) burners controlled by infinite gas valves (thermostat). Split tops to have one piece cast iron top with open burner front polished hot top rear. Open burner to be 30,000 BTU/hr. Rear hot top burner to be 15,000 BTU/hr.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 36", (2) 18" 35,000 BTU open burners, (1) 18" 35,000 BTU hot top, infinite controls, standard oven, (2) chrome plated racks, stainless steel oven liner, 6" plate shelf, front, sides, stub back & tray bed, 6" adjustable legs, 140,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JTRH-2-1HT-36
Weight	675 lbs
Width	36″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Control Type	manual control
Top Configuration	burner & hot top
Exterior Finish	all stainless steel exterior
Top	(2) open burners, (1) 18" hot top
Certifications	NSF, CSAus
Total BTU	140,000
Burner BTU	35,000
Oven BTU	35,000

	Jade JTRH-2-1HT-36 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Hot Top, (1) Standard Oven, 140.000 BTU	Jade JTRH-2-1HT-36C 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Hot Top, (1) Convection Oven, 135.000 BTU	Montague Company 136-14E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Standard Oven, 140.000 BTU	Montague Company 136-14 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) French Top, Standard Oven, 135.000 BTU	Montague Company 136-11E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Standard Oven, 140.000 BTU	Jade JTRH-24IP-2-36 36" Gas Heavy Duty Range w/ (2) Open Burners, 24" Plancha Griddle, Standard Oven, 122.500 BTU	Jade JTRH-2-2HT-36 36" Gas Heavy Duty Range w/ (2) Open Burners, (2) Hot Tops, (1) Standard Oven, 175.000 BTU	Jade JTRH-18G-2-36 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle, (1) Standard Oven, 140.000 BTU	Montague Company V136-14E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Convection Oven, 140.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000	Burner BTU30,000	Burner BTU30,000	Burner BTU-	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU35,000	Griddle/Charbroiler BTU-
Certifications	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CE, cETLus	CertificationsNSF, CE, cETLus	CertificationsNSF, CE, cETLus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CE, cETLus
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerJade	ManufacturerJade	ManufacturerMontague Company	ManufacturerMontague Company	ManufacturerMontague Company	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerMontague Company
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front	Exterior Finishstainless steel front	Exterior Finishstainless steel front	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front
Top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 24" plancha	Top(2) open burners, (2) hot tops	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" hot top
Plate Thickness	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness.625" = 5/8"	Plate Thickness-	Plate Thickness1.000" = 1"	Plate Thickness-
Base Type	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners
Oven Type	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typeconvection oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & plancha top	Top Configurationburner & hot top	Top Configurationburner & griddle	Top Configurationburner & hot top
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Oven BTU	Oven BTU35,000	Oven BTU30,000	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU35,000	Oven BTU35,000	Oven BTU-	Oven BTU40,000

Manufacturer	Jade
Model Number	JTRH-2-1HT-36
Weight	675 lbs
Width	36″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Control Type	manual control
Top Configuration	burner & hot top
Exterior Finish	all stainless steel exterior
Top	(2) open burners, (1) 18" hot top
Certifications	NSF, CSAus
Total BTU	140,000
Burner BTU	35,000
Oven BTU	35,000

	Jade JTRH-2-1HT-36 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Hot Top, (1) Standard Oven, 140.000 BTU	Jade JTRH-2-1HT-36C 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Hot Top, (1) Convection Oven, 135.000 BTU	Montague Company 136-14E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Standard Oven, 140.000 BTU	Montague Company 136-14 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) French Top, Standard Oven, 135.000 BTU	Montague Company 136-11E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Standard Oven, 140.000 BTU	Jade JTRH-24IP-2-36 36" Gas Heavy Duty Range w/ (2) Open Burners, 24" Plancha Griddle, Standard Oven, 122.500 BTU	Jade JTRH-2-2HT-36 36" Gas Heavy Duty Range w/ (2) Open Burners, (2) Hot Tops, (1) Standard Oven, 175.000 BTU	Jade JTRH-18G-2-36 36" Gas Heavy Duty Range w/ (2) Open Burners, 18" Griddle, (1) Standard Oven, 140.000 BTU	Montague Company V136-14E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Convection Oven, 140.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000	Burner BTU30,000	Burner BTU30,000	Burner BTU-	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500
Griddle/Charbroiler BTU	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU-	Griddle/Charbroiler BTU35,000	Griddle/Charbroiler BTU-
Certifications	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CE, cETLus	CertificationsNSF, CE, cETLus	CertificationsNSF, CE, cETLus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CSAus	CertificationsNSF, CE, cETLus
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerJade	ManufacturerJade	ManufacturerMontague Company	ManufacturerMontague Company	ManufacturerMontague Company	ManufacturerJade	ManufacturerJade	ManufacturerJade	ManufacturerMontague Company
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front	Exterior Finishstainless steel front	Exterior Finishstainless steel front	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishstainless steel front
Top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 24" plancha	Top(2) open burners, (2) hot tops	Top(2) open burners, (1) 18" griddle	Top(2) open burners, (1) 18" hot top
Plate Thickness	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness.625" = 5/8"	Plate Thickness-	Plate Thickness1.000" = 1"	Plate Thickness-
Base Type	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"	Width36"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners
Oven Type	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typeconvection oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & plancha top	Top Configurationburner & hot top	Top Configurationburner & griddle	Top Configurationburner & hot top
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control
Oven BTU	Oven BTU35,000	Oven BTU30,000	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU35,000	Oven BTU35,000	Oven BTU-	Oven BTU40,000

Jade JTRH-2-1HT-36 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Hot Top, (1) Standard Oven, 140.000 BTU
