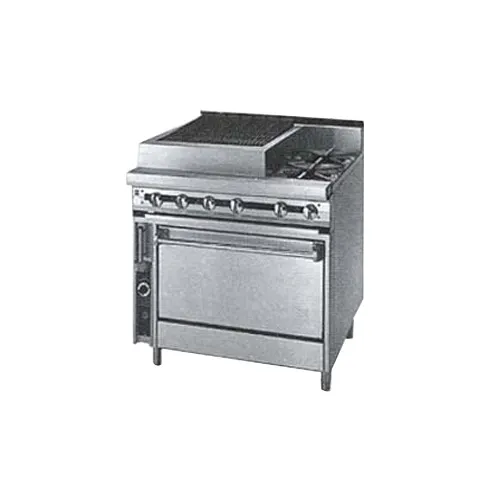

Jade JTRH-24B-12WT36C 36" Gas Heavy Duty Range w/ 24" Charbroiler, 12" Work Top, Convection Oven, 90.000 BTU

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-24B-12WT36C Standart Features

• JTRH-24B-12WT36C: 24" broiler/12" work top with convection oven
• Variable size multi-point gas connection—see utility information for details
• Heavy duty cast iron top grates with built-in grease guides that channel away excess fat and
• One 15,000 BTU/hr. burner every 6" broiler
• Infinite control manual gas valves at each burner for precise heat control
• Heavy duty cast iron burner radiants
• 12 gauge all welded firebox construction
• Two separate 14 gauge steel drip pans to control flare ups
• Stainless steel 6" plate shelf
• Stainless steel front and stub back
• 14 gauge all welded body construction
• Stainless steel removable oven interior
• Stainless steel gas tubing throughout
• Stainless steel pilot tips
• Stainless steel adjustable 6" legs
• Stainless steel tray bed
• 3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JTRH-24B-12WT36C Specification

Charbroiler range. To be model #JTRH manufactured by Jade Range. Furnished with 14 gauge all welded body construction and stainless steel front, top, sides and high riser. Provide with heavy duty cast iron top grates and burner radiants. To have one individually controlled 15,000 BTU/hr. burner for every 6" of broiler. Provide 12 gauge firebox with all welded construction. Furnish two separate 14 gauge drip pans. To have 6" stainless steel adjustable legs. Open top sections to have 35,000 BTU/hr. cast iron burners. Hot Tops to have cast iron even heat top with one 35,000 BTU/hr. burner per section. French Tops to have 35,000 BTU/hr. cast iron burner
