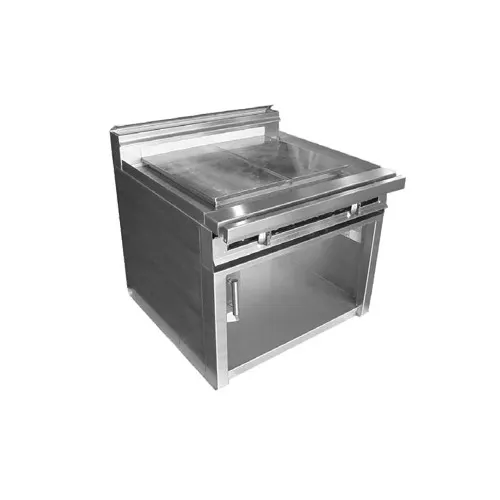

Jade TITAN Plancha

STANDARD FEATURES

Polished 5/8" thick steel plancha plate
14 gauge stainless steel grease trough
14 gauge stainless steel side and rear splash guards
Variable size multi-point gas connection—see utility information for details
Stainless steel oven interior (bottom and sides removable without tools on standard oven)
Two chrome plated oven racks (wires curled and welded around main frame with no sharp ends)
Oven control located in cool zone
Stainless steel gas tubing throughout
Stainless steel front, sides and stub back
Stainless steel 6" plate shelf
Stainless steel adjustable 6" legs
3/4" gas regulator (shipped loose, must be installed for proper operation)

DESCRIPTION

Heavy Duty plancha range, with oven below. To be model #JTRH manufactured by Jade Range LLC. Furnished with polished 5/8” thick steel plancha plate, variable size multi-point gas connection, 14 gauge stainless steel grease trough, stainless steel oven interior, two chrome plated oven racks, oven control located in cool zone, stainless steel gas tubing throughout, stainless steel front, sides and stub back, stainless steel 6” plate shelf, stainless steel adjustable 6” legs

From The Manufacturer

Titan™ Heavy Duty Range, gas, 36", even heat plancha, 5/8" thick, infinite controls, 4-sided trough with Island style plate, standard oven, (2) chrome plated racks, stainless steel oven liner, grease trough, 6" plate shelf, front, sides & stub back, 6" adjustable legs, 70,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JTRH-36IP-36
Weight	790 lbs
Width	36″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Control Type	manual control
Top Configuration	plancha top
Plate Thickness	.625" = 5/8"
Exterior Finish	all stainless steel exterior
Top	(1) plancha griddle
Certifications	NSF, CSAus
Total BTU	70,000
Oven BTU	35,000
Griddle/Charbroiler Location	full surface
