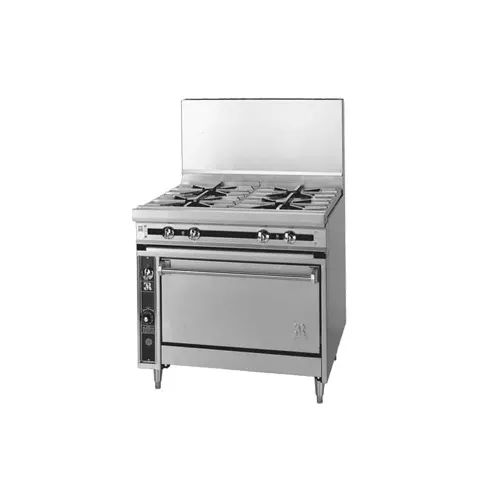

Jade JTRH-4-30C 30"Gas Heavy Duty Range w/ (4) Open Burners, Space Saver Convection Oven, 170.000 BTU

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-4-30C Standart Features

• JTRH-4-30C: 4 OPEN BURNERS WITH "SPACE SAVER" CONVECTIN OVEN
• Four individual lift-off steel top grates
• Four 35,000 BTU/hr cast iron open burners
• Variable size multi-point gas connection—see utility information for details
• One stainless steel pilot per burner
• 14 gauge all welded body construction
• Stainless steel oven interior (bottom and sides removable without tools on standard oven)
• Two chrome plated oven racks (wires curled and welded around main frame with no sharp ends)
• Oven control located in cool zone
• Oven accommodates full-size sheet pans. *30C, convection oven does not accommodate full-size sheet pans.
• Stainless steel gas tubing throughout
• Stainless steel front, sides and stub back
• Stainless steel adjustable 6" legs
• Stainless steel tray bed
• Stainless steel 6" plate shelf
• 3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JTRH-4-30C Specification

Heavy duty open burner range, with oven below. To be model #JTRH-4-30 manufactured by Jade Range. Provided with four 15” x 14” steel top grates. To have four 35,000 BTU/hr. cast iron open top burners controlled by infinite gas valves. One spill pan below all burners. To have 14 gauge all welded body with stainless steel front and sides. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs. To have conventional oven base with stainless steel lining. Oven sides and bottom to be removable without tools. Provide with two oven racks, with wires curled around main frame and chrome plated. Thermostat to adjust from 150°F to 550°F with 35,000 BTU burner. Oven interior 22-1/4" W x 14" H x 27-3/4" D.
