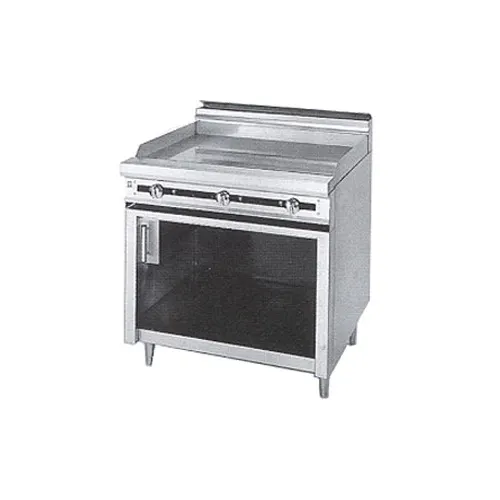

The Jade JTRH-48GT Cabinet Base Griddle Top Range

Why Use Jade Titan Series?

Each Titan Heavy-Duty range features a hand-crafted, solid, all-welded frame for incredible strength & durability. All materials used in the production of Jade Titan™ Ranges are chosen to achieve the longest lifespan, allowing Jade Range to offer a 2-year parts and labor warranty within the US & Canada.

Jade JTRH-48GT Standart Features

JTRH-48GT: 48" griddle top section thermostat control
Polished 1" thick steel griddle plates
Variable size multi-point gas connection—see utility information for details
14 gauge stainless steel grease trough
14 gauge stainless side and rear splash
Stainless steel cabinet interior and exterior
Stainless steel front, sides, stub back, and bottom
Stainless steel 6" plate shelf
Stainless steel adjustable 6" legs
3/4" gas regulator (shipped loose, must be installed for proper operation)

Jade JTRH-48GT Specification

Heavy duty cabinet base 12" section open burner range. To be model #JTRH manufactured by Jade Range. Each burner to have heavy duty cast iron grates. Provide with (35,000 BTU/hr.) open burners controlled by infinite gas valves. To have 14 gauge all welded body with stainless steel front, sides, back and bottom. All gas tubing to be stainless steel throughout. To have 6" stainless steel adjustable legs.

From The Manufacturer

Titan™ Heavy Duty Range, gas, 48", griddle, 1" thick polished steel plate, thermostatic controls, cabinet base, stainless steel grease trough, splashguards, 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 120,000 BTU, CSAus, NSF

Manufacturer	Jade
Model Number	JTRH-48GT
Weight	705 lbs
Width	48″
Depth	38″
Height	36.5″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	cabinet/storage base
Control Type	thermostatic control
Top Configuration	griddle
Plate Thickness	1.000" = 1"
Exterior Finish	all stainless steel exterior
Top	(1) griddle with thermostat
Certifications	NSF, CSAus
Total BTU	120,000
Griddle/Charbroiler BTU	30,000
Griddle/Charbroiler Location	full surface
