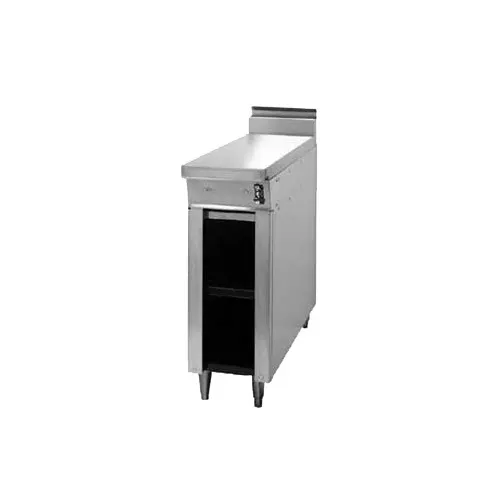

Montague Company 12-S 12" Gas Heavy Duty Range w/ (1) Work Top, Open Cabinet Base

Overview

The product is a 12” (305mm) wide heavy-duty gas-fired Add-A-Unit offered in a wide variety of tops to enhance your Montague Cooking Battery. These units match all Montague Legend Series Heavy-Duty Ranges; with stainless steel front, black painted sides and back or stainless steel modular stand, 4” (102mm) high flue riser and 3” (76mm) deep front rail standard. *This model is 1-12” (305mm) Stainless Steel Work Top.

Cabinet Base Construction Features

• Cabinet base with sides, back panel and two shelves
• Satin finish stainless steel front with 3” (76mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Even heat hot tops (“E” denotes even heat on hot tops)
• Gradient heat hot tops (“G” denotes front fired gradient heat on hot tops)
• 3/4” (19mm) thick frytops, manual control
• 30,000 BTU/hr open burners
• Stainless steel 4” (102mm) rear flue riser standard
• 6” (152mm) adjustable stainless steel legs standard
• 1-1/4” NPT front gas manifold with 1/2 union on each end

Modular Stand Construction Features

• Satin finish stainless steel front with 3” (76mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Even heat hot tops (“E” denotes even heat on hot tops)
• Gradient heat hot tops (“G” denotes front fired gradient heat on hot tops)
• 3/4” (19mm) thick frytops, manual control
• 30,000 BTU/hr open burners
• Stainless steel 4” (102mm) rear flue riser standard
• 28” (711mm) high modular stand with stainless steel tubular legs with adjustable bullet feet
• 1-1/4” NPT front gas manifold with 1/2 union on each end

Montague Company 12-S Specifications

• Burners : 0
• BTU/hr (kW) : 0
• Shipping Weight: 190 lbs (86 kg)
• Other Details : See spec. sheet
