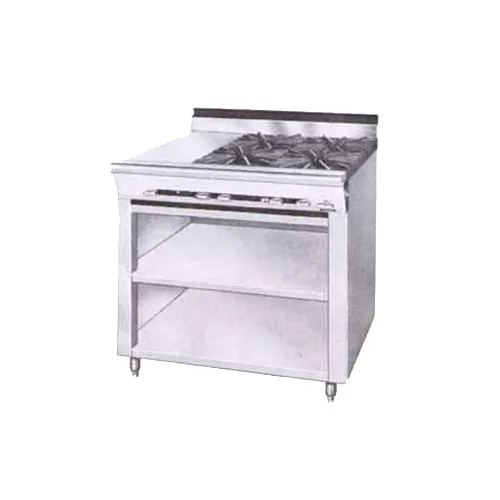

Montague Company 36-4E 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Even Heat Hot Top, Open Cabinet Base, 140.000 BTU

Overview

The 36-4E,(1) 12" even heat hot top (L), (4) 12" 30,000 BTU open burners (R), open cabinet base with stainless steel front & 4" flue riser, black sides, black intermediate & bottom shelves, 6" high adjustable stainless steel legs, 140,000 BTU, cETLus, CE.

Hot Tops

• Two 12” wide x 31” deep (305 x 787mm)
• Positioned left
• Heavy-duty cast iron precision-ground plate
• Cast iron EVEN HEAT 20,000 BTU/hr burner
• Heat transfer studs cast in plate bottom
• 2” (51mm) side and front flange isolate heat under plate
• Insulating partition between top sections

Open Burner Top

• One 12” wide x 31” deep (305 x 787mm)
• Positioned on right
• Heavily ribbed cast iron, surface-ground top grate
• Two large diameter 30,000 BTU/hr lift off star burners with raised ports
• Automatic, standing pilots
• Drip pan positioned under open burners

Montague Company 36-4E Standard Features

• Choice of countertop unit or free-standing range with base options including modular stand, open cabinet base, or oven
• Angle-iron construction provides exceptional structural strength to stand the test of time
• Stainless-steel front
• Stainless-steel 4″ (10.2cm) flue risers
• Painted surfaces are electrolytic zinc coated for superior corrosion protection and long life
• Designed for quick installation
• Easy to clean

Montague Company 36-4E Specifications

• Base Style/Type : With Cabinet Base
• Burners : 5
• BTU/hr (kW) : 140,000 (41)
• Shipping Weight: 380 lbs (172 kg)
• Other Details : See spec. sheet
