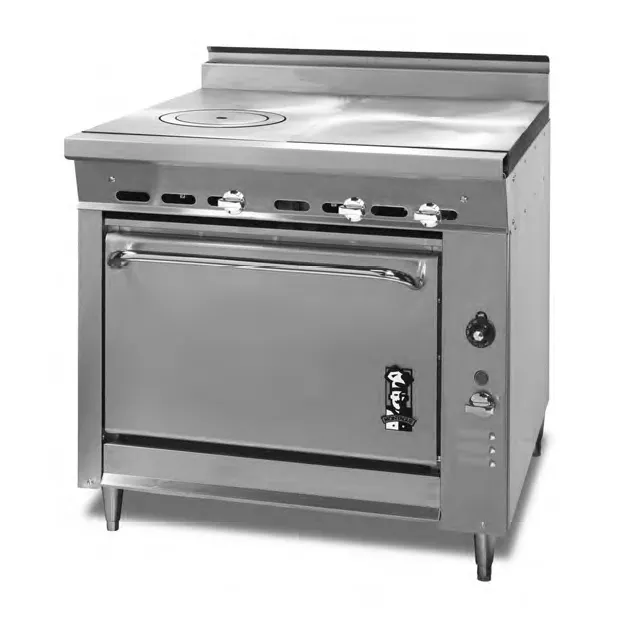

Montague Company M36-16 36" Gas Heavy Duty Range w/ (1) French Top, (1) Even Heat Hot Top, Modular Stand Base, 75.000 BTU

Overview

The M36-16, (1) 18" ring/cover hot top (L), (1) 18" even heat hot top (R), stainless steel front & 4" flue riser, black sides, stainless steel modular stand with undershelf & tubular legs, 75,000 BTU, cETLus, CE.*This product has 28” (711mm) high modular stand with stainless steel tubular legs.

French-Type Hot Top

• One 18” wide x 31” deep (457 x 787mm)
• Positioned left
• Heavy-duty cast iron precision-ground plate
• Front-positioned removable ring & cover
• Front-fired, banjo-type 35,000 BTU/hr burner
• Heat transfer studs cast in plate bottom
• 2” (51mm) side and front flanges isolate heat under plate
• Insulating partition between top sections
• Sloped, brick-lined flues for better heat transfer
• Drip pan positioned under burners

Even Heat Hot Top

• One 18” wide x 37” deep (457 x 787mm)
• Positioned on right
• Heavy-duty cast iron precision ground plate
• Two cast iron, Even Heat 20,000 BTU/hr burners
• Heat transfer studs cast in plate bottom
• 2” (51mm) side and front flanges isolate heat under plate
• Insulating partition between top sections

Montague Company M36-16 Standard Features

• Satin finish stainless steel front and exterior bottom with 3” (76mm) deep front rail
• Other surfaces painted black with electrolytic zinc undercoating
• Stainless steel 4” (102mm) rear flue riser standard
• 6” (152mm) adjustable stainless steel legs standard (Except M36-16 Model)
• 28” (711mm) stainless steel tubular legs standard with M36-16 Model
• Cabinet base with sides, back panel and two shelves on 36-16 Model
• 1-1/4” NPT front gas manifold with 1/2 union on each end

Montague Company M36-16 Specifications

• Base Style/Type : With Modular Stand
• Burners : 3
• BTU/hr (kW) : 75,000 (22.0)
• Shipping Weight: 360 lbs (163 kg)
• Other Details : See spec. sheet
