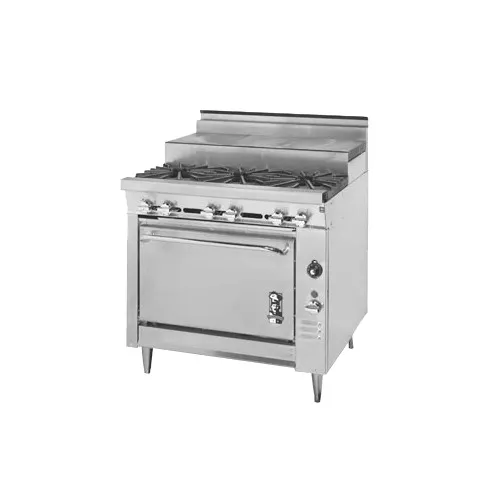

Montague Company V136-559S 36" Gas Heavy Duty Range w/ (3) Open Burners, (3) Hot Tops w/ Step-Up, Convection Oven, 175.000 BTU

Overview

The V136-559S, (3) 12" 30,000 BTU open burners, (3) 12" step-up hot tops, convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 175,000 BTU, cETLus, CE.*The product includes indirect-fired 40,000 BTU/hr convection oven with counterweighted door, porcelainized steel interior, five-position rack guides and three wire pan racks standard.

Combination Open/Hot Burner Tops

• Three 12” wide x 15-1/2” deep (305 x 394mm)
• Heavily ribbed cast iron, surface-ground top grates
• Large diameter 30,000 BTU/hr lift off star burners with raised ports in front
• Solid hot top in back with 15,000 BTU/hr burner
• Automatic, standing pilots
• Drip pan positioned under open burners

Montague Company V136-559S Standard Features

• 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381mm) cooking compartment
• Muffled, indirect fired design with blower, for fast even cooking
• Heavy duty counterweighted oven door — no springs
• Five position adjustable nickel-plated rack supports, with three racks standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
• 6’ (1829mm) cord with 3-prong plug (grounding NEMA 5-15P)

Montague Company V136-559S Specifications

• Base Style/Type : With Convection Oven
• Burners : 7
• BTU/hr (kW) : 175,000 (51.3)
• Shipping Weight: 600 lbs (272 kg)
• Other Details : See spec. sheet
