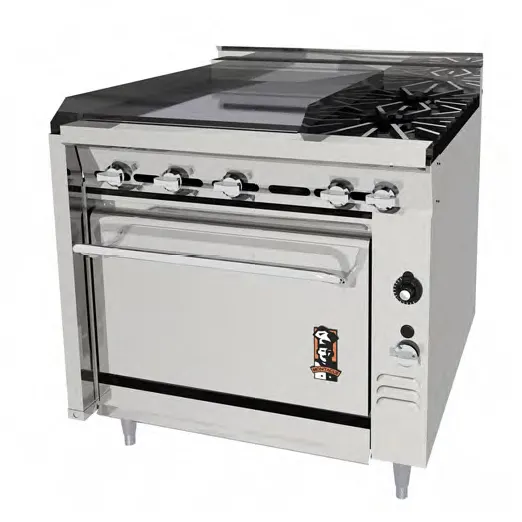

Montague Company V136-7PL 36" Gas Heavy Duty Range w/ (2) Open Burners, 24" Plancha Griddle, Convection Oven, 135.000 BTU

Overview

The V136-7PL,(1) 24" plancha top (L), 3/4" thick, manual control, (2) 30,000 BTU open burners (R), convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 130,000 BTU, cETLus, CE. *The product includes indirect-fired 40,000 BTU/hr convection oven with counterweighted door, porcelainized steel interior, five-position rack guides and three wire pan racks standard.

Plancha [Spanish Griddle] Top

• One 19” wide x 25” deep (483 x 635mm)
• Positioned left
• 3/4” (19mm) thick precision-ground steel raised cook surface
• Full perimeter grease trough
• Two-quart hanging grease receptacle
• Two 15,000 BTU/hr burners with standing pilots
• Individual gas control valves for zoned heating

Open Burner Tops

• Two 12” wide x 31” deep (305 x 787mm)
• Positioned on right
• Heavily ribbed cast iron, surface-ground top grates
• Four large diameter 30,000 BTU/hr lift off gas star burners with raised ports
• Automatic, standing pilots
• Drip pan positioned under open burners

Montague Company V136-7PL Standard Features

• 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381mm) cooking compartment
• Muffled, indirect fired design with blower, for fast even cooking
• Heavy duty counterweighted oven door — no springs
• Five position adjustable nickel-plated rack supports, with three racks standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
• 6’ (1829mm) cord with 3-prong plug (grounding NEMA 5-15P)

Montague Company V136-7PL Specifications

• Base Style/Type : With Convection Oven
• Burners : 5
• BTU/hr (kW) : 130,000 (38.1)
• Shipping Weight: 660 lbs (299 kg)
• Other Details : See spec. sheet
