Name: Jet-Tech F-16DP 20" Door Type Undercounter Glasswasher, High Temp - 864 Glass/Hr -208/240V
Brand: Jet-Tech
SKU: MVP-F-16DP
Price: 3442.4 USD
Availability: InStock

The Jet-Tech F-16DP High-Temp Undercounter Cup & GlassWasher

Jet-Tech F-16DP Construction Features

Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
Noise 58 dBa due to utilization of double-wall insulated panels
Deep drawn inner wash chamber provide for maximum sanitation
Upper and lower wash and rinse revolving arms constructed of stainless steel; easy to remove and clean without the need for tools
Intergrated AISI 18/10 stainless steel booster with insulated lining
Safety micro-switch on the door to interrupt wash pump action
Independently-operated heating elements alternating between booster and wash tank
Alternating heating elements reducing maximum absorption thereby reducing energy costs

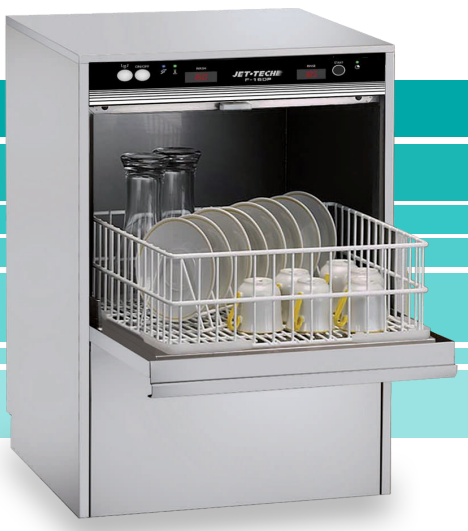

The Jet-Tech F-18DP High-Temp Undercounter Dishwasher, Chef's Deal

Possibility of built-in or free-standing instalation
Standard insulated top and side panels
Wash pump protected with filter plus additional filter for overflow tube
Door-opening with overall clearance of 10” (25 cm)
Protective stainless steel shield for wash tank element
Automatic fill and water level reguation of the wash tank
Slide out intergrated front control panel provides easy access for service
Individual digital gauges for both wash and rinse temperatures

Jet-Tech F-16DP Technical Features

Rack capacity: 15.75” x 15.75” (400 mm x 400 mm)
Complete operating cycle: 145 seconds wash and 15 seconds rinse
Wash tank capacity: 3.0 U.S. gallons (11 litres)
Wash tank element: 2000 watts
Wash temperature: 150°F (65°C)
Booster capacity: 0.79 U.S. gallons (3 litres)
Booster element: 2400 watts
Booster (water) temperature: 185°F - 194°F (85°C - 90°C)
Power supply: 208-240/60/1
Amperage: 12.9 amps
Maximum power rating: 2600 watts
Water consumption: 0.53 U.S. gallons per cycle (2 litres)
Water consumption per hour: 15 U.S. gallons (56.7 litres max.)
Water supply: 1/2“ hot water supply 140°F / 60°C
Recommended pressure: 30 p.s.i. (dynamic) (PRV may be required)
Water inlet connection: 3/4“ male hose connector (hose included)
Drain connection: 1” ID (25.4 mm) Max. height 36” (915 mm) (hose included)
Shipping weight: 116 lbs (53 kg)

From The Manufacturer

Jet-Tech Glasswasher, undercounter, door type, 20-1/4"W x 20-1/4"D x 29-3/4"H, double-wall stainless steel construction, high temperature with built-in electric booster, fully automatic, (24) racks/hr, 10" maximum glass height, integrated front control panel with analog temperature gauges, built-in detergent & rinse additive pump, built-in auto-drain pump, automatic fill, includes:(1) flat 16" x 16" rack & (1) 16" x 16" (16) compartment angled glassware rack, 2.4 kW booster heater, 1/2 HP wash pump, cETLus, ETL-Sanitation, ENERGY STAR®

Manufacturer	Jet-Tech
Model Number	F-16DP
Weight	116 lbs
Depth	20.25
Height	29.5
Energy Efficiency	ENERGY STAR®
Width	20.25
Temperature	high temp with booster
Construction	stainless steel
Width (side - side) OA	20" (and under)
Rack Size	16" x 16"
Installation Type	undercounter
Direction	straight in
Cabinet base	fully enclosed
Rack Per Hour (approx)	24 racks per hr
Certifications	ENERGY STAR
Voltage	208/240
Phase	1
Drain Type	pump drain system
Number Of Wash Cycle	1
Water Consumption(Approx)	15 Gallons Per Hour
Dishwasher Type	Glasswasher Only
Operating Mode	door type
