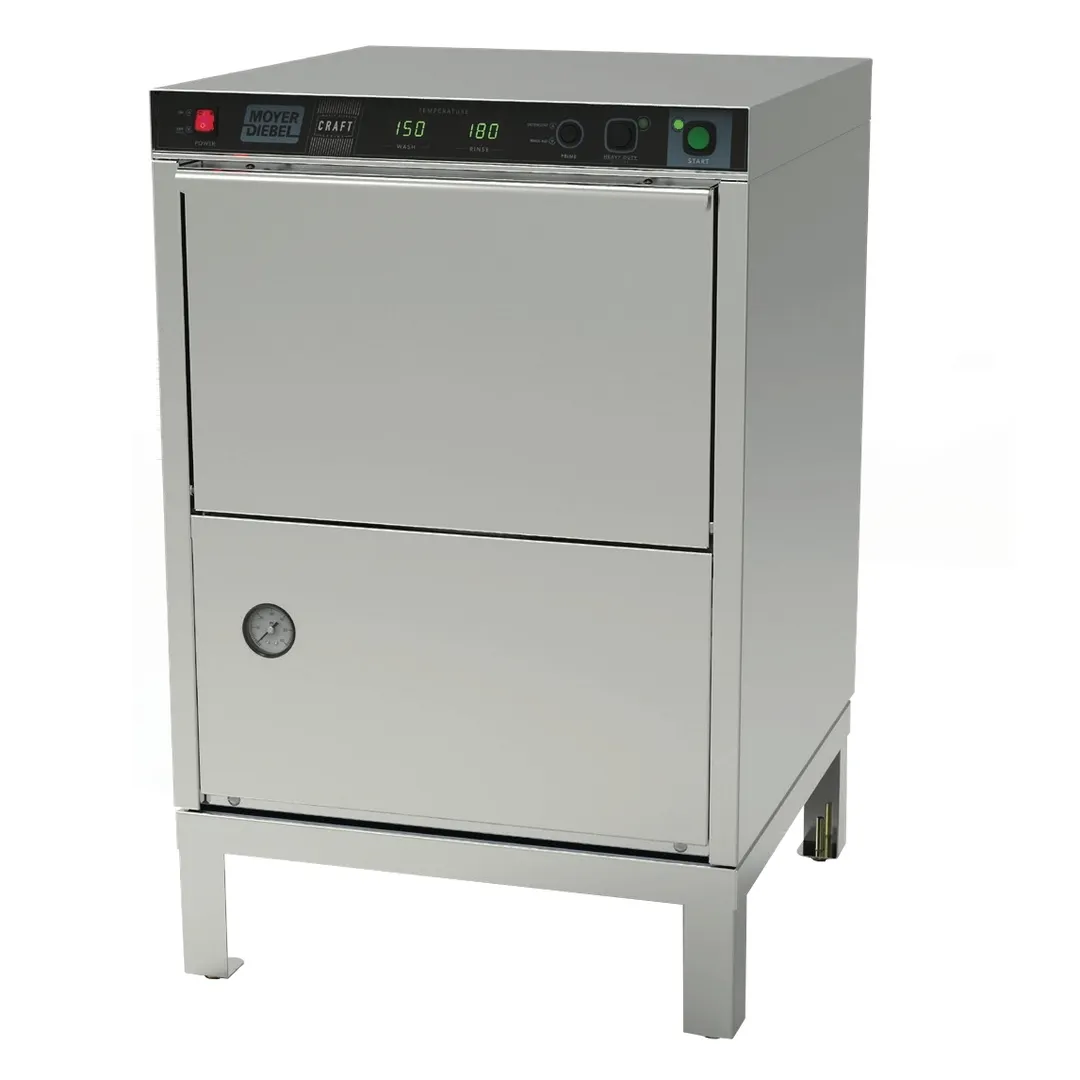

Name: Moyer Diebel 601HTG70 24" Door Type Undercounter Glasswasher, High Temp - 25 Racks/Hr -208/240V
Brand: Moyer Diebel
SKU: MYD-601HTG70
Price: 7040 USD
Availability: InStock

Moyer Diebel 601HTG70 Undercounter High Temperature Glasswasher with Built-in Booster

General Info

Specified unit will be the Moyer Diebel model 601HTG undercounter high temperature glasswasher at 29-5/8" standard height with built-in booster.

Moyer Diebel 601HTG70 Features

Features include a 7-1/4" height stand, 12-1/8” door opening, builtin 6kW booster, 2 kW tank heater, LED temperature display, Rinse Sentry, rinse aid and detergent pumps, flexible fill and drain hoses as well as an auto-clean cycle which flushes tank interior at shutdown.

Moyer Diebel 601HTG70 Specifications

Uncrated Dimensions (HxWxD) :33-3/4" [860] x 24" [610] x 24" [610]
Crated Dimensions (HxWxD) :39-1/2" [1003] x 25" [635] x 25-1/2" [647]
Uncrated Ship Wt. lbs/kg :178/79
Crated Ship Wt. lbs/kg :198/90
Capacities :
- *Racks per hr. : 25
Motor horsepower : 1 HP
Water Consumption :
- U.S. gal per hr (max use) : 39
- U.S. gal per rack : 1,8
Temperatures °F :
- Wash (minimum) : 150
- Rinse (minimum) : 180
Heating
- Tank heat, electric (kW) : 2
- Electric booster : 6/9
Other Details :See spec. sheet

From The Manufacturer

Craft Series Glasswasher, undercounter, 24"W, high temperature, fresh water sanitized with built-in electric booster heater for 70° rise, 6 kW booster heater, approximately (25) racks/hour capacity,12-1/8"H door clearance, 2 kW tank heater, Soft Start, dedicated rinse arms, built-in detergent & rinse-aid dispensing pumps, auto-clean cycle flushes tank at shutdown, delime feature, heavy duty cycle, microprocessor controls, digital LED temperature display, advanced service diagnostics, counter balanced door, pumped drain, includes (1) flat & (1) peg rack, stainless steel construction, front leveling feet, 1 HP wash pump, cETLus, NSF

Manufacturer	Moyer Diebel
Model Number	601HTG-70
Weight	198 lbs
Width	24″
Depth	24″
Height	37.25″
Installation Type	undercounter
Operation Type	door type
Temperature	high temp with booster
Dishwasher Type	Glasswasher Only
Direction	straight in
Construction	stainless steel
Width (side - side) OA	21" - 30"
Rack Size	20" x 20"
Cabinet base	fully enclosed
Rack Per Hour (approx)	25 racks per hr
Voltage	208/240
Drain Type	pump drain system
Number Of Wash Cycle	1
Phase	1, 3
Water Consumption(Approx)	39 Gallons Per Hour
