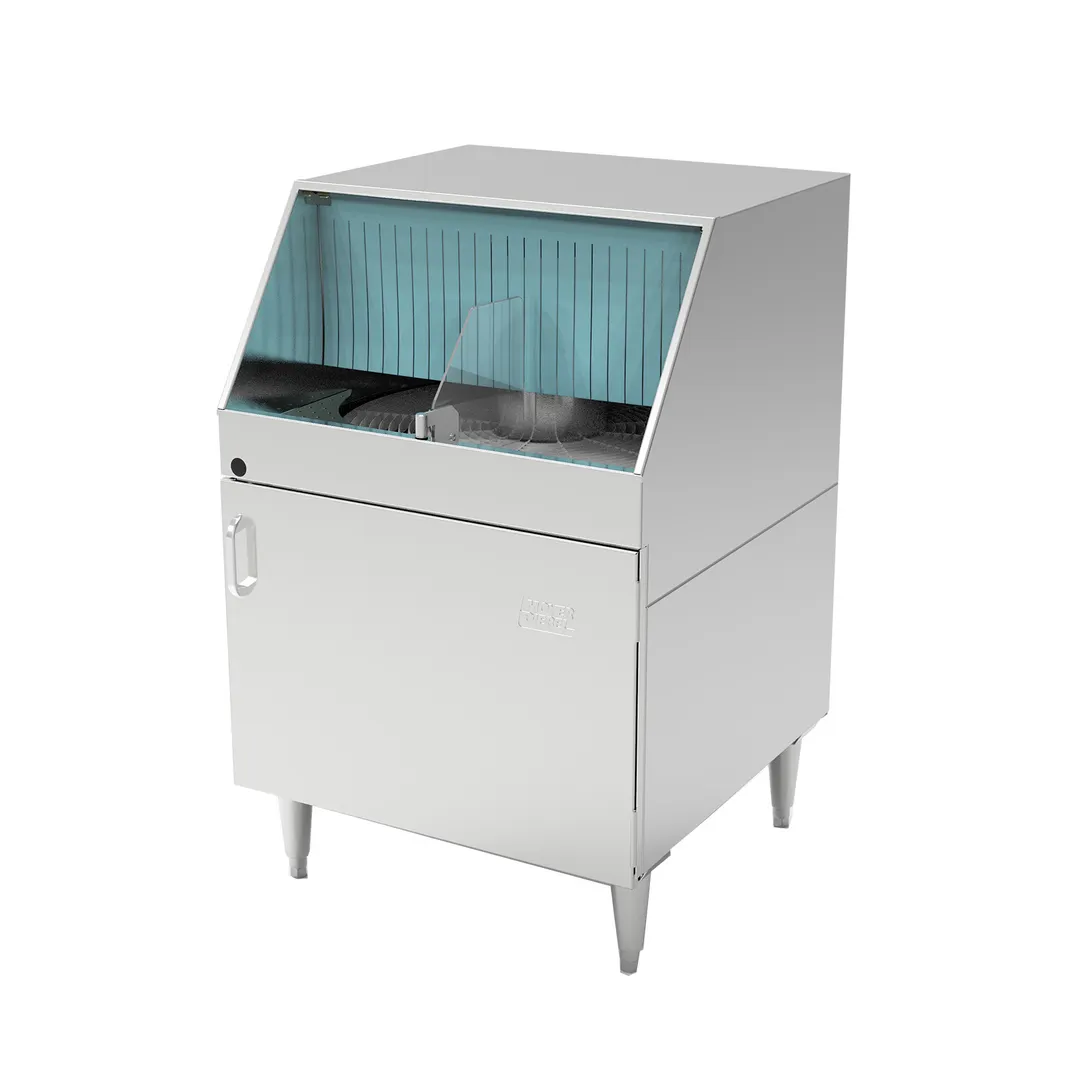

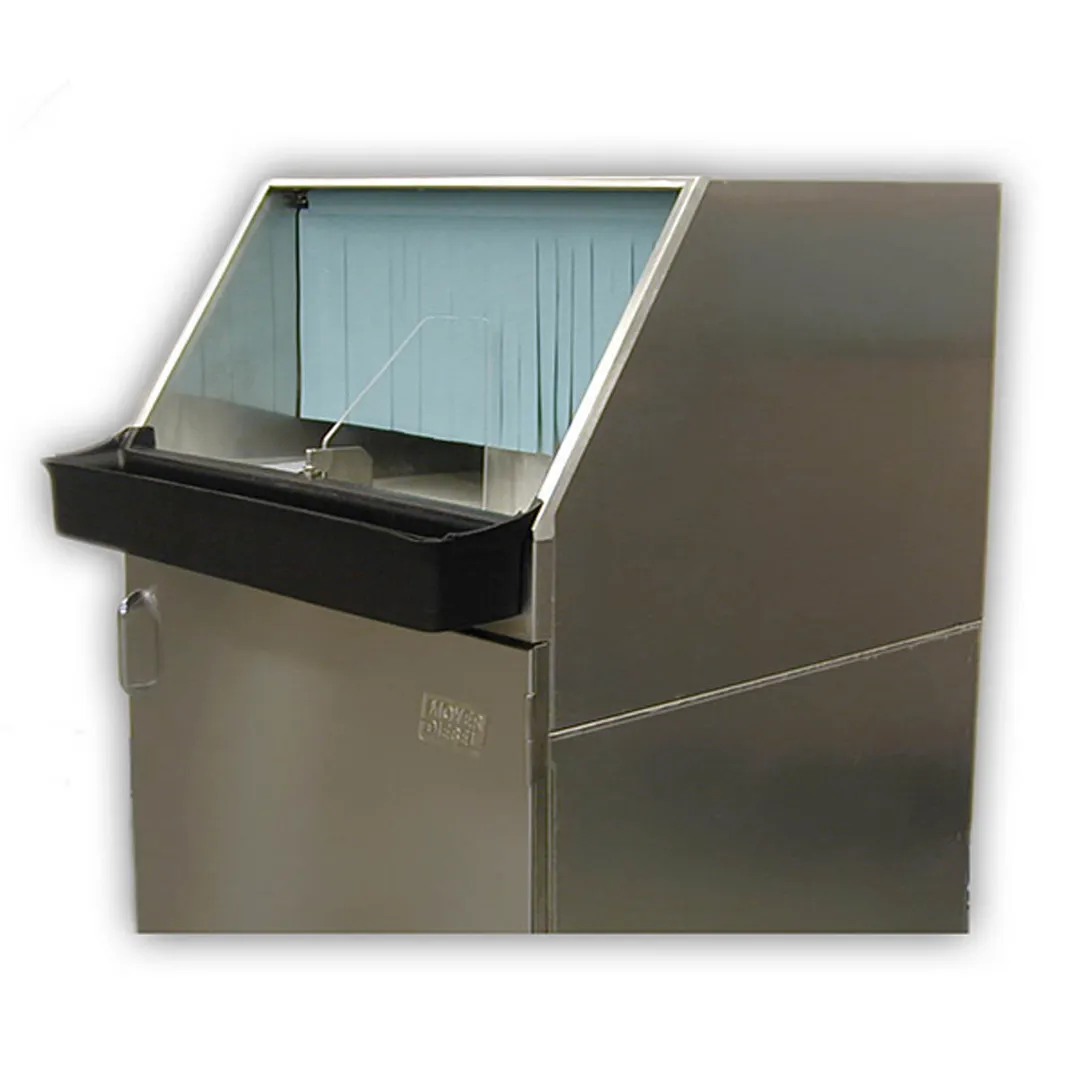

Moyer Diebel DF Rotary Type Fully Automatic Glasswashing Machine
General Info
Specified unit will be Moyer Diebel model DF Rotary Type, fully automatic glasswasher. Unit will have detergent pump, sanitizer pump and rinse aid pump, standard upper and lower wash/rinse arms, wash tank heater, cold water final rinse, polypropylene conveyor, splash curtain, doublewalled construction, storage space for three 1-gallon containers.
Moyer Diebel DF Features
- 12" glass clearance accepts taller stemware
- Internal upper drain screen for improved filtration and ease of cleaning
- Self flushing rinse chamber reduces maintenance
- Reduced water usage
- Improved shut off mechanism
- Three-pump injection system for precise chemical dispensing
- Upper and lower wash and rinse arms produce sparkling clean glasses every time
- Double walled construction for quieter operation
- Cool final rinse water provides a cool glass ready for immediate use
- An internal shelf provides storage for three, 1-gallon (4 liter) containers
- Polypropylene conveyor eliminates chipping of fine stemware
- Internal rinse water tempering valve
Moyer Diebel DF Specifications
- Capacities (hr.) 2-1/2" [64] glasses :1200
- Water Consumption :
- Cold water (approx.) : 2.5 US gpm; 9.5 l/m; 2.1 imp. gpm
- Hot water (initial fill) : 3 US gallons; 11.35 liters; 2.4 imp gallons
- Temperatures °F/C :
- Inlet water (hot) : 140-160/61-69
- Inlet water (cold) : 75/24
- Heating Tank heat, electric (kW) :3
- Other Details :See spec. sheet
From The Manufacturer
Glasswasher, rotary, 25" cabinet, low temperature chemical sanitizing, (1200) 2-1/2" diameter glasses/hr, 12" glass clearance, polypropylene conveyor with clockwise rotation, upper & lower wash/rinse arms, (3) built-in chemical pumps, fully automatic, cool water rinse, built-in mixing valve, cabinet base with door, stainless steel construction, 3.0 kW tank heater, NSF, cETLus, CSA (includes: authorized factory start-up)
