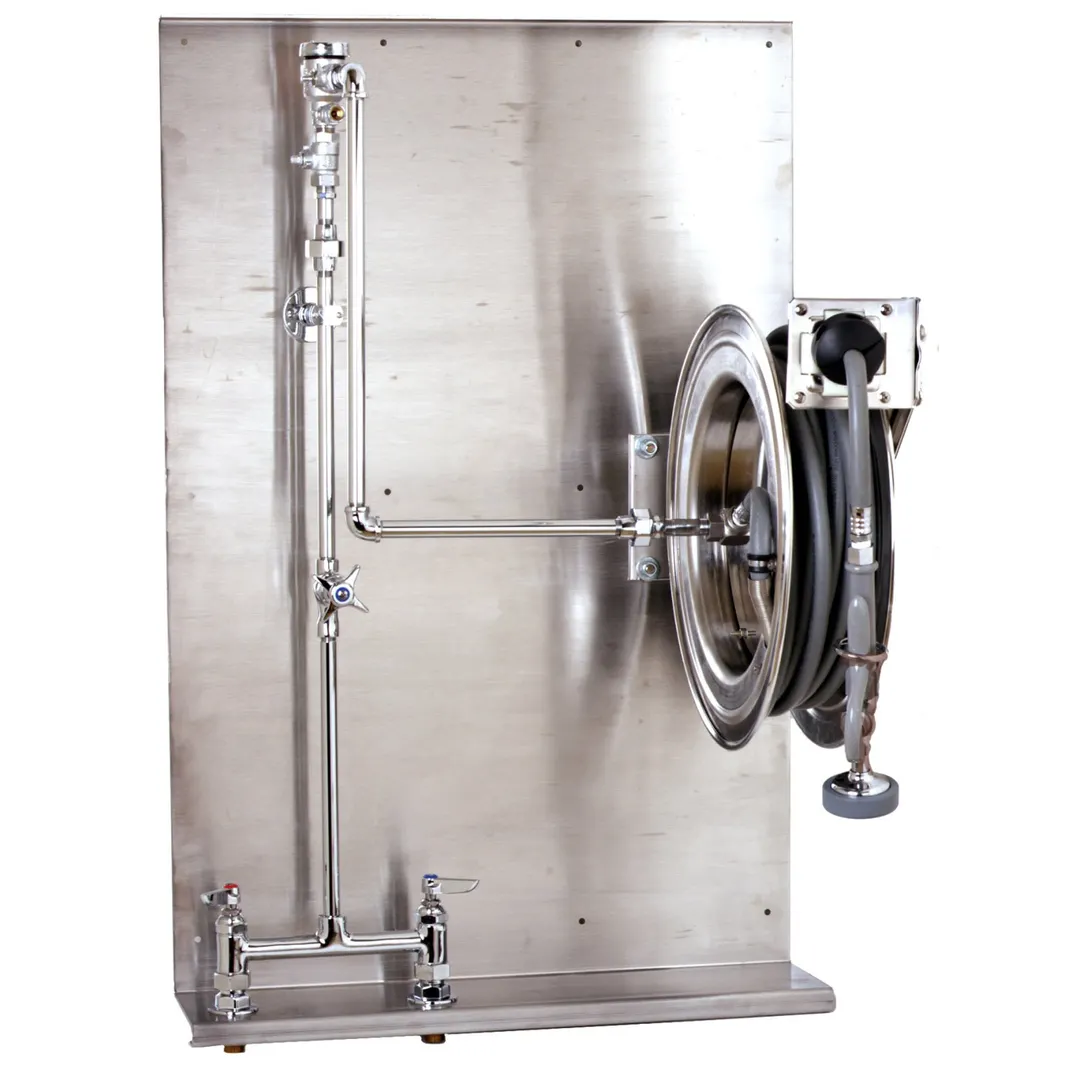

T&S Brass B-1436 Hose Reel Assembly, Open

General Info

Hose reel system, 8" deck mount mixing faucet with polished chrome plated brass body, compression cartridges with spring checks, lever handles, 1/2" NPT male inlets, (2) 12" risers, control valve, wall bracket, continuous pressure vacuum breaker, 24" flexible water hose connector with stainless steel quick disconnect, open stainless steel hose reel with 3/8" x 35' heavy-duty non-marking hose...

T&S Brass B-1436 Features

• All-in-one system with exposed piping and accessories
• 8” wall mount mixing faucet w/ polished chrome plated brass body
• Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
• Lever handles w/ color coded indexes
• 1/2" NPT female eccentric inlets with Ø 2" flanges
• Adjustable centers from 7 3/4” to 8 1/4”
• EasyInstall 16” and rigid 40” risers w/ control valve between risers
• (2) 2 3/8” wall brackets
• Continuous pressure vacuum breaker
• 24” flexible water hose connector with stainless steel quick disconnect
• Open stainless steel hose reel
• High flow stainless steel water gun w/ blue rubber cover, rear style trigger & swivel
• 3/8” x 35’ heavy-duty non-marking hose rated to 300 PSI
• Adjustable hose bumper
• Stainless steel backplate
• Multi-fit bracket for wall, ceiling or under counter mounting

T&S Brass B-1436 Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate : 2.65 GPM @ 60 psi
• Other Details : See spec. sheet
