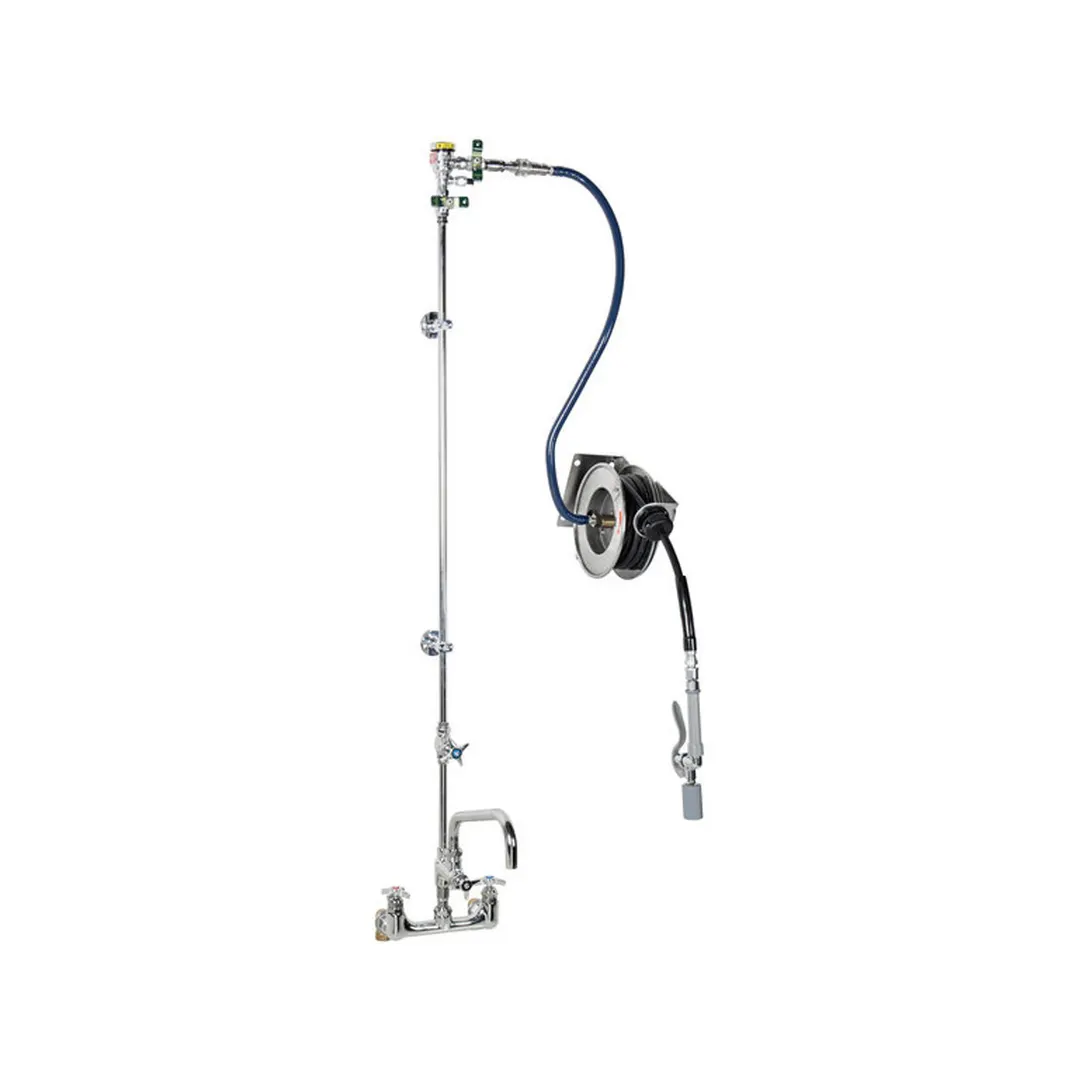

T&S Brass B-1439-BF12-C12 Hose Reel Assembly, Open

General Info

8" wall mount large flow mixing faucet with polished chrome plated brass body, add-on faucet with 12" plain end swing nozzle, large flow compression cartridges, 4-arm handles, 3/4" NPT female inlets, 8" riser, control valve, 40" riser, wall brackets, continuous pressure vacuum breaker, 36" flexible water hose connector with stainless steel quick disconnect...

T&S Brass B-1439-BF12-C12 Features

• All-in-one system with exposed piping and accessories
• 8” wall mount Big-Flo mixing faucet w/ polished chrome plated brass body
• Big-Flo compression cartridges
• 4-arm handles w/ color coded indexes
• 3/4" NPT female eccentric inlets with Ø 2" flanges
• Adjustable centers from 7 3/4” to 8 1/4”
• 8” and 40” rigid risers w/ control valve between risers
• Big-Flo add-on faucet w/ 12" plain-end swing spout
• (2) 2 3/8” wall brackets
• Continuous pressure vacuum breaker
• 36” flexible water hose connector with stainless steel quick disconnect
• Open stainless steel hose reel
• 0.65 GPM low flow spray valve w/ heat resistant gray handle, swivel and hold down ring
• 3/8" x 12' heavy duty non-marking hose rated to 300 PSI
• Ratcheting system holds the length of hose until a slight tug to retract automatically
• Adjustable hose bumper
• Multi-fit bracket for wall, ceiling or under counter mounting

T&S Brass B-1439-BF12-C12 Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :
  • Spray Valve: 0.65 GPM [2.46 L/min] @ 60 psi [4.14 bar]
  • Add-On Faucet: 44.27 GPM [167.58 L/min] @ 60 psi [4.14 bar]
• Other Details : See spec. sheet
