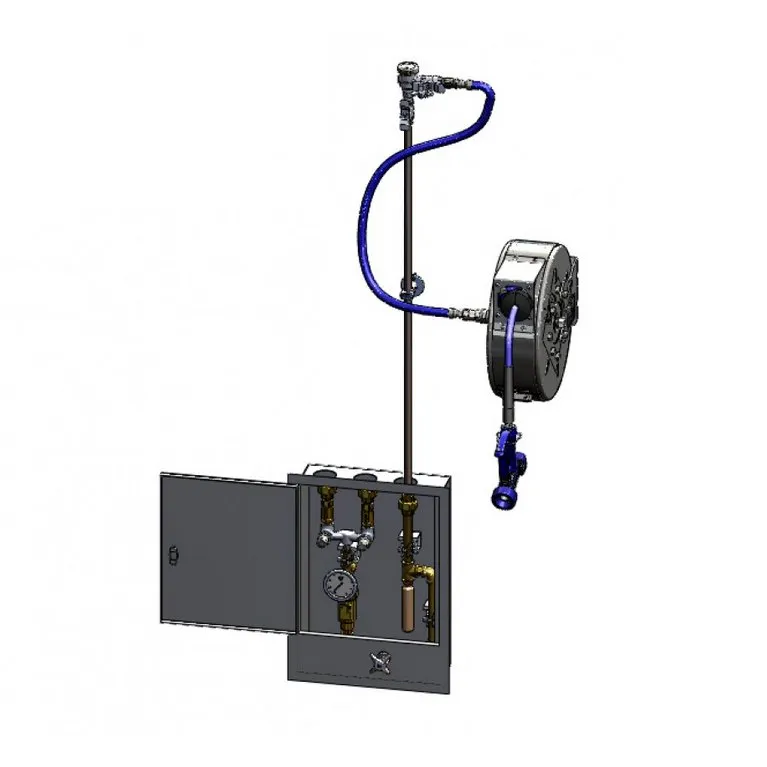

T&S Brass B-2339-02 Control Unit And Hose Reel Assembly
General Info
Hose reel control unit, stainless steel water control cabinet containing 1/2" union inlets and outlet, 1/2" check valves, loose key mixing valve with compression spindles, bi-metallic thermometer, dual check valve backflow preventer, shut-off valve and water hammer arrestor, 21" riser, wall bracket...
T&S Brass B-2339-02 Features
- Flush mount stainless steel control cabinet with locking latch contains water control system
- 1/2” NPT female union inlets (2) and outlet
- 1/2” in-line check valves
- Loose key mixing valve with compression spindles, tee handles and screws
- Bi-metallic thermometer with 3” dial face
- Dual check valve backflow preventer
- Shut-off valve with 4-arm handle operable from outside of closed cabinet
- Enclosed coated hose reel with 3/8” NPT female inlet
- High flow spray valve w/ heat resistant blue handle, hold down ring & swivel
- 3/8” x 30’ heavy-duty non-marking hose rated to 300 PSI
- Ratcheting system holds the length of hose until a slight tug to retract automatically
- Adjustable hose bumper
T&S Brass B-2339-02 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : TBD GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Hose Reel Assembly, enclosed, with 3/8" x 30' ft. hose., flush mount stainless steel control cabinet with locking latch, 1/2" in-line check valves, dual check valve backflow preventer, shut-off valve with 4-arm handle, bi-metallic thermometer with 3" dia. dial face, continuous pressure vacuum breaker, ratcheting system, high flow stainless steel water gun with rubber cover & front style trigger, water hammer arrestor, includes multi-fit bracket, (2) 1/2" NPT female union inlets, 1/2" NPT outlet
