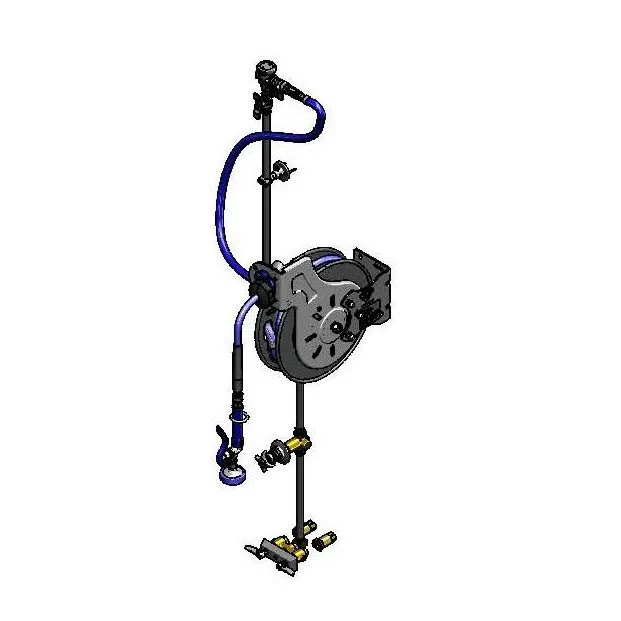

T&S Brass B-7232-U01XS3 Open Coated Hose Reel Assembly
General Info
3" concealed wall mount mixing faucet with brass body, chrome plated brass escutcheon, compression cartridges with spring checks, lever handles, 3/8" NPT female inlets, 1/2" NPT in-line check valves with 1/2"NPT female inlets, 12" riser, concealed control valve, (2) 22" risers, wall bracket, slip flange...
T&S Brass B-7232-U01XS3 Features
- All-in-one system with exposed piping and accessories
- 3” concealed wall mount mixing faucet w/ brass body
- Eterna compression cartridges
- Lever handles w/ color coded indexes
- Mixing faucet, 3/8” NPT female inlets
- (2) 1/2" NPT in-line check valves w/ 1/2" NPT female inlets
- 12” and (2) 22” risers w/ concealed control valve between risers
- 2 3/8” wall bracket
- Continuous pressure vacuum breaker
- 36” flexible water hose connector with stainless steel quick disconnect
- Open epoxy coated hose reel with adjustable hose bumper
- High flow spray valve w/ heat resistant blue handle, swivel and hold down ring
- 3/8” x 35’ heavy-duty non-marking hose rated to 300 PSI
- Ratcheting system holds the length of hose until a slight tug to retract automatically
- Adjustable hose bumper
T&S Brass B-7232-U01XS3 Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 2.79 GPM @ 60 ps
- Other Details : See spec. sheet
From The Manufacturer
Hose Reel Assembly, open, 3/8" x 35 ft. hose with high flow spray valve with swivel, 3" concealed wall mount mixing faucet, Eterna compression cartridges, lever handles with color coded indexes, continuous pressure vacuum breaker, 36" flexible water hose connector with stainless steel quick disconnect, ratcheting system, multi-fit bracket & adjustable hose bumper, 2-3/8" wall bracket, 12" & (2) 22" risers, epoxy coated steel hose reel, polished chrome-plated brass faucet body, 1/2" NPT female inlets
