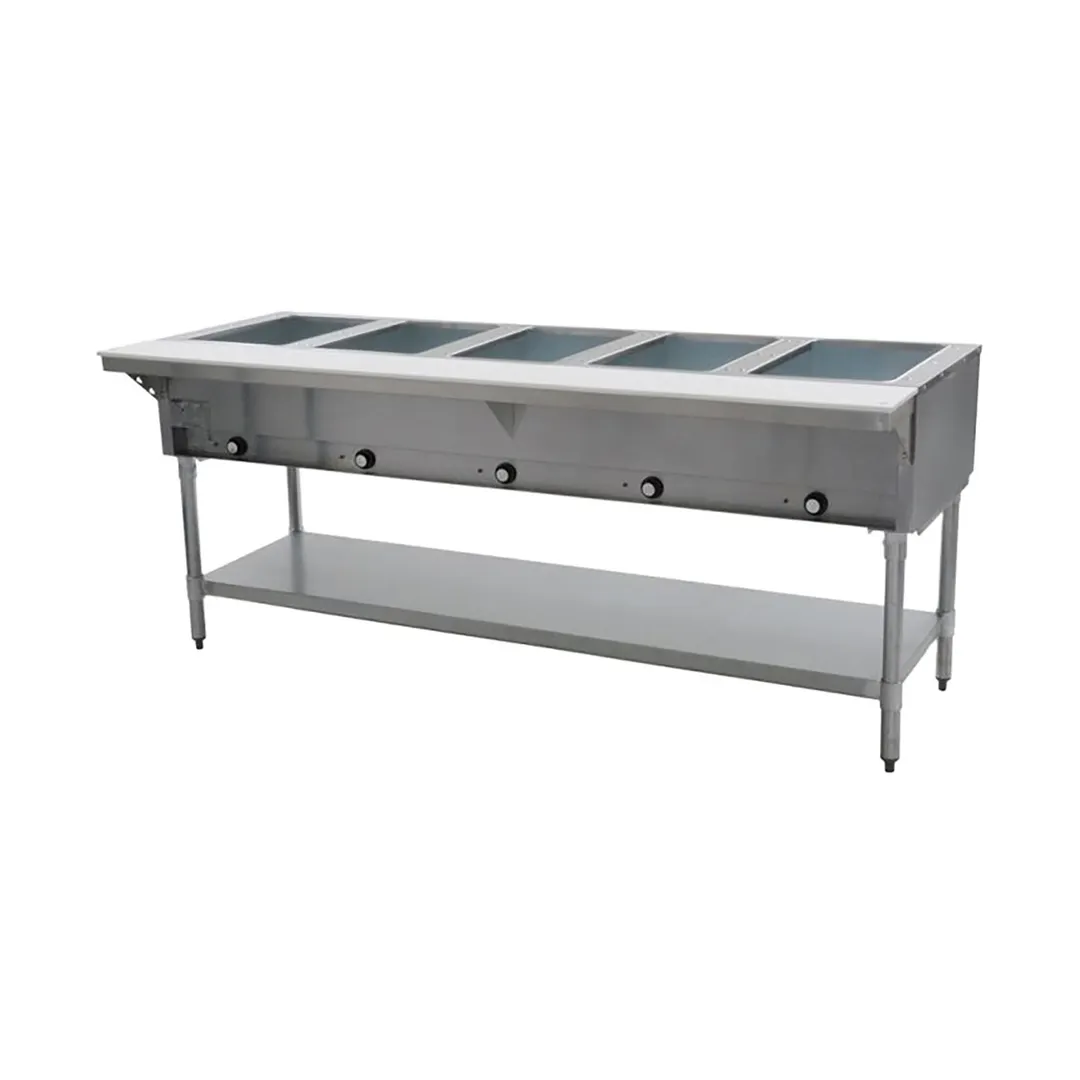

Eagle Group DHT5-240 79" Hot Food Table, (5) Pan Capacity

General Informations

Top and body are heavy gauge type 430 stainless steel. Beaded top openings are 12 3⁄32˝ x 20 3⁄32˝. Heating compartments are 8˝-deep, galvanized, and insulated on all four sides and bottom with 1˝ fiberglass or equal. Recessed control panel, with individual infinite controls, offer high and low settings. Each compartment fitted with 500-watt heating element for 120-volt units, and 750-watt heating element for 208- and 240-volt units. 6´cord and plug extends from the bottom right hand side of the unit.

Eagle Group DHT5-240 Construction Features

• Table body and top are constructed of highly polished 22 gauge 430 series stainless steel.
• Top features die stamped beaded openings measuring 12 3⁄32˝ x 20 3⁄32˝ (307 x 510mm).
• A poly cutting board, 8˝ (203mm) wide and 1⁄2˝ (13mm)thick, is mounted on stainless steel brackets located on control side of unit.
• Legs offered in galvanized or stainless steel.
• All models are 30 1⁄2˝ (774mm) wide and 34˝ (863mm) high.

Eagle Group DHT5-240 Controls Features

• Individual infinite controls offer high and low selections along with eight other temperature settings.
• Indicator light remains on continuously while control is in “ON” position.

Eagle Group DHT5-240 Specifications

• Length in.(mm) : 79" (2007mm)
• #Of Top Openings : 5
• Electrical Data : 3750W, 240V
• Shipping Weight (lbs.) (kg) : 241 (109,3)
• Other Details : See Spec. Sheet
