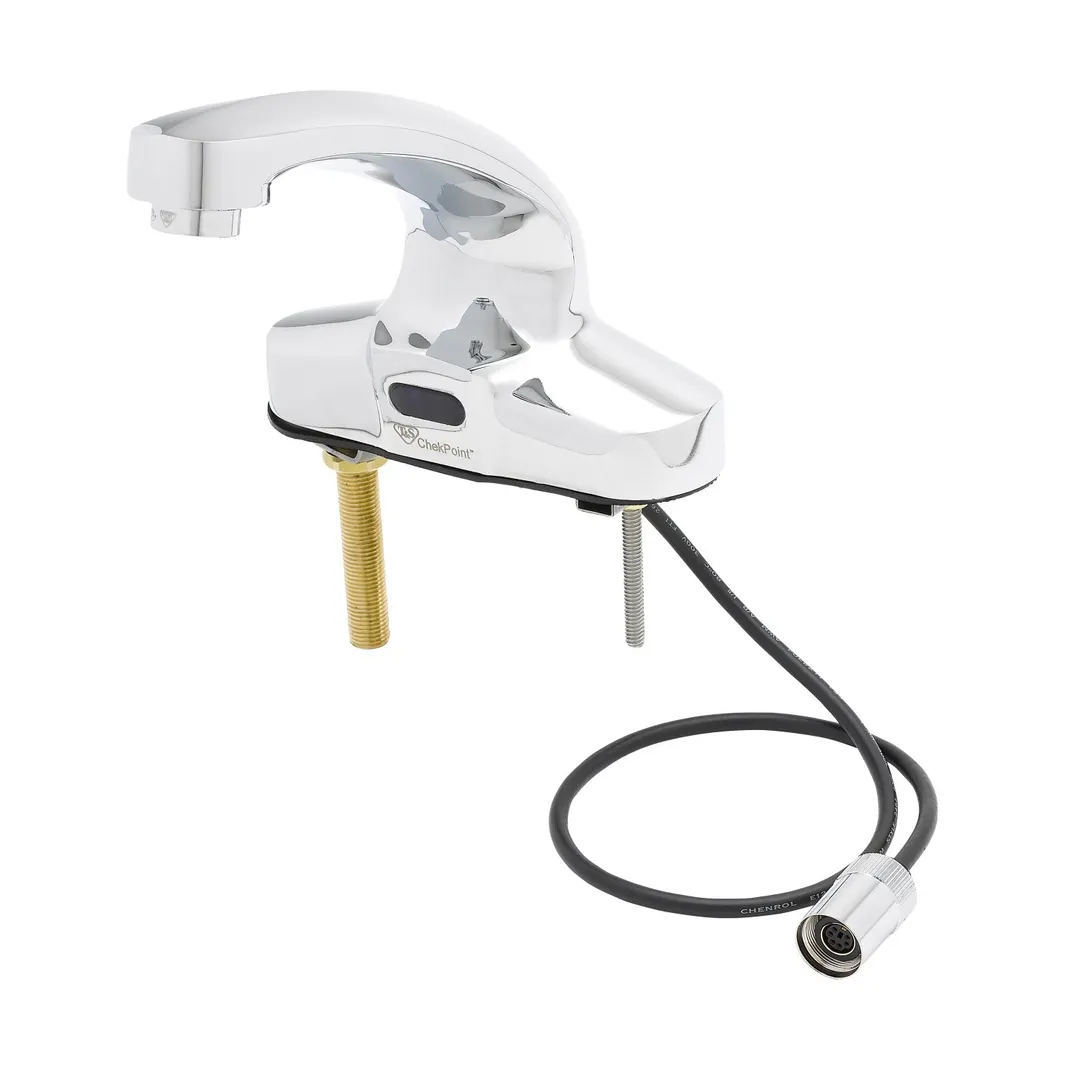

T&S Brass EC-3104-VF5-TMV Electronic Sensor Faucet
General Info
4" deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 0.5 GPM vandal resistant non-aerated spray device, AC/DC control module with internal flow control setting switches, thermostatic temperature control mixing valve with integral check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3104-VF5-TMV Features
- 4" c/c deck mount faucet w/ polished chrome plated brass body with integral spout
- 0.5 GPM vandal resistant non-aerated spray device, Series 8 (B-0199-08-N05)
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Thermostatic temperature mixing valve with check valves
- 18" flexible stainless steel supply hoses w/ 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body
T&S Brass EC-3104-VF5-TMV Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 0.5 GPM [1.9 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .08 gal [.32 L]
- @15 sec = .13 gal [.47 L]
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™ Electronic Faucet, deck mount, 4" centers, cast spout 0.5 GPM vandal resistant non-aerated spray device, AC/DC control module with internal flow control, thermostatic mixing valve with integral check valves, flexible stainless supply hoses, low lead, ADA Compliant
