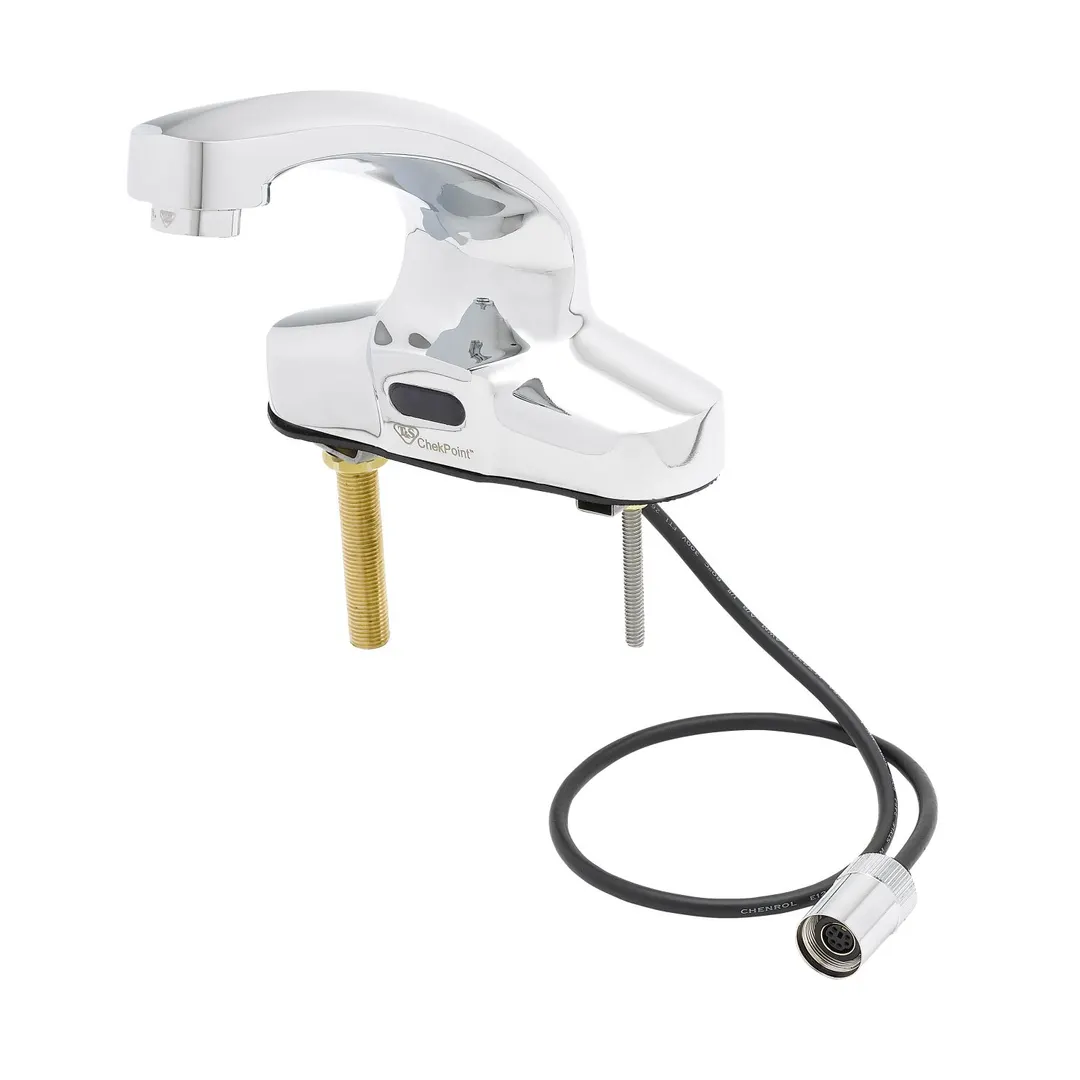

T&S Brass EC-3104TMVHGF10 Electronic Sensor Faucet
General Info
4" deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 1.0 GPM vandal resistant aerator, AC/DC control module with internal flow control setting switches, thermostatic temperature control mixing valve with integral check valves, hydro- generator power supply and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3104TMVHGF10 Features
- 4" c/c deck mount faucet w/ polished chrome plated brass body with integral spout
- 1.0 GPM vandal resistant aerator, Series 8 (B-0199-08-F10)
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Thermostatic temperature mixing valve with check valves
- Hydro-generator power supply
- 18" flexible stainless steel supply hoses w/ 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body
T&S Brass EC-3104TMVHGF10 Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 1.0 GPM [3.8 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .17 gal [.63 L]
- @15 sec = .25 gal [.95 L]
- Other Details : See spec. sheet
From The Manufacturer
Electronic Sensor Faucet, 4" deck mount, rigid, 5-1/16" H, 4-15/16" spread, cast spout, AC/DC control module with internal flow control setting switches, temperature control mixing valve with check valves, (2) 18" supply hoses, hydro-generator power supply, 1.0 GPM vandal resistant aerator, low-lead, polished chrome-plated brass, ADA Compliant, cCSAus, cULus
