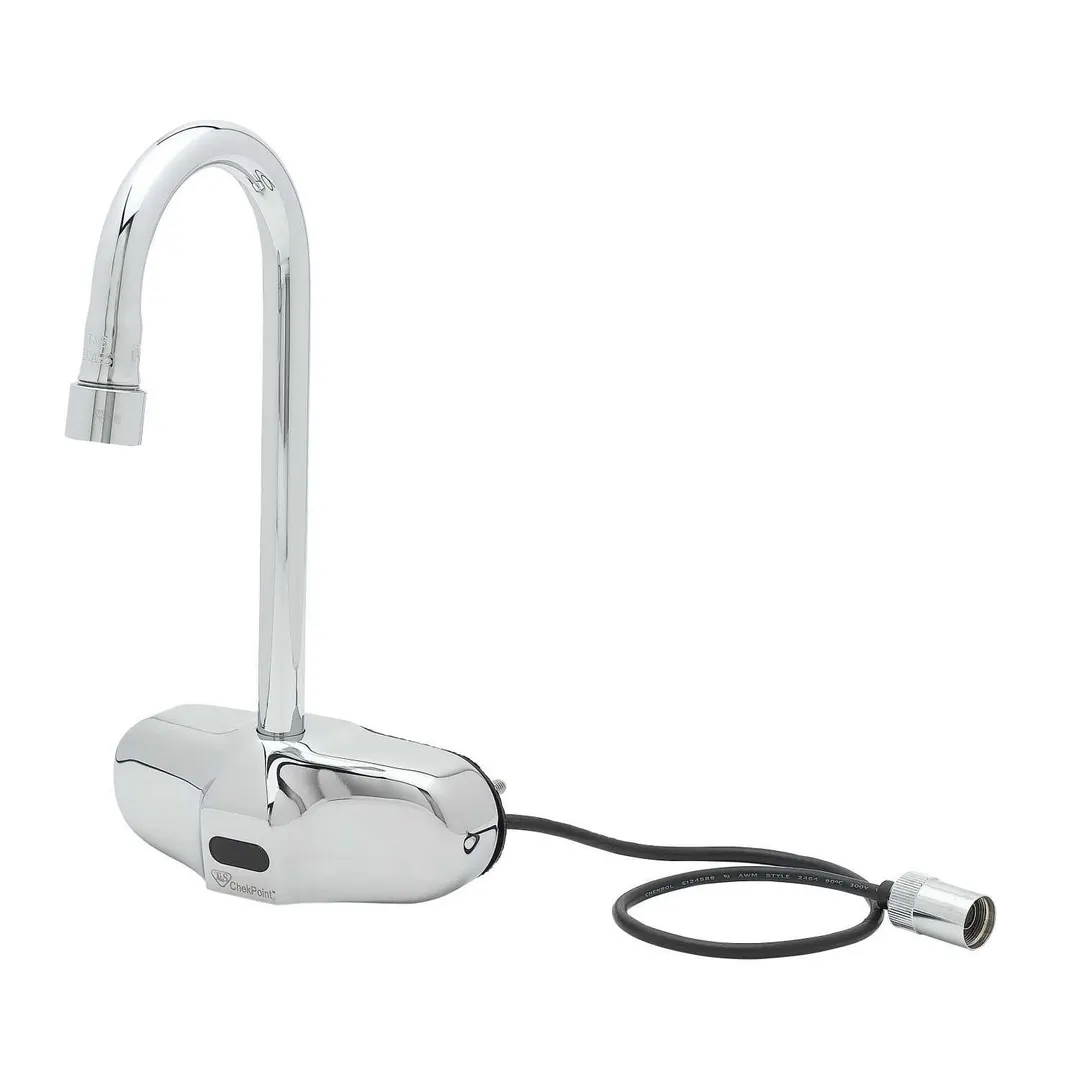

T&S Brass EC-3105TMVHGF10 Electronic Sensor Faucet
General Info
4" wall mount electronic sensor faucet with polished chrome plated brass body with 4 1/8" rigid gooseneck, 1.0 GPM vandal resistant aerator, AC/DC control module with internal flow control setting switches, temperature control mixing valve with integral check valves, hydro-generator power supply and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3105TMVHGF10 Features
- 4" c/c wall mount faucet w/ polished chrome plated brass body
- 4 1/8" rigid gooseneck
- 1.0 GPM vandal resistant aerator, Series 6 (B-0199-06-F10)
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- 18” flexible stainless steel supply hoses with 3/8" compression connections
- Two flexible stainless steel supply hoses w/ 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body and tubular spout
T&S Brass EC-3105TMVHGF10 Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 1.0 GPM [3.8 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .17 gal [.63 L]
- @15 sec = .25 gal [.95 L]
- Other Details : See spec. sheet
From The Manufacturer
Electronic Sensor Faucet, 4" wall mount, rigid, 5-1/16" H, 4-15/16" spread, gooseneck, AC/DC control module with internal flow control setting switches, thermostatic temperature control mixing valve with check valves, (2) 18" hot & cold supply stop flexible connector hoses, hydro-generator power supply, 1.0 GPM vandal resistant aerator, low-lead, polished chrome-plated brass, ADA Compliant, cCSAus, cULus
