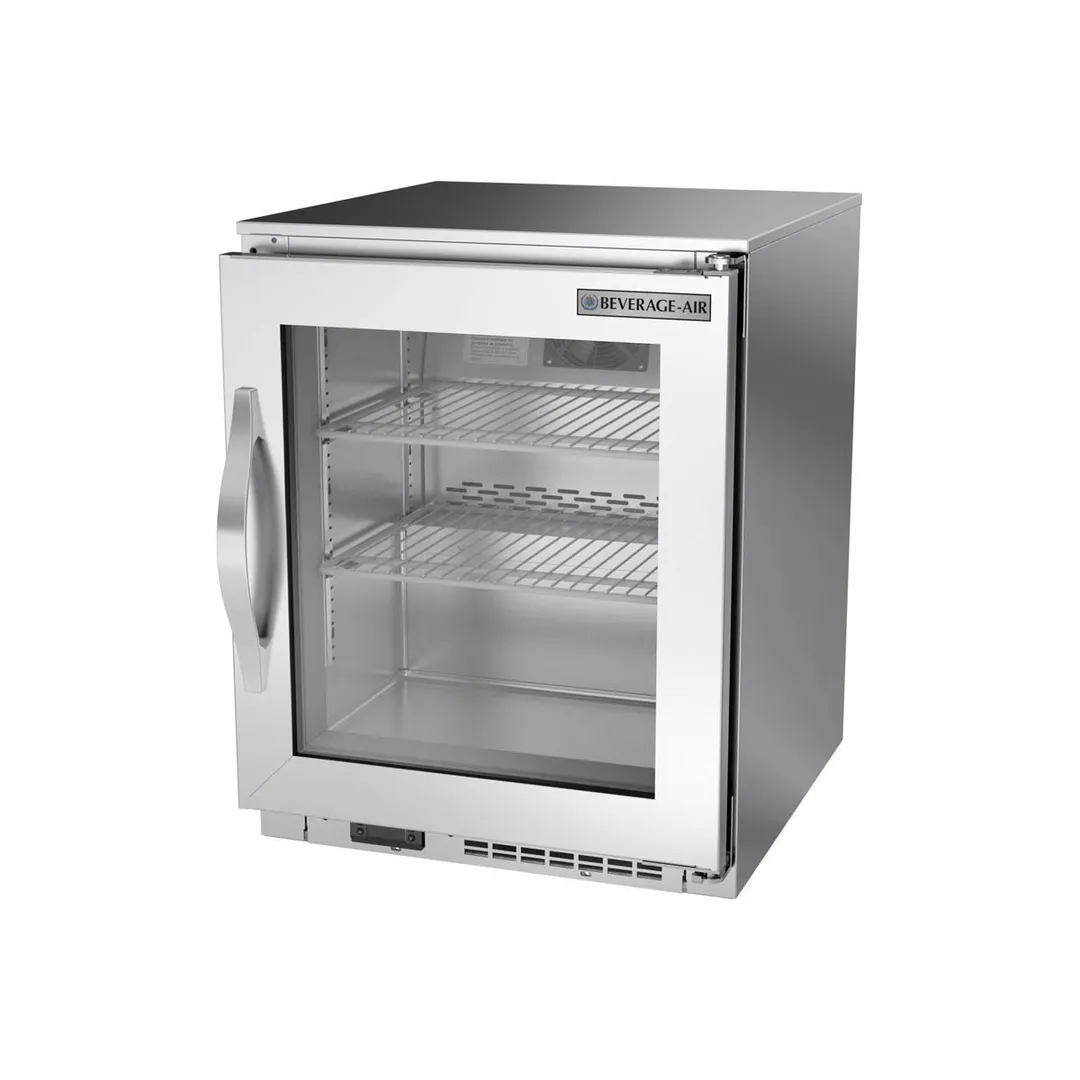

The Beverage Air UCF20HC-25-15 Shallow Glass Door Ice Cream Undercounter Freezer

Beverage Air UCF20HC-25-15 Cabinet Construction

Stainless steel front, sides, top, door and grille (galvanized steel back & bottom)
Interior liner is made of corrosion resistant aluminum
Full electronic control
Undercounter feature a 1/2” thick sub-top
Interior thermometer is standard
Forced air design does not require unit to under-go manual defrost
Self-closing door with 120˚ stay-open feature, on cartridge style hinges
Door opening includes low wattage, anti-condensate heater
Magnetic gasket attached to each door for positive seal
Two (2) epoxy-coated steel wire shelves

Beverage Air UCF20HC-25-15 Refrigeration System

Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
Adaptive defrost
Epoxy coated evaporator coil
Freezer temperatures is held at –15ºF to -10ºF or below

From The Manufacturer

Undercounter Ice Cream Freezer, one-section, 20"W, 25"H, 2.25 cu. ft. capacity, shallow depth, (1) hinged glass door, stainless steel top with turned down edges, (2) shelves, stainless steel exterior top, front, sides, doors & grille, galvanized steel exterior bottom & back, aluminum interior, rear-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/2 HP, cULus, UL EPH Classified, UL-Sanitation, MADE IN USA

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.

Manufacturer	Beverage Air
Model Number	UCF20HC-25-15
Weight	150 lbs
Width	20″
Depth	24.5″
Height	31.13″
Size	1 section
Access Type	doors
Door Type	glass door
Door Quantity	1
Refrigeration	self-contained, rear mounted
Compressor HP	1/2 HP
Compressor Style	side / rear breathing
Exterior Finish	galvanized & stainless steel exterior
Capacity (Cu. Ft.)	2.25
