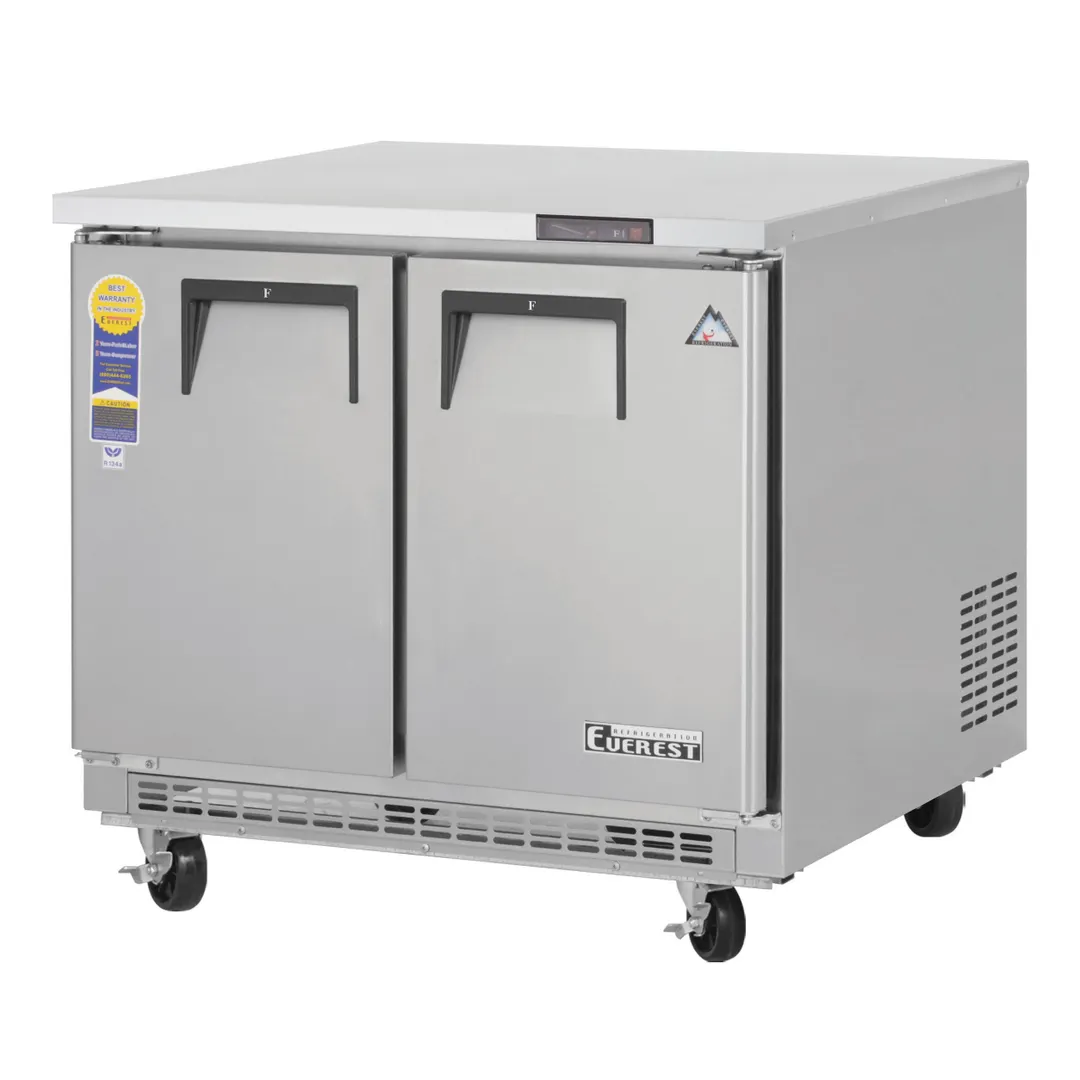

The Everest ETBSF2 Back Mount Undercounter Freezer
Why use Everets Freezer?
The Undercounter Back Mount series is designed to be flexible in function. Its height is matched to standard countertop dimensions so it can slide under the designated space with ease. Its heavy duty, single piece stainless steel worktop provides a practical work space or storage area. Equipped with the Blizzard R290 system, a fully self-contained and detachable condensing unit which uses natural, environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.
The Everest ETBSF2 Refrigeration System
- Bottom mounted, self-contained and retractable condensing unit uses environmentally friendly R404A refrigerant with zero (0) Ozone Depletion Potential (ODP) and EPA compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). R290 condensing units are replaceable and require no on-site brazing
- Front air breathing for flexibility in installation.
- PSC evaporator fan motors for R404A models. Electronically commutated (ECM) fan motors for R290 models
- R290 models include full-length air duct system
- Time-initiated and temperature-terminated auto defrost heater.
- Large capacity, corrosion-resistant condenser and evaporator coils.
- Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High performance condenser fan motors ensure efficient compressor ventilation. R290 models use autoreverse condenser fan motors which also support condenser coil cleaning. Refer to owner’s manual for full maintenance instructions.
- Pressure relief devices allow smooth access to cabinet interior when re-opening doors.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction And Doors
- Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace
- 16 gauge, high quality stainless steel worktop.
- Galvanized steel top, bottom and rear.
- 2.5" thick high density polyurethane insulation.
- Four 5" swivel casters with locks on front set and two front leg stabilizers.
- Heavy duty stainless steel interior / exterior.
- 2.5" thick high density polyurethane insulation.
- Frame heaters prevent exterior moisture build up.
- Self-closing with adjustable torsion system for a positive seal.
- Snap-in magnetic door gasket make cleaning and replacement an easy process.
- High strength, recessed door handles.
- Pre-installed door locks keep your items safe from theft.
Shelving And Temperature Control
- Two epoxy coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
- Multi-function digital controller with easy to read LED display.
- Factory preset temperature, -4°F. Temperature setting range from -10°F to 54°F.
- R290 models include audible overheat protection alarm for compressor and condenser coil.
From The Manufacturer
Undercounter/Worktop Freezer, two-section, 35-5/8"W, 10.0 cu. ft. capacity, self-contained bottom mounted refrigeration, 16 gauge stainless steel worktop, (2) solid hinged self-closing doors (locking), (4) epoxy coated wire shelves, height adjustable clips, digital controls with LED display, defrost cycle with heater, front air breathing, pressure relief port, stainless steel interior, stainless steel front & sides, galvanized steel bottom & rear, (4) 5" swivel casters (2 locking), R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.7 amps, cord, NEMA 5-15P, NSF, cETLus, ETL-Sanitation
