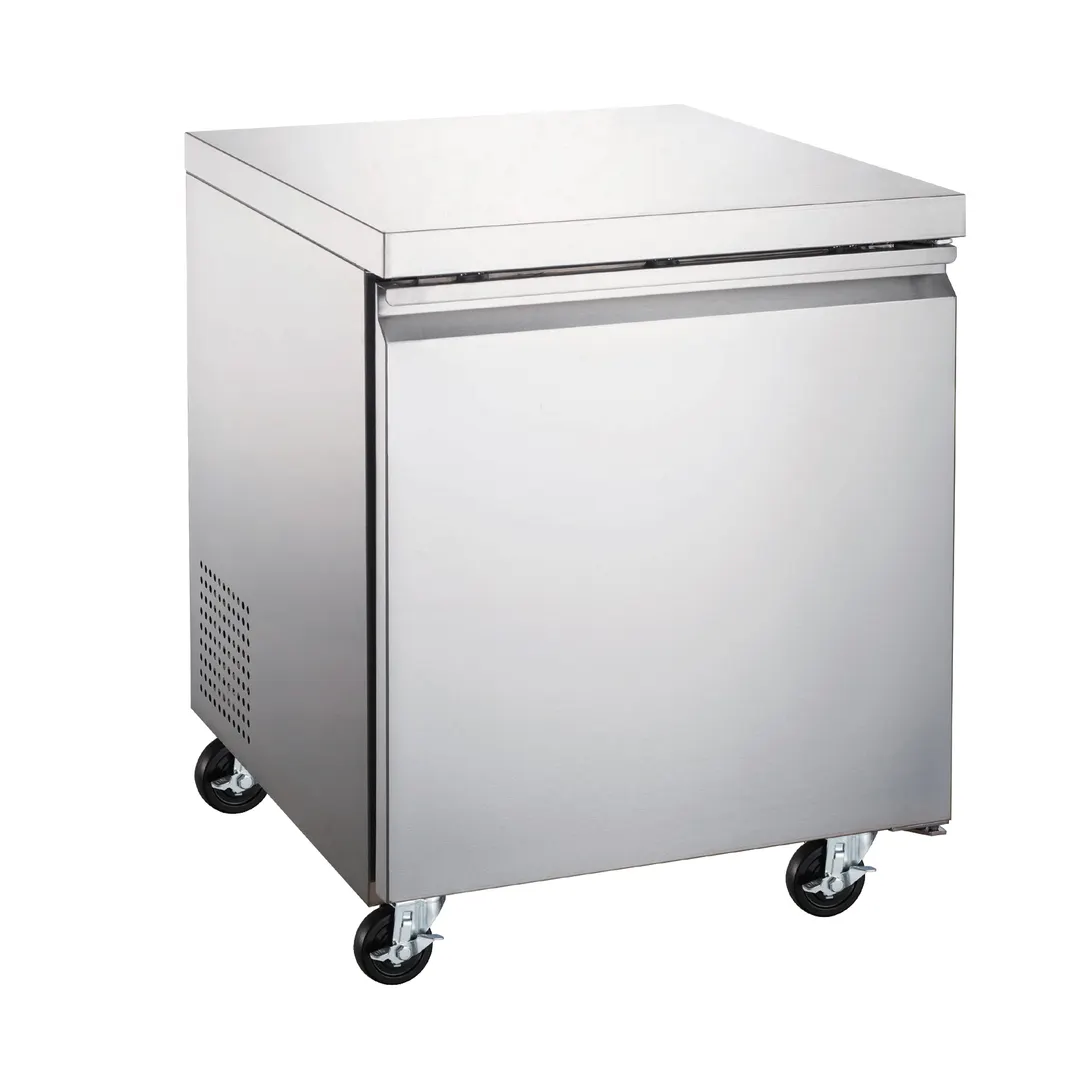

OMCAN 27-INCH UNDER COUNTER FREEZER

Standard Features:

The perfect solution to add cold storage space for frozen products and ingredients conveniently within reach
Stainless steel interior and exterior
Refrigeration system keeps food at safe temperatures between -8°F and 0°F / -22°C to -18°C
Self-closing doors with 90 degree stayopen feature
Adjustable heavy-duty PVC coated shelves
Digital control system makes it easy to adjust temperature set point and defrost frequency
This unit uses HYDRO-CARBON R290 refrigerant, which is environmentally friendly and more efficient

ITEM SPECIFICATIONS:

ITEM NUMBER 50053
MODEL FR-CN-0686-HC
DESCRIPTION 27-inch Under Counter Freezer
TEMPERATURE RANGE -8°F - 0°F / -22°C - -18°C
POWER 1/5 HP
REFRIGERANT R290
ISOLATION MATERIAL Cyclopentane
COOLING SYSTEM Ventilated
DEFROSTING Automatic
TYPE OF CONTROLLER Digital
SELF-CLOSING DOOR Yes
AMPS 2.1
NUMBER OF DOORS 1
NUMBER OF SHELVES 1
SHELF MATERIAL Coated steel
SHELF LOADING (KG/PC) 20 kg. / 44 lbs.
ELECTRICAL 115V / 60Hz / 1Ph
INTERIOR DIMENSIONS (WDH) 22.2” x 22.8” x 23.5” / 565 x 580 x 597 mm
OVERALL DIMENSIONS (WDH) 27” x 29.5” x 35.2” / 685 x 750 x 895 mm
PACKAGING DIMENSIONS 30 3/8” x 32 5/8” x 38 5/8” / 770 x 830 x 980 mm
NET VOLUME (CU. FT.) 6.3 cu. ft. / 177 L
WEIGHT 81 kg. / 178 lbs.
PACKAGING WEIGHT 106 kg. / 233 lbs.

From The Manufacturer

(FR-CN-0686-HC) Under Counter Freezer, reach in, one-section, rear mount self-contained refrigeration, 6.3 cu. ft., -8° (-22°C) to 0°F (-18°C) temperature range, digital control system, auto defrost, recessed handles, (1) PVC coated steel shelf, self-closing door, stainless steel interior & exterior, casters, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.1 amps, cord, NEMA 5-15P, CE, cETLus, ETL-Sanitation (shipped on pallet)

Manufacturer	Omcan USA
Model Number	50053
Weight	233 lbs
Width	27″
Depth	29.5″
Height	35.2″
Size	1 section
Access Type	doors
Door Type	solid door
Door Quantity	1
Refrigeration	self-contained, rear mounted
Compressor HP	1/5 HP
Compressor Style	side / rear breathing
Exterior Finish	stainless steel
Handle Type	full length recessed
Certifications	cETLus, ETL-Sanitation, CE
Capacity (Cu. Ft.)	6.3
