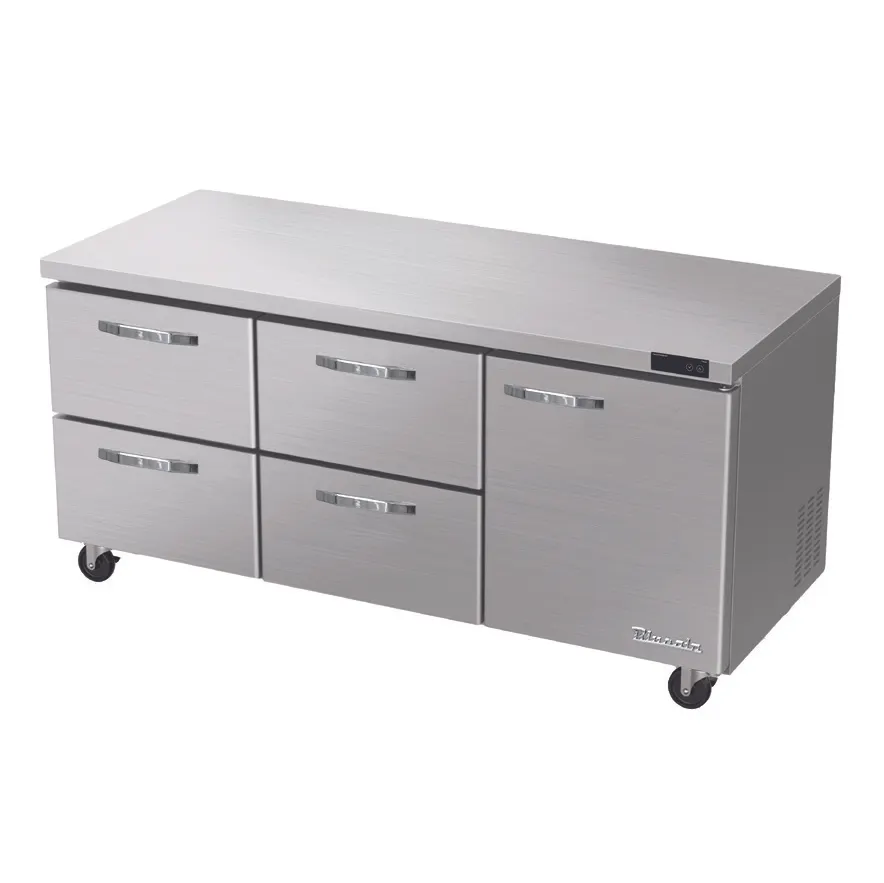

Blue Air Undercounter Drawer BLUR72-D4LM-HC
Standard Features
1. Cabinet Construction
- Stainless steel cabinet construction Stainless steel interior and exterior (galvanized steel back & bottom).
- Cycolpentane Insulation – Contains no hydro-fluorocarbons (HFCs) and is environmentally friendly.
- Four (4) 4” diameter swivel casters with front brakes standard.
2. Refrigeration
- Hydrocarbon refrigerants (R-290) – increases energy efficiency by up to 25% compared to using HFC refrigerants. It is safer for the environment and does not cause ozone depletion.
- Self-contained system, rear mounted compressor.
- Electrodeposition coated evaporator increases performance by maintaining the heat transfer rates over the life of the evaporator and reducing potential corrosion.
- Innovative hot gas frame heating system reduces condensation and increases energy efficiency.
- Refrigerators have a temperature range between 33°F ~ 39°F
3. Drawer
- Durable drawer gasket with easy replacement. >
- Lifetime guaranteed heavy duty all metal door handles. (Ni-Cr Plated)
4. Design
- Self-diagnostic digital temperature control & monitor system.
- Digital display allows for easy monitoring.
- Digital controls include automatic evaporator fan motor delay.
- Rounded corner design gives a stylish appearance and reduces chances of injury.
5. Standart and Connection
- NSF/ANSI Standard 7 compliant
- 9 ft long flexible three wire cord with molded plug
6. Optional Features & Accessories
- 2.5” diameter casters available
- 6” adjustable feet available
Blue Air BLUR72-D4LM-HC Technical Specifications
- Drawers:4
- Capacity (Cu. Ft.):20,2
- Shelves:1
- Cabinet Dimensions (inches / mm) (LxDxH):72 3/8 (1839mm) x 33 1/32 (839mm) x 35 7/8 (912mm)
- HP:1/4
- Refrigerant:See spec. sheet
- Temperature Range:See spec. sheet
From The Manufacturer
Undercounter Refrigerator, three-section, 72-3/8"W, 20.2 cu. ft. capacity, rear-mounted self-contained refrigeration, 33° F to 39° F temperature range, (4) drawers, metal drawer handles, (1) self-closing swing door (on right), metal door handle, open door alarm, (2) adjustable wire shelves, self-diagnostic digital temperature control & monitor system, stainless stainless steel interior & exterior, (4) 4" swivel casters (2 braked), R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 5.2 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation
