T&S Brass B-0230-132XA-EL Double Pantry Faucet
General Info

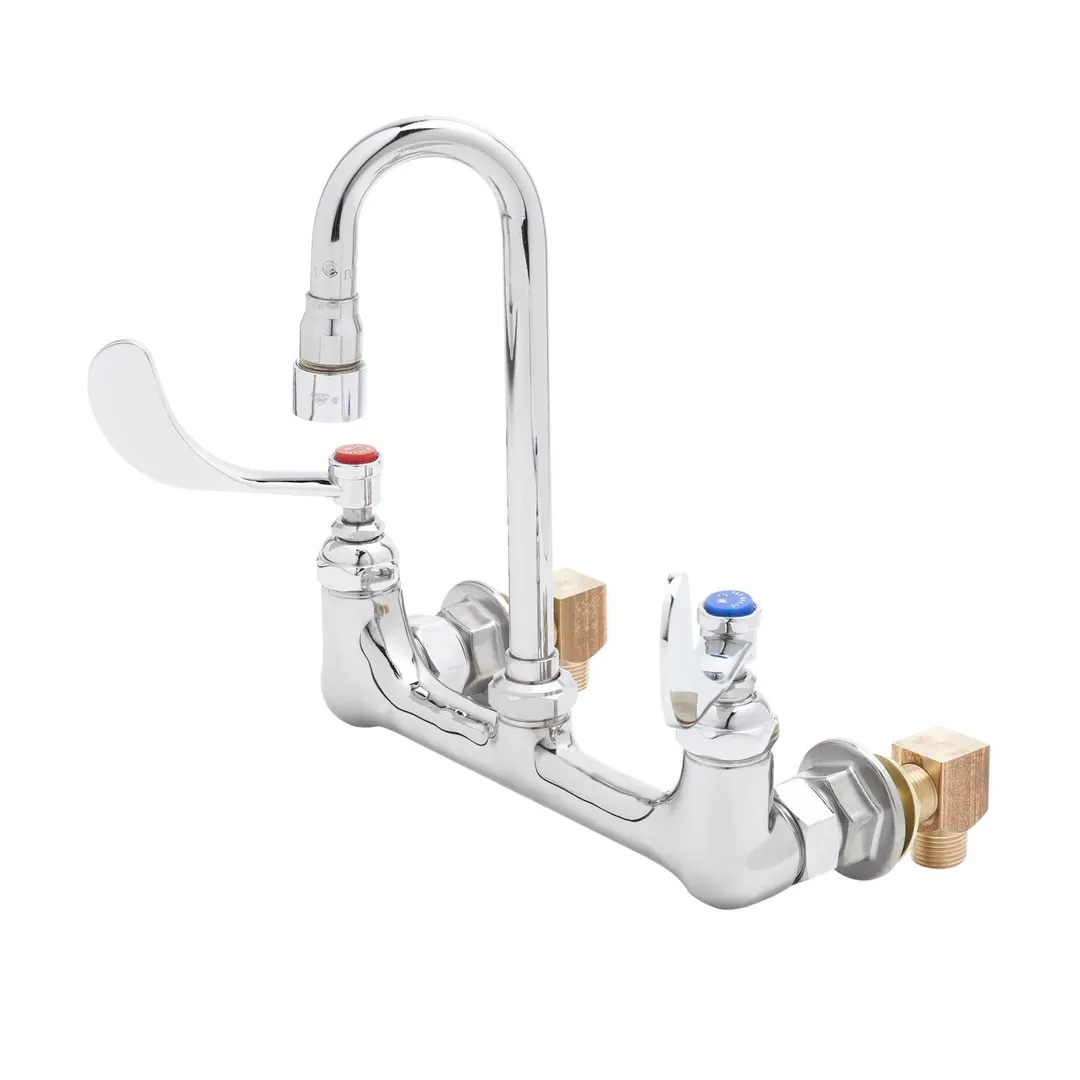

The B-0230-132XA-EL, 8" wall mount mixing faucet with polished chrome plated brass body, 2 7/8" swivel/rigid gooseneck with vandal resistant 2.2 GPM aerator, compression cartridges with spring checks, 4" wrist action handles and installation kit with 1/2" NPT male elbow inlets.
T&S Brass B-0230-132XA-EL Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 2 7/8" swivel/rigid gooseneck.
- Lock washer provided for rigid application
- Vandal resistant 2.2 GPM aerator, Series 6 (B-0199-06)
- Quarter-turn Eterna compression cartridges with spring checks to prevent the cross flow of water
- 4" Wrist action handles w/ color coded indexes
- Installation kit with 1/2” NPT male elbow inlets
- 1/2" NPT female eccentric inlets with Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular nozzle and chrome plated metal handles
T&S Brass B-0230-132XA-EL Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pantry Faucet, double, wall mount, 8" centers, 3" swivel gooseneck, 4" wrist handles, quarter-turn Eterna cartridges, 2.2 GPM aerator, low lead, vandal resistant, 1/2" NPT, ADA Compliant, NSF
