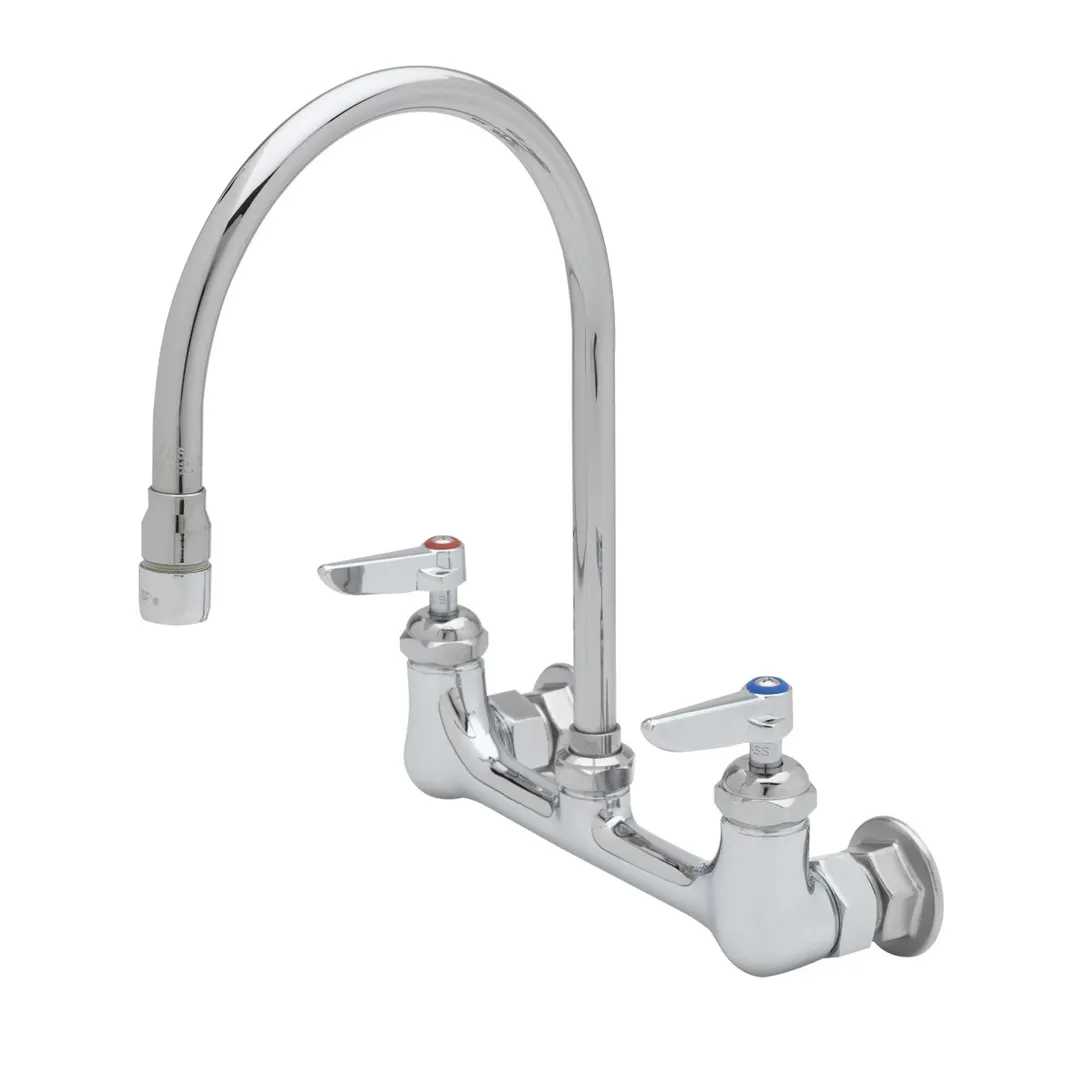

T&S Brass B-0230-134XA-CR Double Pantry Faucet
General Info
The B-0230-134XA-CR, 8" wall mount mixing faucet with polished chrome plated brass body, 7 3/4" swivel/rigid gooseneck with 2.2 GPM aerator, ceramic cartridge with check valves, lever handles and 1/2" NPT female inlets.
T&S Brass B-0230-134XA-CR Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 7 13/16" swivel/rigid gooseneck
- Lock washer provided for rigid application
- 2.2 GPM aerator, Series 2 (B-0199-02)
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body and chrome plated metal handles
T&S Brass B-0230-134XA-CR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 180 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pantry Faucet, double, wall mount, 8" centers, 8" swivel gooseneck, lever handles, quarter-turn Cerama cartridges, 2.2 GPM aerator, 1/2" NPT, low lead, ADA Compliant, NSF
