T&S Brass B-0230-CR-SC-EK B-0230, Quarter-Turn Cerama Cartridges, Low Lead

SKU TSB-B-0230-CR-SC-EK

$230.18/Each

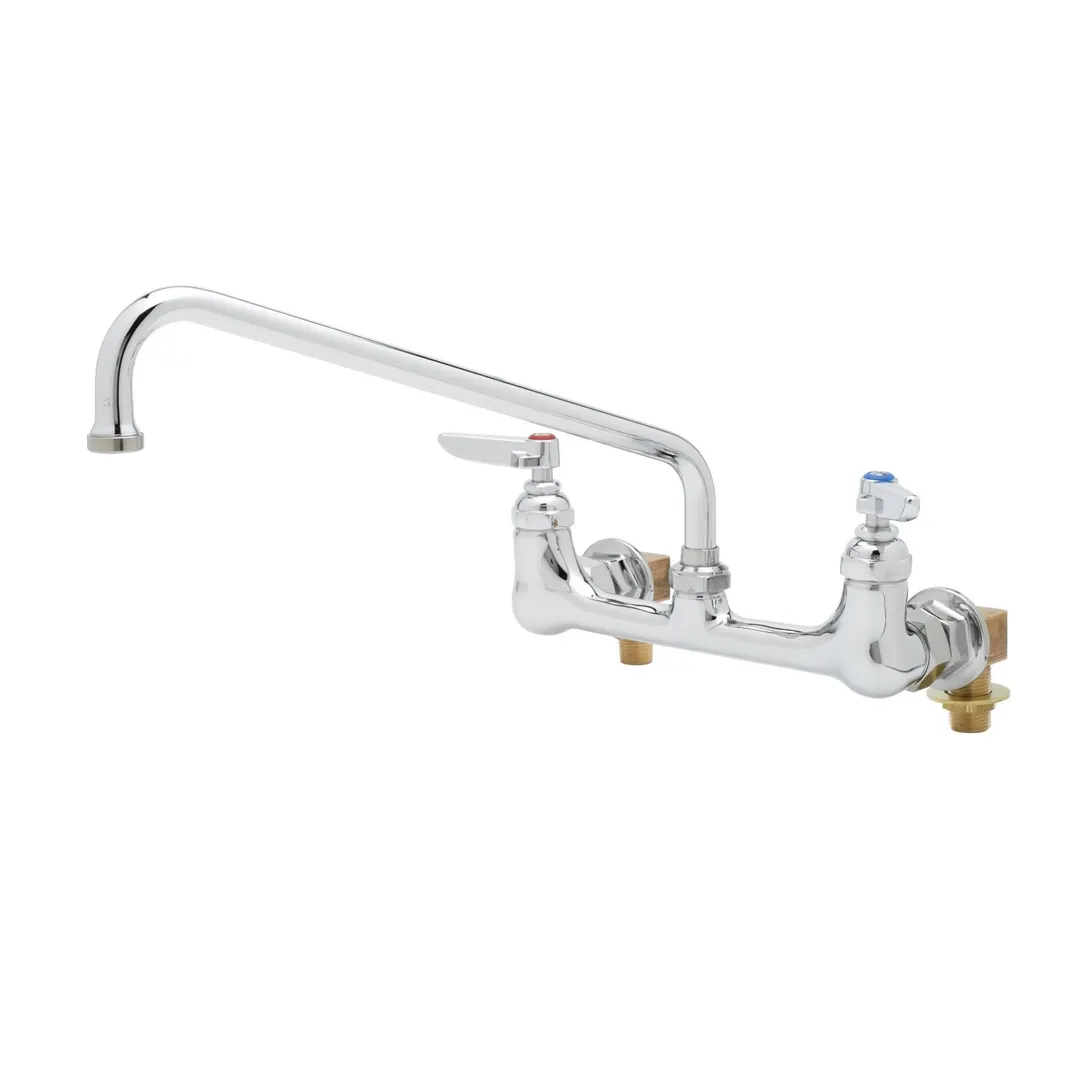

T&S Brass B-0230-CR-SC-EK B-0230, Quarter-Turn Cerama Cartridges, Low Lead

The image above may not exactly represent the product

$230.18/Each

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Works With

View All

T&S Brass B-TEE-EZK EasyInstall Tee Assembly, chrome-plated

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Submittal

Installation And Maintenance Instruc

T&S Brass B-0230-CR-SC-EK Specs

Manufacturer	T&S Brass
Model Number	B-0230-CR-SC-EK
Weight	6.7 lbs
Mounting	wall mount
Spout Length (overall)	17 - 19" spout
Lead Compliance	low lead
Spout / Nozzle Type	standard swing / swivel spout
Valve Type	ceramic valves

View All T&S Brass Products >

Works With

View All

T&S Brass B-TEE-EZK EasyInstall Tee Assembly, chrome-plated

Description

Reviews

T&S Brass B-0230-CR-SC-EK Swivel Pantry Faucet

General Info

The B-0230-CR-SC-EK, 8" wall mount mixing faucet with polished chrome plated brass body, 18" swing nozzle with stream regulator outlet, ceramic cartridges with check valves, lever handles and 1/2" NPT male inlets.

T&S Brass B-0230-CR-SC-EK Features

8” wall mount mixing faucet with polished chrome plated brass body
18” swing nozzle
Lock washer provided for rigid application
Stream regulator outlet, Series 1
Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
Lever handles w/ color coded indexes
1/2” NPT male inlet short elbows
Adjustable centers from 7 3/4” to 8 1/4”
Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles

T&S Brass B-0230-CR-SC-EK Specifications

Pressure Min/Max : 20 - 125 psi
Temperature Min/Max : 40 F - 180 F
Flow Rate :10.50 GPM @ 60 psi
Other Details : See spec. sheet

From The Manufacturer

B-0230, quarter-turn Cerama cartridges, low lead, ADA Compliant, B-0230-K elbows

Compare to Similar ItemsShop All Commercial Wall Mount Faucets

	T&S Brass B-0230-CR-SC-EK B-0230, Quarter-Turn Cerama Cartridges, Low Lead	T&S Brass 5F-8WLX18 Equip Faucet, 8" Centers, Wall Mount, 18" Swivel Nozzle	T&S Brass B-0230-CR-02 Faucet, 18 " Swing Nozzle, 8" Wall Mount,	T&S Brass B-0230-CR Sink Mixing Faucet, 18" Swing Nozzle, Wall Mounted	T&S Brass 5F-8WLX06 Equip Faucet, 8" Centers, Wall Mount, 6" Swivel Nozzle	T&S Brass 5F-8WLS06 Equip Faucet, 8" Centers, Wall Mount, 6" Swing Nozzle	T&S Brass 5F-8WLX16 Equip Faucet, 8" Centers, Wall Mount, 16" Swivel Nozzle	T&S Brass S-0230-U18-CR Ultrarinse 8” Wall Mount Mixing Faucet	T&S Brass 5F-8WLX10 Equip Faucet, 8" Centers, Wall Mount, 10" Swivel Nozzle
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Certifications	Certifications-	CertificationsADA Compliant	Certifications-	Certifications-	CertificationsADA Compliant	CertificationsADA Compliant	CertificationsADA Compliant	Certifications-	CertificationsADA Compliant
Manufacturer	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass	ManufacturerT&S Brass
Mounting	Mountingwall mount	Mountingwall mount	Mountingwall mount	Mountingwall mount	Mountingwall mount	Mountingwall mount	Mountingwall mount	Mountingwall mount	Mountingwall mount
Faucet Centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers	Faucet Centers8" centers
Spout Length (overall)	Spout Length (overall)17 - 19" spout	Spout Length (overall)17 - 19" spout	Spout Length (overall)17 - 19" spout	Spout Length (overall)17 - 19" spout	Spout Length (overall)6 - 7" spout	Spout Length (overall)6 - 7" spout	Spout Length (overall)15 - 16" spout	Spout Length (overall)17 - 19" spout	Spout Length (overall)10 - 11" spout
Lead Compliance	Lead Compliancelow lead	Lead Compliancelow lead	Lead Compliancelow lead	Lead Compliancelow lead	Lead Compliancelow lead	Lead Compliancelow lead	Lead Compliancelow lead	Lead Compliance-	Lead Compliancelow lead
Spout / Nozzle Type	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout	Spout / Nozzle Typestandard swing / swivel spout
Valve Type	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves	Valve Typeceramic valves
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)0	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)0	WIDTH (SIDE - SIDE)0	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)12.62	WIDTH (SIDE - SIDE)-
Construction	Construction-	Construction-	Construction-	Construction-	Construction-	Construction-	Constructionaluminum housing	Constructionaluminum housing	Constructionaluminum housing
