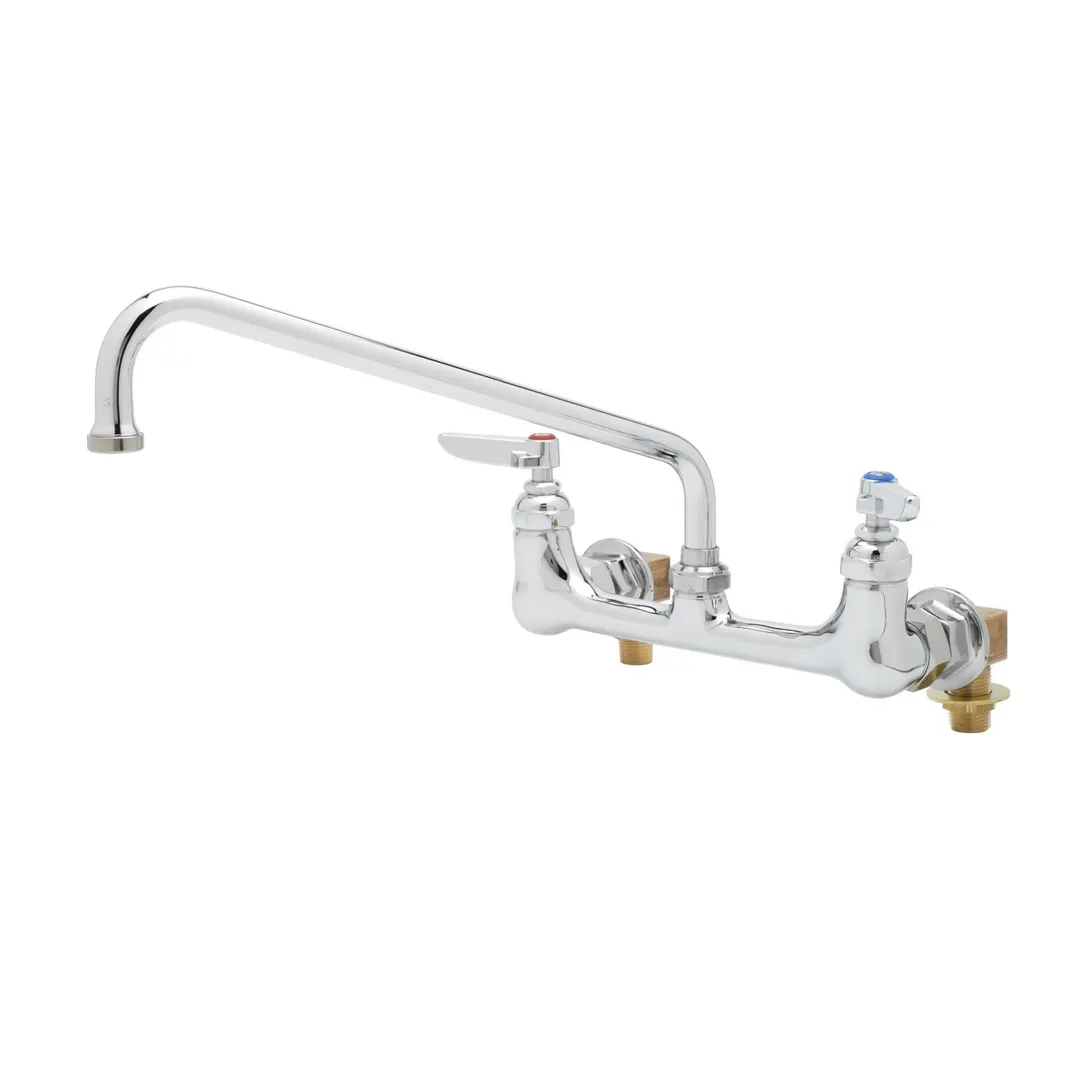

T&S Brass B-0233 Double Pantry Faucet
General Info
The B-0233, 8" wall mount mixing faucet with polished chrome plated brass body, 12" swing nozzle with 2.2 GPM vandal resistant aerator, compression cartridges with spring checks, lever handles, 1/2" NPT male inlets, 1/2"NPT supply stops and 36" flexible stainless steel hoses.
T&S Brass B-0233 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 12” swing nozzle
- Lock washer provided for rigid application
- 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT male inlets
- 1/2" NPT supply stops
- 36" Flexible stainless steel hoses 1/2" NPT male x 1/2" NPSM
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0233 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :23.09 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Sink Mixing Faucet, 12" swing nozzle, wall mounted, 8" centers, 1/2" NPT Fe. inlets, 2.2 GPM aerator, supply stops & hoses, quarter-turn Eterna cartridges, low lead, ADA Compliant
