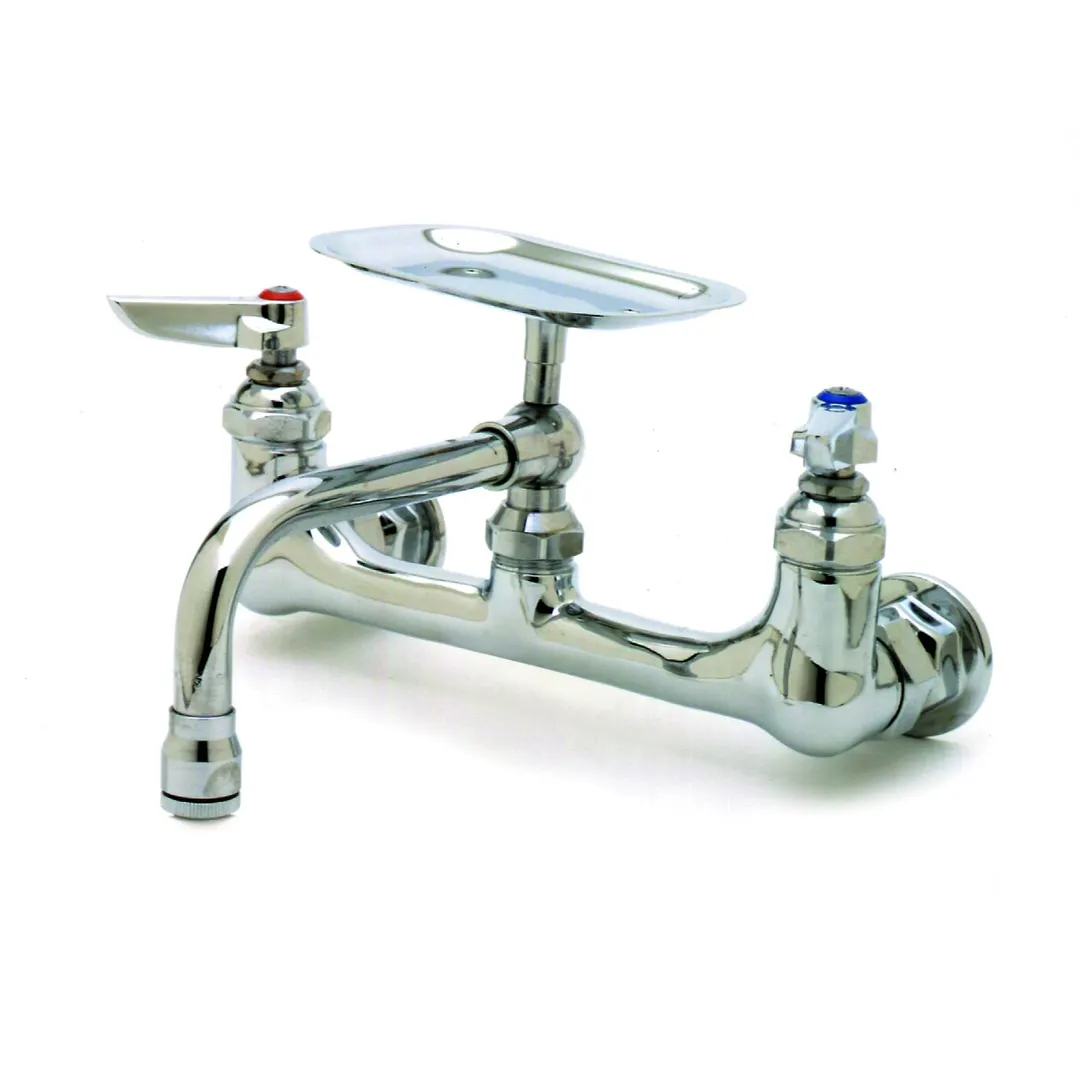

T&S Brass B-0233-01 Double Pantry Faucet
General Info
The B-0233-01, 8" wall mount mixing faucet with polished chrome plated brass body, 6" swivel/rigid nozzle with stream regulator outlet and soap dish, compression cartridges with spring checks, lever handles and 1/2" NPT femaleinlets.
T&S Brass B-0233-01 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 12” swing nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Adustable centers from 7 3/4" to 8 1/4"
- Lever handles w/ color coded indexes
- 1/2” NPT female inlets w/ Ø 2” flanges
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0233-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :16.50 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Sink Mixing Faucet, wall mounted, 160 x 6" soap dish nozzle, aerator, 8" centers with 1/2" IPS eccentric female inlets, lever handles, quarter-turn Eterna cartridges, low lead, ADA Compliant
