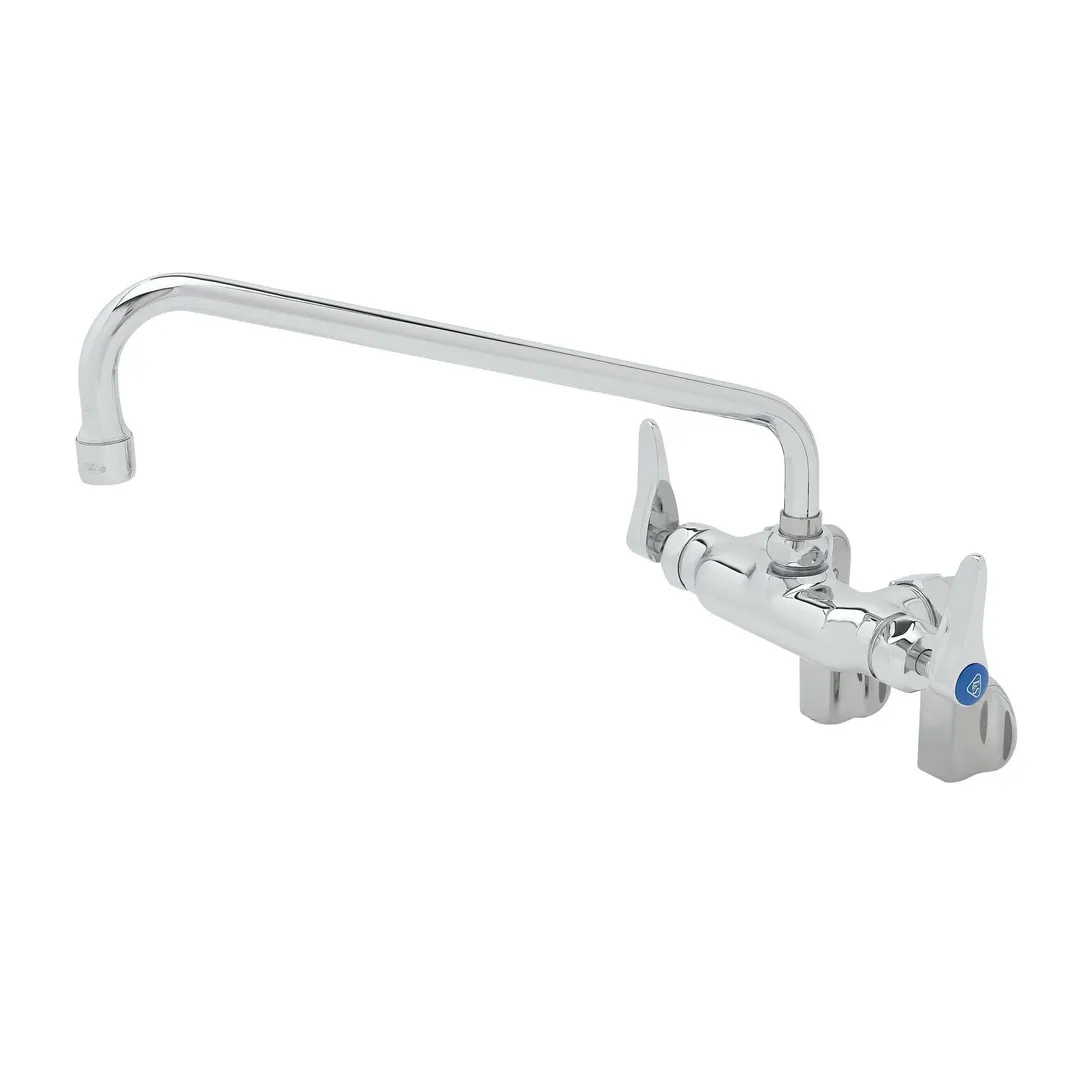

T&S Brass B-0236-CR-EK Double Pantry Faucet
General Info
The B-0236-CR-EK, Wall mount mixing faucet with polished chrome plated brass body, 12" swing nozzle with stream regulator outlet, ceramic cartridges w/ check valves, lever handles, adjustable arm flanges & 1/2" NPT male elbow installation kit.
T&S Brass B-0236-CR-EK Features
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- 12” swing nozzle
- Stream regulator outlet, Series 1
- Quarter-turn Cerama cartridges
- Lever handles w/ color coded indexes
- 2" adjustable arm flanges
- Adjustable centers from 2 1/4” to 8 1/4” above or below centerline
- 1/2" NPT male elbow installation kit
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0236-CR-EK Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 180 F
- Flow Rate :9.51 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Double Pantry Faucet, splash/wall mount, 2-1/4" TO 8-1/4" adjustable centers, 12" swing spout with stream regulator, quarter-turn Cerama cartridges, lever handles with color coded indexes, 1/2" NPT male elbow installation kit, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
