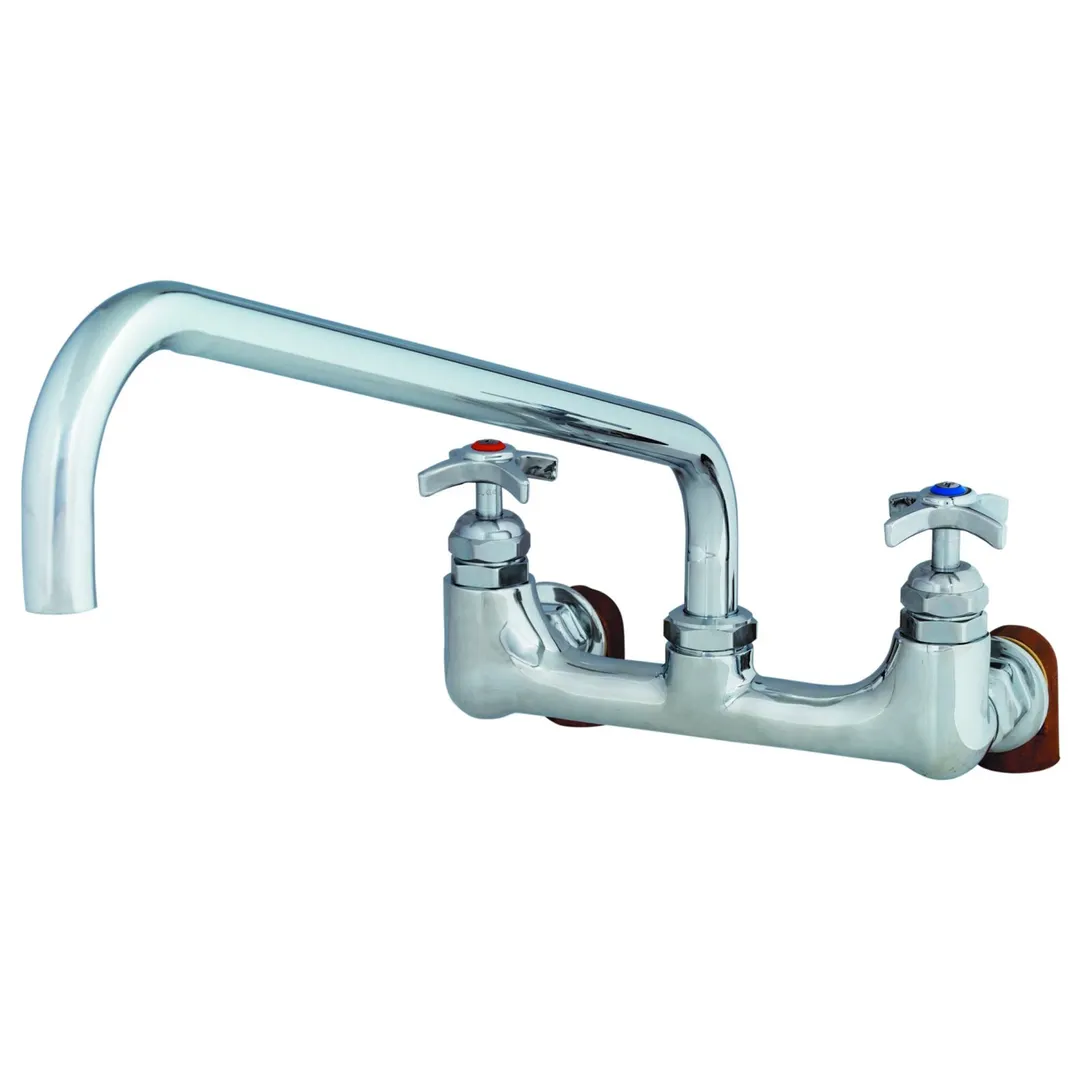

T&S Brass B-0291 Big-Flo Mixing Faucet
General Info
The B-0291, 8" wall mount large flow mixing faucet with polished chrome plated brass body, 18" swing nozzle with plain end outlet, compression spindles, 4-arm handles, 3/4" NPT female inlets and 3/4" NPT female short inlet elbows.
T&S Brass B-0291 Features
- 8” wall mount Big-Flo mixing faucet w/ polished chrome plated brass body
- 18” Big-Flo plain end swing nozzle
- Lock washer provided for rigid application
- Big-Flo compression cartridges
- 4-arm handles w/ color coded indexes
- 3/4" NPT female eccentric inlets w/ 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4“
- 3/4” NPT female short elbows
- Material: Polished chrome plated brass body, tubular spout and chrome plated metal handles
T&S Brass B-0291 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 44.27 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Kettle & Pot Sink Faucet, Big-Flo, wall mounted 8" centers, 3/4" IPS model LL street EL inlets with locknuts, 18" swing nozzle, 175°F four arm handles, 1-1/4" dia. holes required in backsplash
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
