T&S Brass B-0342-LN Double Pantry Faucet
General Info

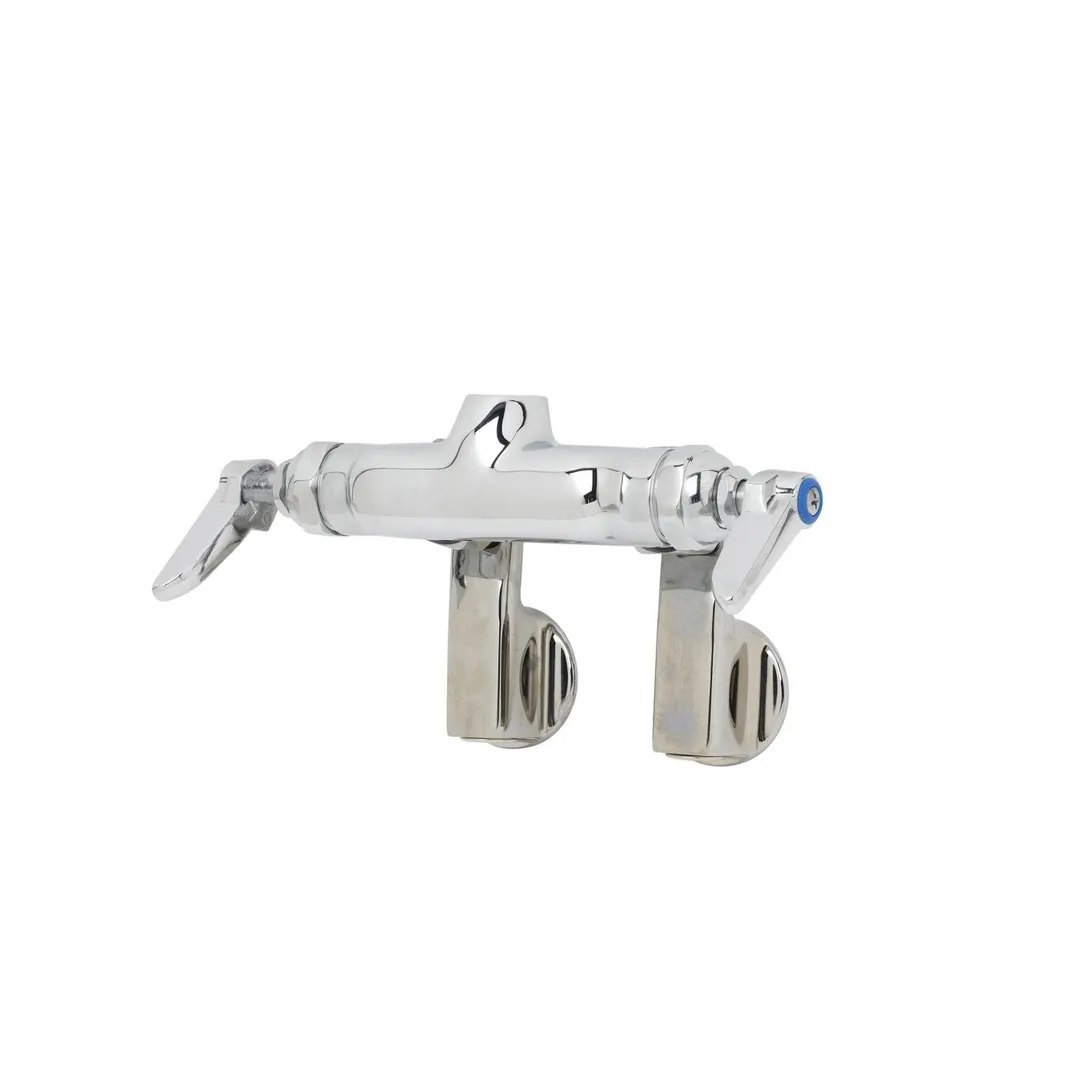

The B-0342-LN, Adjustable wall mount mixing faucet with polished chrome plated brass body, swivel outlet (less nozzle), compression cartridges with spring checks, lever handles, 1/2" NPT female adjustable arm inlets and integral service stops.
T&S Brass B-0342-LN Features
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- Swivel outlet accepts standard T&S swing nozzles
- Includes EZ-K kit to convert rigid risers to EasyInstall
- Quarter-turn Eterna compression cartridges with spring checks to prevent crossflow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female adjustable arm inlets w/ Ø2” flanges
- Integral service stops
- Adjustable centers from 2 1/4” to 8 1/4” above or below centerline
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0342-LN Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 12.30 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Faucet, splash mounted, rigid base only, 4" OC, 1/2" IPS female with flange, lever handles, quarter-turn Eterna cartridges, low lead, ADA Compliant
