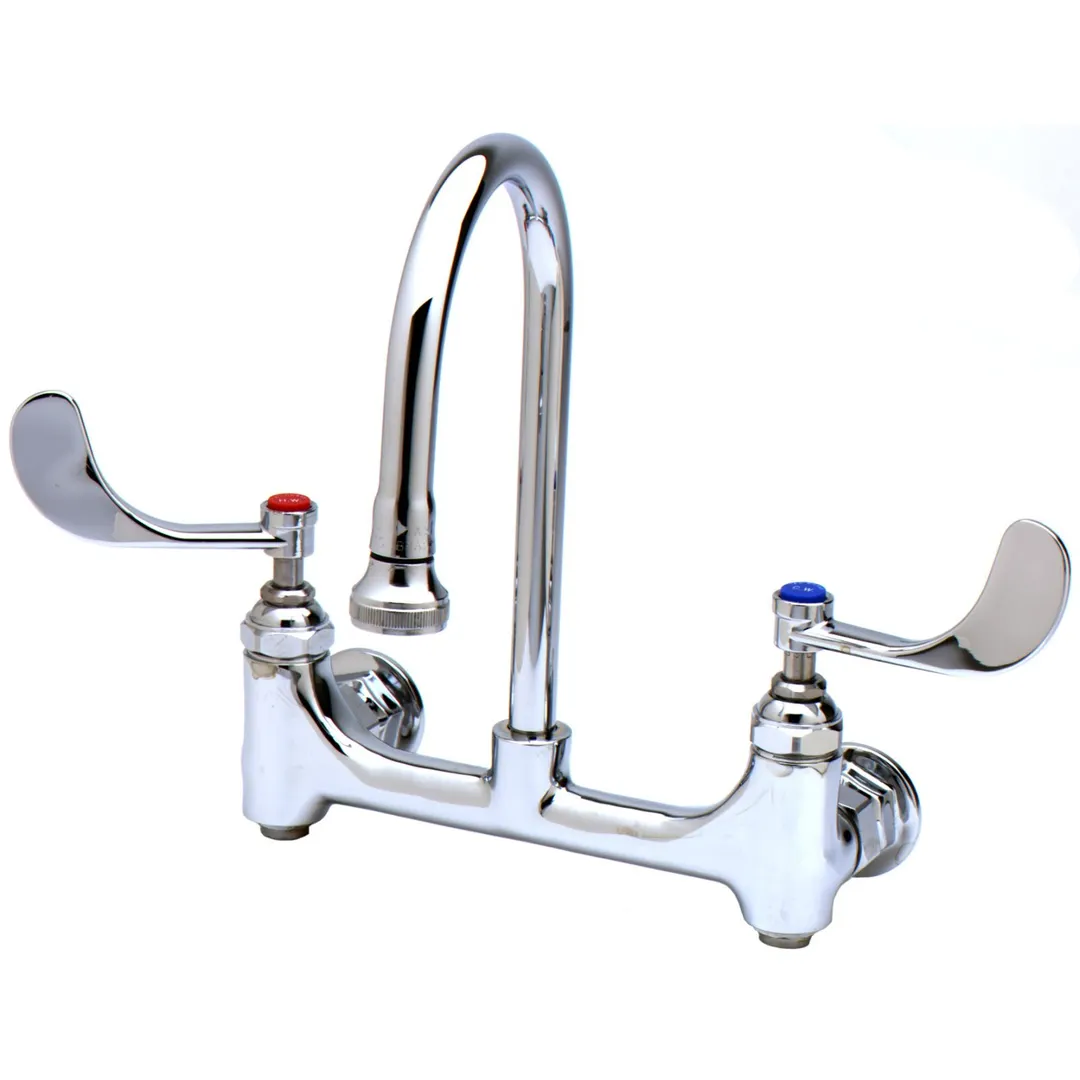

T&S Brass B-0352-04 Swivel Sink Faucet
General Info
The B-0352-04, 8" wall mount mixing faucet with polished chrome plated brass body, built-in service stops in body, 5 3/4" swivel/rigid gooseneck with rosespray outlet, compression cartridges with spring checks, 4" wrist actionhandles handles and 1/2" NPT female inlets.
T&S Brass B-0352-04 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- Built-in service stops in body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Rosespray outlet, Series 6
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4” wrist action handle w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0352-04 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :2.2 GPM [8.3 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Medical Faucet, wall mount, 8" centers, 6" rigid gooseneck with rosespray, 4" wrist handles, built-in-stops, 1/2" NPT, Eterna cartridges, low lead, ADA Compliant
