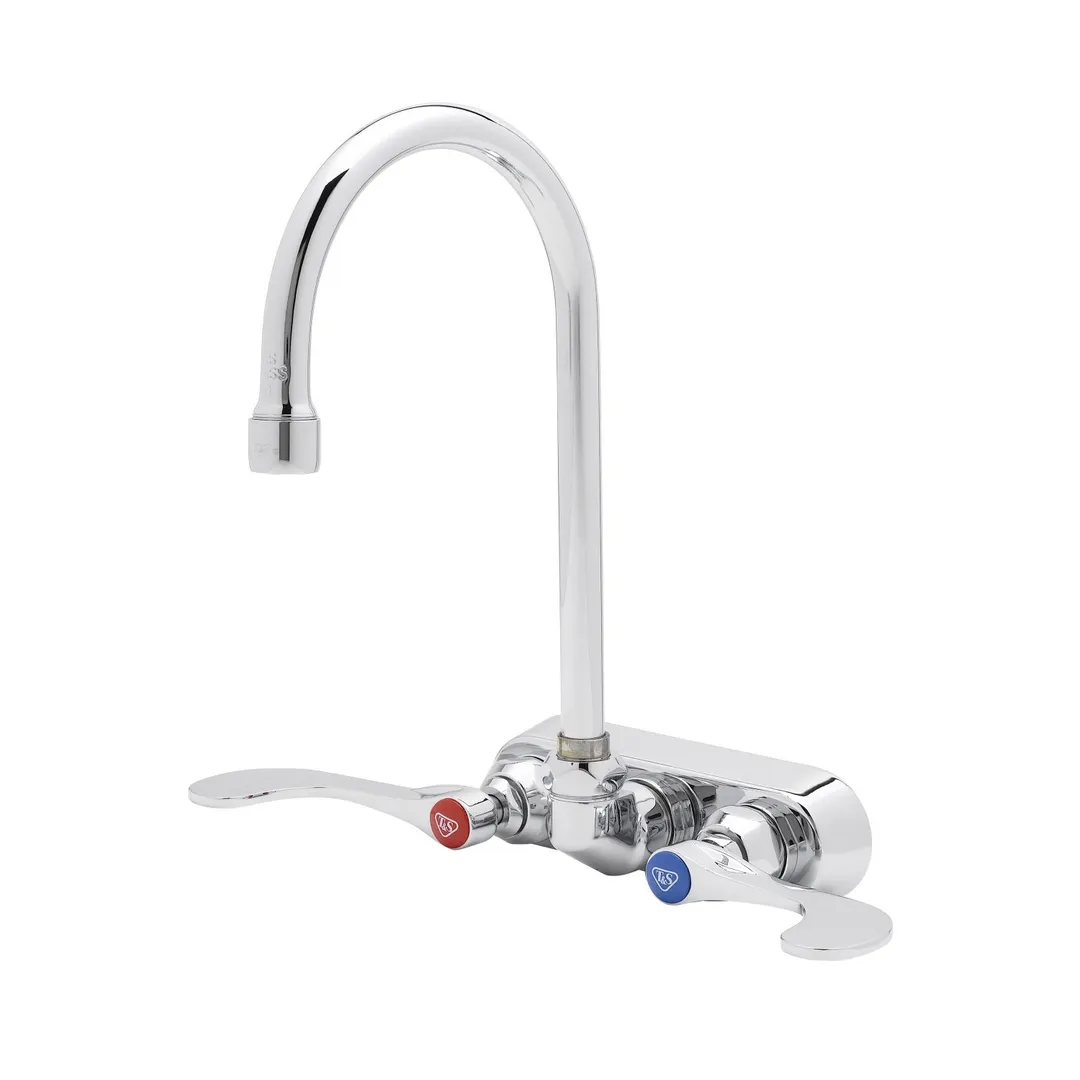

T&S Brass B-1146-04XS-F12 Workboard Mixing Faucet
General Info
The B-1146-04XS-F12, 4" wall mount mixing faucet with chrome plated brass body, 5 3/4" swivel gooseneck with 1.2 GPM aerator, compression cartridges with spring checks, 4" wrist action handles, 1/2" NPSM male extended shanks andchrome plated escutcheon.
T&S Brass B-1146-04XS-F12 Features
- 4" wall mount mixing faucet w/ chrome plated brass body
- 5 3/4” swivel gooseneck
- 1.2 GPM aerator, Series 1 (B-0199-01-F12)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4" wrist action handles w/ color coded indexes
- 1/2” NPSM male extended shanks
- Tailpieces and nuts for 1/4” NPT male connections
- Chrome plated escutcheon
- Material: Chrome plated brass body & tubular spout and chrome plated metal handles & escutcheon
T&S Brass B-1146-04XS-F12 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 180 F
- Flow Rate : 1.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Workboard Faucet, wall mount, 4" centers, 5-3/4" swivel gooseneck nozzle (includes lock washer to convert to rigid), 1.2 GPM aerator, quarter-turn Eterna cartridges with spring checks, 4" wrist blade handles, 1/2" NPSM extended male inlets, ADA Compliant
