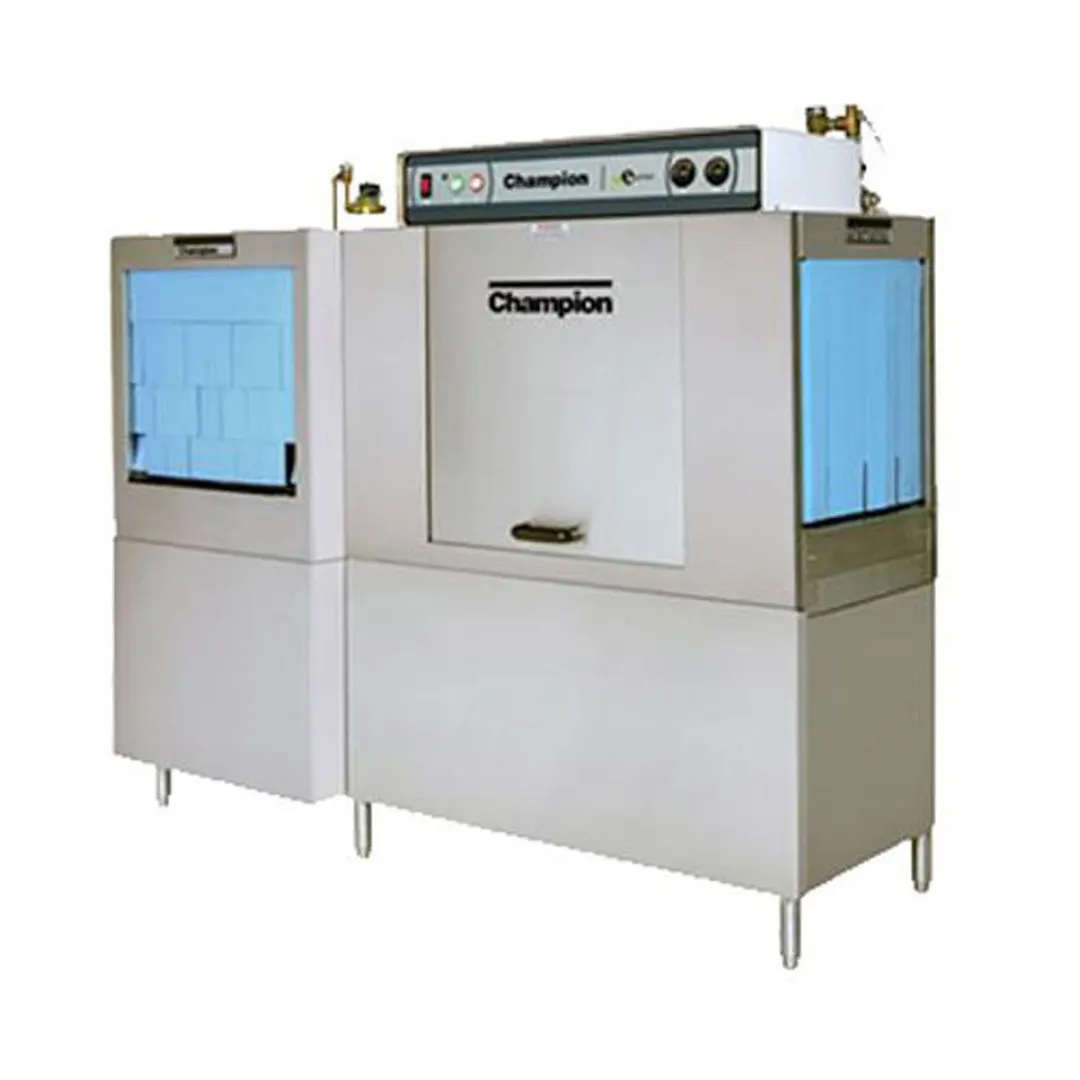

Champion PRO SERIES 86 PRO-FF HR Electric Two-Tank Heat Recovery High Temperature Rack Conveyor Dishwashing Machine
Standard Features:
- NEW Two-Tank Heat Recovery Technology
- No Type II exhaust hood required
- Saves up to 13kW during operation
- Less than 70° conditioned air back into the dish room
- Patent Pending modulation valve pressure system
- NEW cOS 2.0 Advanced Operating System
- Perpetual rack advance system, with intuitive jam alert, and drive protection
- Proportional rinse, delivering unmatched total ware coverage, utilizing digital pattern cloning, stainless steel nozzles
- 348 racks per hour
- 100 GPH with energy sentinel (idle pump shut-off)
- Top Mounted Prodigy series HMI User Interface
- Proactive maintenance interface, selfdiagnostics, problem recognition, with repair recommendation, from HMI touch screen
- Programmable machine dwell with automatic rack alignment into the optimal wash zone
- Automatic drain valve Exclusive!
- Single-piece hood design
- Single-piece stainless steel upper and lower wash arm manifolds
- 20" standard vertical clearance which accommodates 18" x 26" sheet pans
- Full 180° opening leak proof insulated hinged access doors
- Stainless steel heavy gauge construction including base, legs and feet
- Enclosure panels (front and sides)
- Factory Authorized Start-up
- Made in America
Specifier Statement:
Specified unit will be Champion Model 86 PRO-FF HR Series Two-Tank Heat Recovery high temperature Front Feeding rack conveyor dishwashing machine. Features top mounted Prodigy HMI user interface controls with proactive maintenance software, proportional rinse, using only 100 GPH, built-in 21 kW booster, progressive anti-jam drive system, energy sentinel (idle pump shut-off ), 348 racks per hour, single-piece hood design, single-piece stainless steel upper & lower wash arms manifolds, full 180° opening leak proof insulated hinged access doors. 1 year parts and labor warranty.
From The Manufacturer
Pro Series Conveyor Dishwasher, 86"W, (64" two tank + 22", front feed, prewash), Proportional Rinse, Progressive anti-jam drive system, top mounted Prodigy series HMI user interface, Proactive maintenance software,100 gallons per hour with energy sentinel (idle pump shut-off), (348) racks per hour, single-piece hood design, single-piece stainless steel upper & lower wash arms manifolds, internal removable scrap basket, dual-piece scrap screens, 20” standard vertical clearance, full 180° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, leak-proof automatic drains, lower front & side enclosure panels, stainless steel heavy gauge construction including base & legs, electric tank with heat recovery, heat recovery cabinet to come standard with single vent cowl, internal booster heater included,2 HP prewash and wash/rinse pumps, dual point machine & booster connection, vent fan control, stainless steel rear manifolds, NSF, cULus, Energy Star, Made in USA
