Insinger ADMIRAL 66" Conveyor Dishwasher, 234 Racks/Hr - 147 Gal/Hr - High Temp w/Booster

SKU INS-ADMIRAL 66-4

$45,090.00/Each

Free Shipping

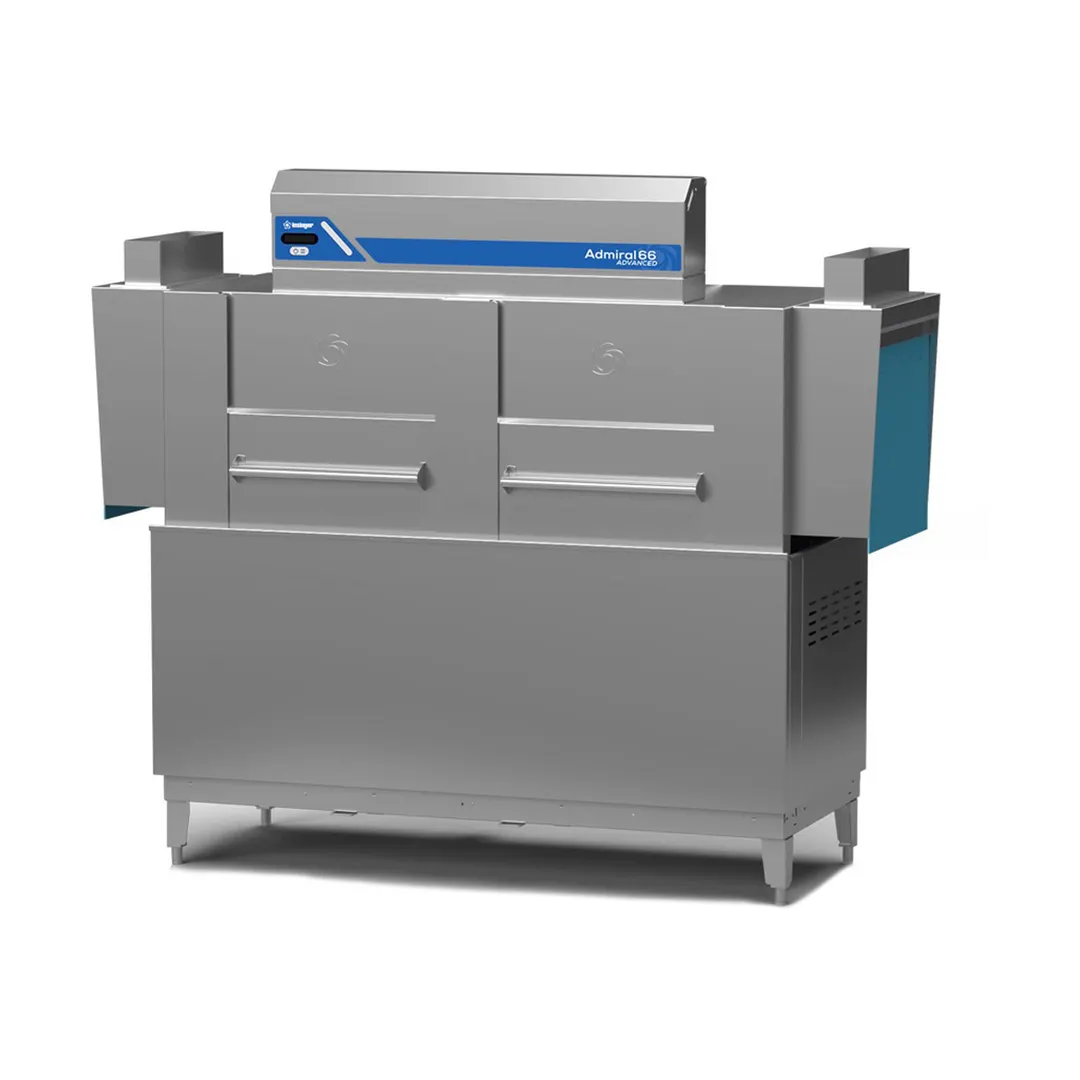

Insinger ADMIRAL 66" Conveyor Dishwasher, 234 Racks/Hr - 147 Gal/Hr - High Temp w/Booster

The image above may not exactly represent the product

$45,090.00/Each

0% Interest for 30 Days with

Small payments, big returns—view financing details now!

Instant Rebate

Resources

Spec Sheet

Insinger ADMIRAL (66") Specs

Manufacturer	Insinger
Model Number	ADMIRAL (66")
Weight	800 lbs
Width	65.5″
Depth	31.25″
Height	37.38″
Temperature	high temp with booster
Energy Efficiency	ENERGY STAR®
Rack capacity	approximately (234) racks/hour
Construction	stainless steel
Tank design	(1) tank with pre-wash
Tank Heat	electric
Voltage	208, 240, 480
Pre-Wash Length	22" pre-wash
Phase	3
Water Consumption(Approx)	147 Gallons Per Hour
Conveyor Length	66"

View All Insinger Products >

Description

Reviews

Insinger Admiral 66 Advanced Single Tank Rack Conveyor Dishwasher

Standard Features:

CrossFire Wash System
Color-coded curtains
Tank heat: integrated booster
Heat and energy saving transfer system
Manifold clean-out brush
S/S 304 stainless steel construction
Automatic tank fill
Low water protection
Single point electrical connection: motor, controls and tank heat
Detergent connection provision
Elevated top mounted control panel
Door safety switches
Standard frame drip proof motors
Override switch for de-liming
SureFire Start-Up & Check-Out Service
Ventilation fan connection provision
End caps/pipe plugs secured to prevent loss
VFD controlled continuous drive conveyor
0.63 gallons per rack at 20 PSI
Capacity is 233 (20” x 20”) racks per hour or 5,825 dishes per hour
Telescoping doors allow for efficient daily cleaning
Dual IS Booster System built into the machine

From The Manufacturer

Single Tank Rack Conveyor Dishwasher. Automatic conveyor, rack type, single tank dishwasher with recirculating pre-wash, wash and fresh water final rinse. 0.63 gallons per rack at 20 PSI. Capacity is 234 (20” x 20”) racks per hour or 5,225 dishes per hour. VFD controlled continuous drive conveyor. Telescoping doors allow for efficient daily cleaning. Dual IS Booster System built into the machine.

Compare to Similar ItemsShop All Conveyor Dishwashers

	Insinger ADMIRAL 66" Conveyor Dishwasher, 234 Racks/Hr - 147 Gal/Hr - High Temp w/Booster Free Shipping	Insinger ADMIRAL VG 66" Conveyor Dishwasher, 234 Racks/Hr - 147 Gal/Hr - High Temp with Booster Free Shipping	Insinger ADMIRAL VG 44" Conveyor Dishwasher, 234 Racks/Hr - 147 Gal/Hr - High Temp with Booster Free Shipping	Insinger ADMIRAL 44" Conveyor Dishwasher, 234 Racks/Hr - 147 Gal/Hr - High Temp w/ Booster Free Shipping	Champion 66 PRO-FF-HR 66" Conveyor Dishwasher, 209 Racks/Hr - 100 Gal/Hr - High Temp with Booster Free Shipping	Champion 66 PRO-FF 66" Conveyor Dishwasher, High Temp with Booster / 209 Racks/Hr - 100 Gal/Hr Free Shipping	Jackson WWS RACKSTAR 66CE ENERGY RECOVERY 66" Conveyor Dishwasher, 223 RPH - High Temp w/Booster Free Shipping	Champion 66 PRO 66" Conveyor Dishwasher, 209 Racks/Hr - 100 Gal/Hr - High Temp w/Booster Free Shipping	Moyer Diebel MD-66+ 66" Conveyor Type Dishwasher, 2HP Wash / 209 Rack/Hour - 48 Gal/Hour Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Tank Heat	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric
Voltage	Voltage208, 240, 480	Voltage208, 240, 480	Voltage208, 240, 480	Voltage208, 240, 480	Voltage208, 240, 480, 575	Voltage208, 240, 480, 575	Voltage208, 230, 460	Voltage208, 240, 480, 575	Voltage208, 240, 480
Phase	Phase3	Phase3	Phase3	Phase3	Phase3	Phase3	Phase1, 3	Phase3	Phase3
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)65.5	WIDTH (SIDE - SIDE)0	WIDTH (SIDE - SIDE)0	WIDTH (SIDE - SIDE)43.5	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)82	WIDTH (SIDE - SIDE)86	WIDTH (SIDE - SIDE)82	WIDTH (SIDE - SIDE)0
Manufacturer	ManufacturerInsinger	ManufacturerInsinger	ManufacturerInsinger	ManufacturerInsinger	ManufacturerChampion	ManufacturerChampion	ManufacturerJackson WWS	ManufacturerChampion	ManufacturerMoyer Diebel
Rack capacity	Rack capacityapproximately (234) racks/hour	Rack capacityapproximately (234) racks/hour	Rack capacityapproximately (234) racks/hour	Rack capacityapproximately (234) racks/hour	Rack capacityapproximately (209) racks/hour	Rack capacityapproximately (209) racks/hour	Rack capacityapproximately (223) racks/hour	Rack capacityapproximately (209) racks/hour	Rack capacityapproximately (209) racks/hour
Construction	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel
Tank design	Tank design(1) tank with pre-wash	Tank design(1) tank with pre-wash	Tank design(1) tank without pre-wash	Tank design(1) tank without pre-wash	Tank design(1) tank with pre-wash	Tank design(1) tank with pre-wash	Tank design(1) tank with pre-wash	Tank design(1) tank with pre-wash	Tank design(1) tank with pre-wash
Temperature	Temperaturehigh temp with booster	Temperaturehigh temp with booster	Temperaturehigh temp with booster	Temperaturehigh temp with booster	Temperaturehigh temp with booster	Temperaturehigh temp with booster	Temperaturehigh temp with booster	Temperaturehigh temp with booster	TemperatureNo
Energy Efficiency	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®	Energy EfficiencyENERGY STAR®
Certifications	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNSF, cULus, Made in USA	CertificationsNSF, cULus, Made in USA, ENERGY STAR	Certifications-	Certifications-	CertificationsNSF, cULus, Made in USA, ENERGY STAR
Special Features	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special Featuresfront feeding model	Special Featuresfront feeding model	Special Features-	Special Features-	Special FeaturesNo
