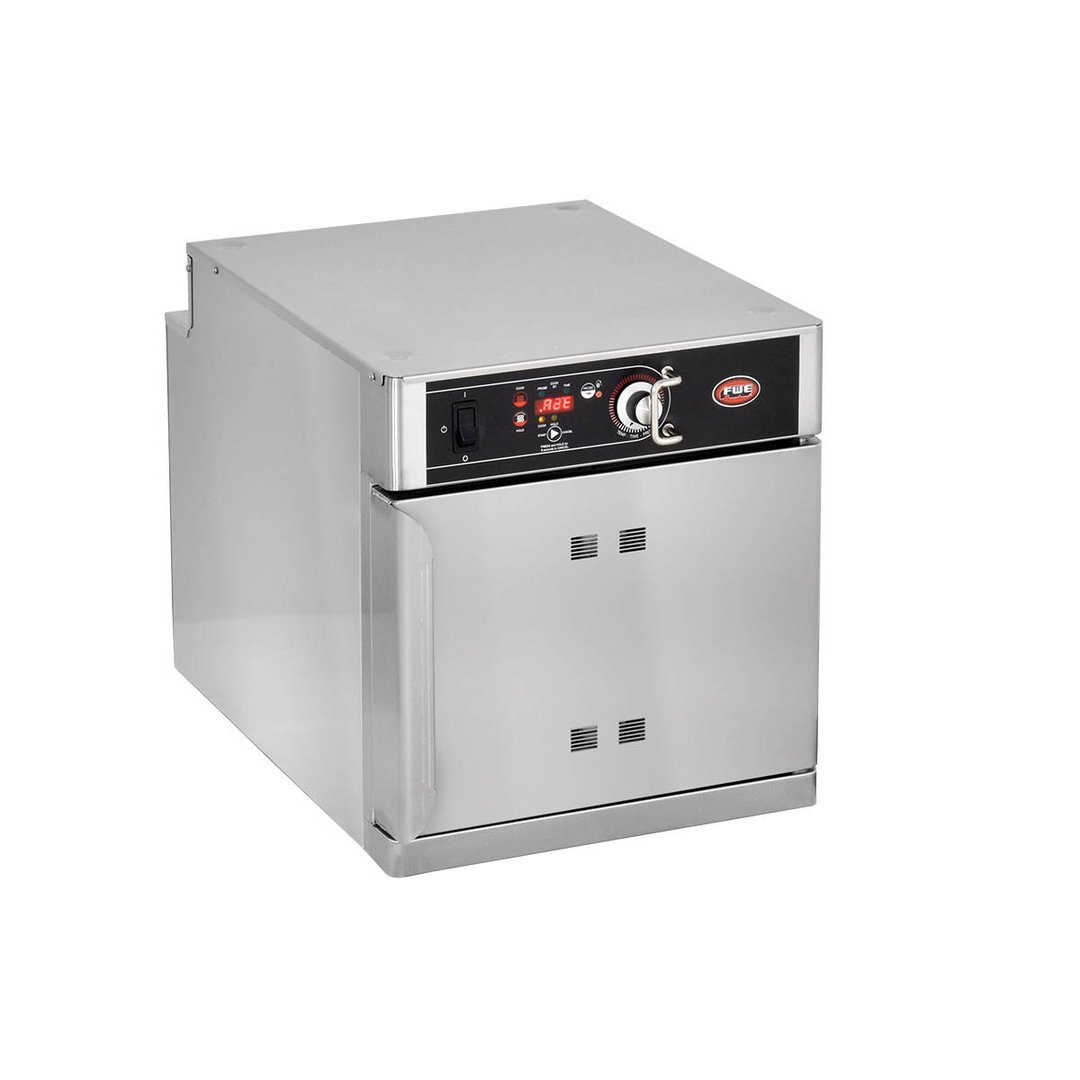

FWE LCHR-1220-4 Cook/Hold Oven Cabinets

General Informations

The LCHR-1220-4 is provided with a fixed rack at 2.625" spacings. Slides are designed to accommodate 12" x 20", GN 1/1, or 18" x 13". Ideal for countertop use or built in applications – sized perfect for smaller volume operations or volume feeders with constant replenishment, restaurants and food court operations.

Construction

Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times.

Control Panel

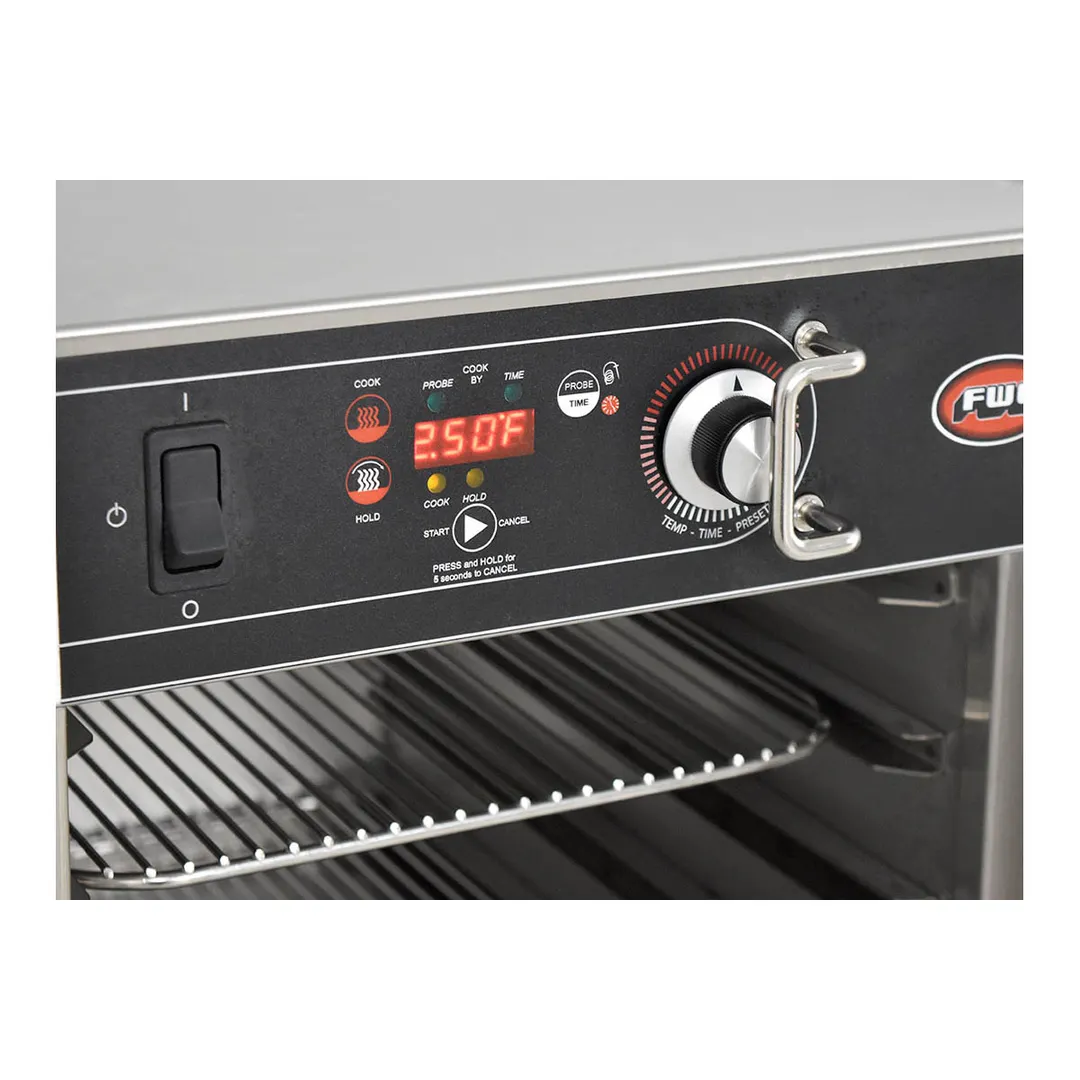

Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Cook and Hold Controls - Intuitive, easy to use and kitchen friendly controls allow for 8 programmable recipes for consistent results. Provided with an internal product probe, allows for options to cook and hold by probe or by time without constant monitoring.

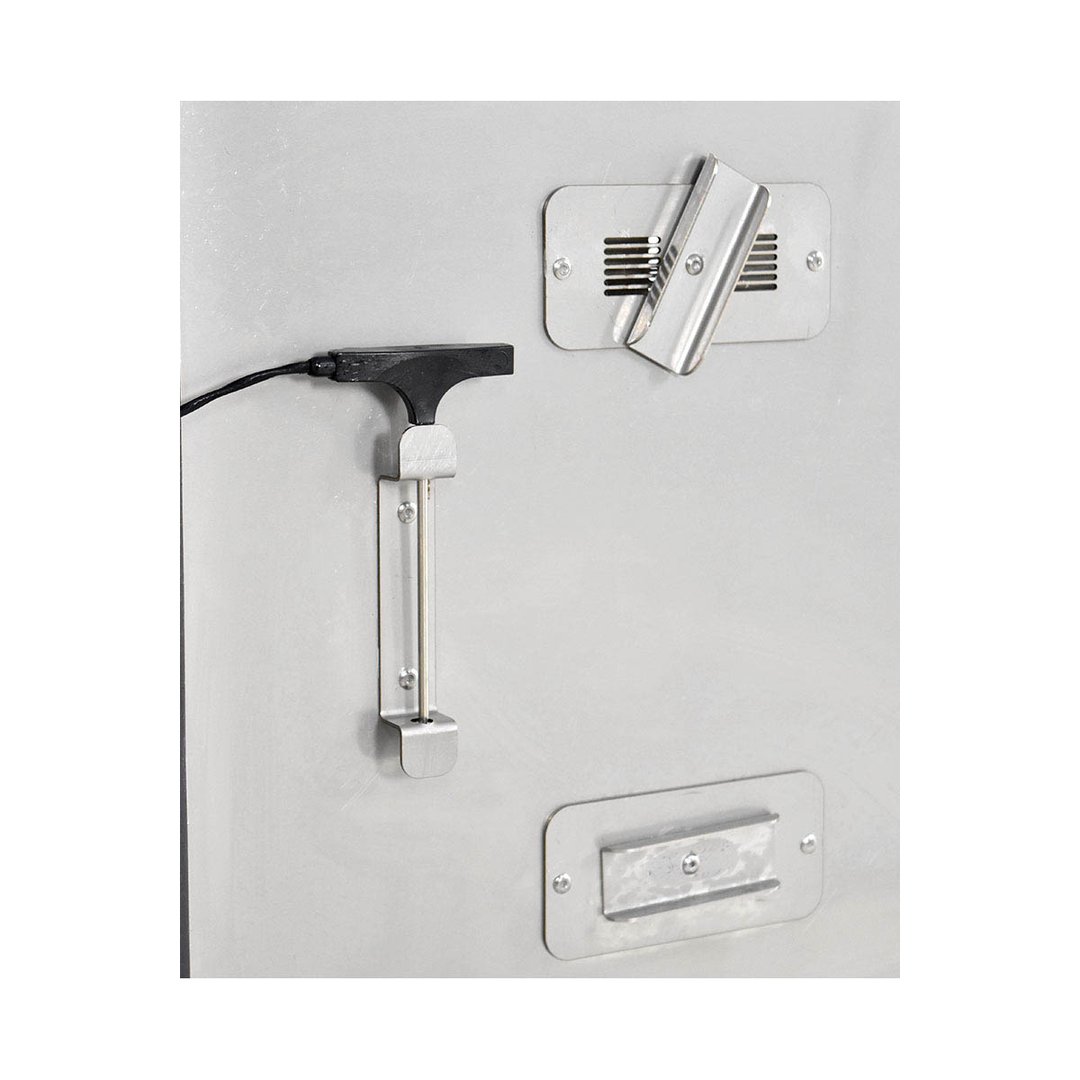

Vented Doors

Adjustable door vents; allows desired holding conditions from moist to crisp foods, achieving optimal results.

Heat System

LCHR Heat System - Built-in heat system with uniform low watt density radiant heat source that creates highly accurate temperature tolerances throughout the cooking and holding functions.Heat system provides fast heat up, recovery and accurate temperature set points.

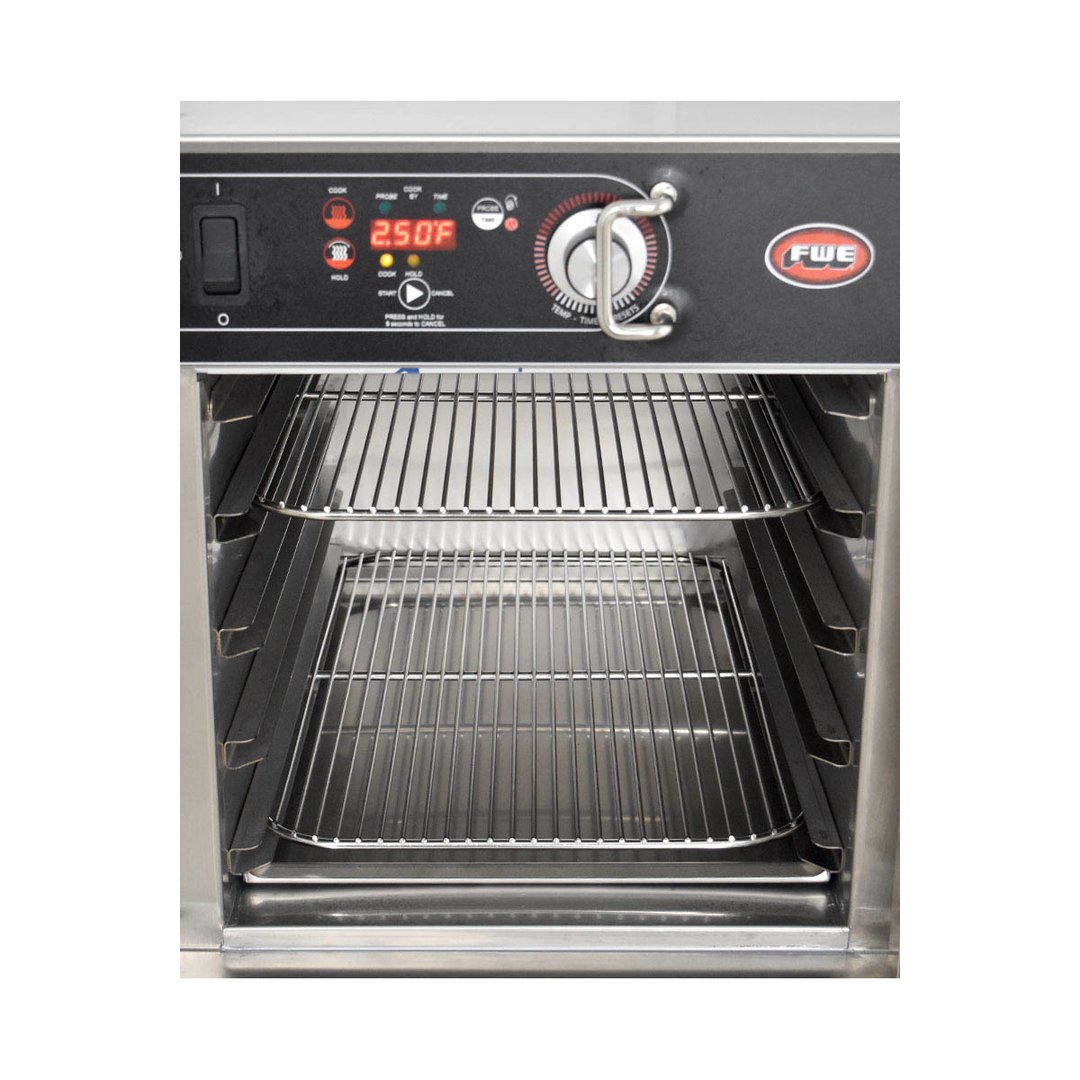

Slides and Shelves

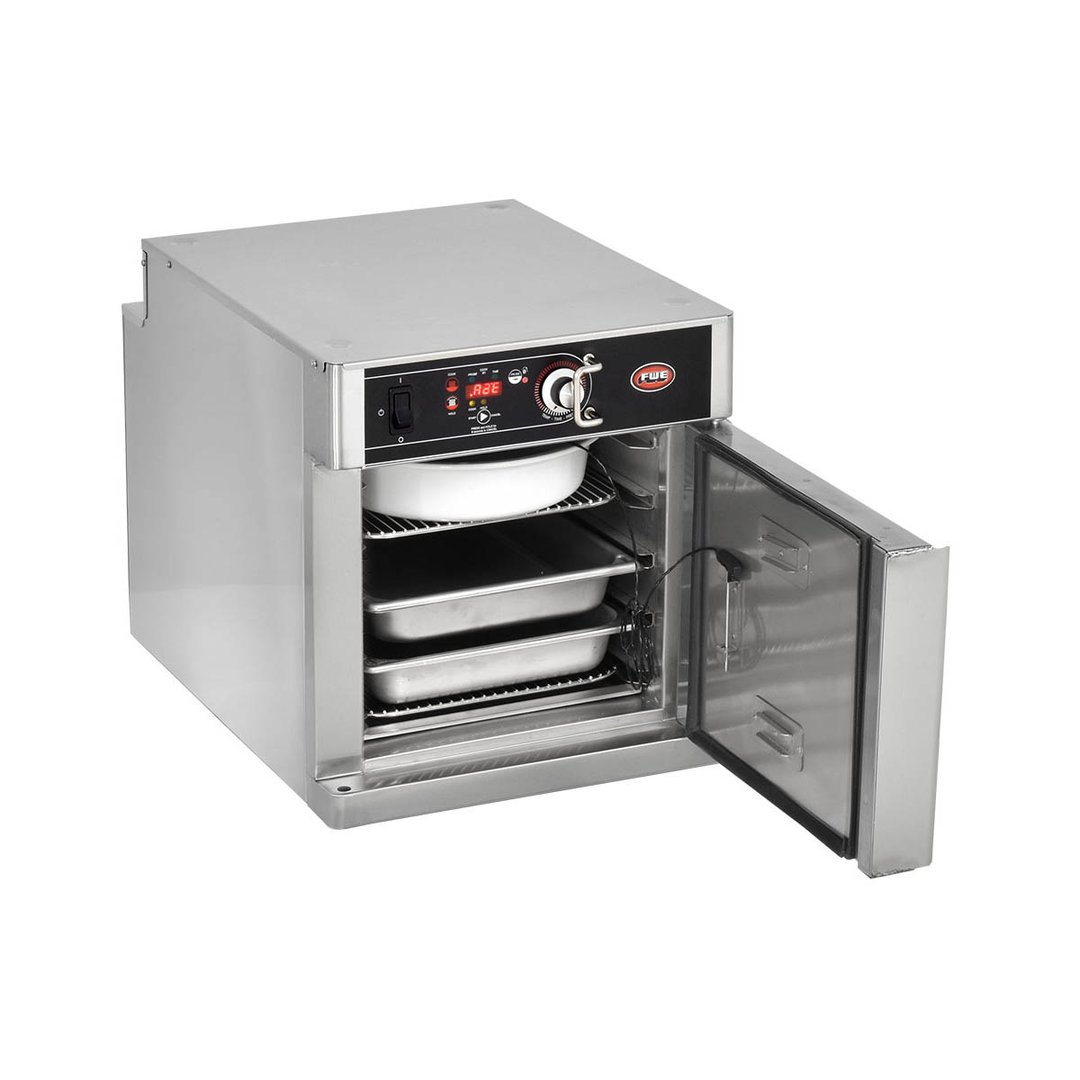

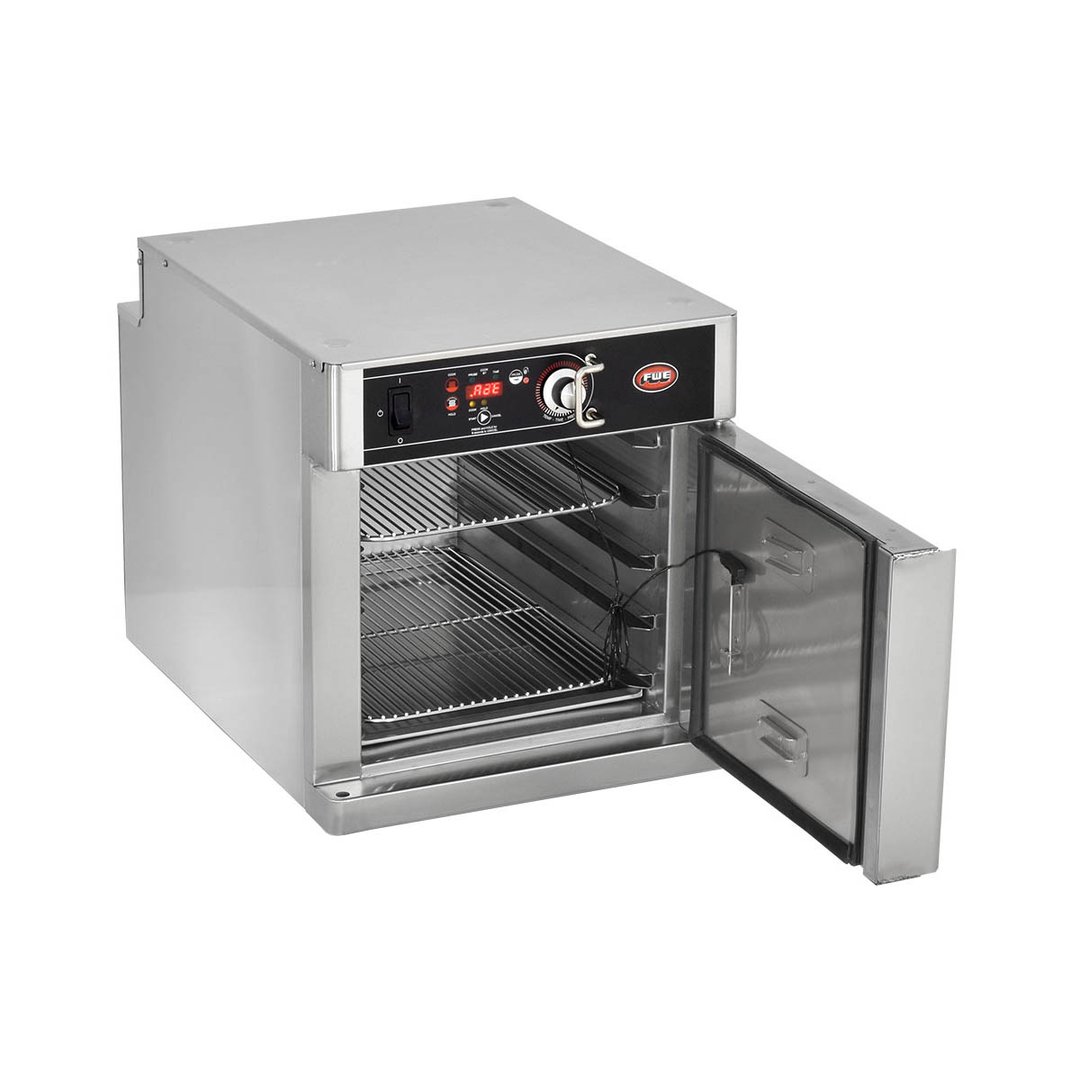

Fixed Slides for 12x20 Pans with Stainless Shelves - Accommodates shallow and and deep 12" x 20" pans , 18" x 13" trays and GN 1/1 containers. Unique pan slides racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning. Provided with removable and adjustable stainless steel shelves.

FWE LCHR-1220-4 Specifications

OVERALL EXTERIOR DIMENSIONS IN. (mm) : 20.5″ (521) H X 26.25" (667) D X 18" (457) W
NO. OF DOORS : 1
SHIP WT. LBS.(KG) : 125(57)
OTHER DETAILS : See Spec. Sheet

From The Manufacturer

Cook & Hold Oven, countertop, (4) 12" x 20" x 2-1/2" deep or (4) 1/1 GN 65mm deep pan capacity, 2-5/8" fixed spacing, (2) stainless steel shelves, (8) programmable recipes, cooking temperature up to 250°F, holding temperature up to 200°F, LED display, insulated, (1) flush mounted door, temperature probe, removable drip pan & exterior drip tray, stainless steel interior & exterior, UL, cULus, UL EPH CLASSIFIED ANSI NSF 4

Manufacturer	FWE
Model Number	LCHR-1220-4
Weight	125 lbs
Depth	26.25″
Height	20.75″
Exterior Finish	all stainless steel exterior
Interior Finish	stainless steel interior
Width	18.25″
Control Type	thermostatic control
Cabinet Type	quarter height
Compartment Qty	(1) compartment
Installation Type	countertop
G/N Pan Capacity	(4) 1/1 pans
Power Type	electric
