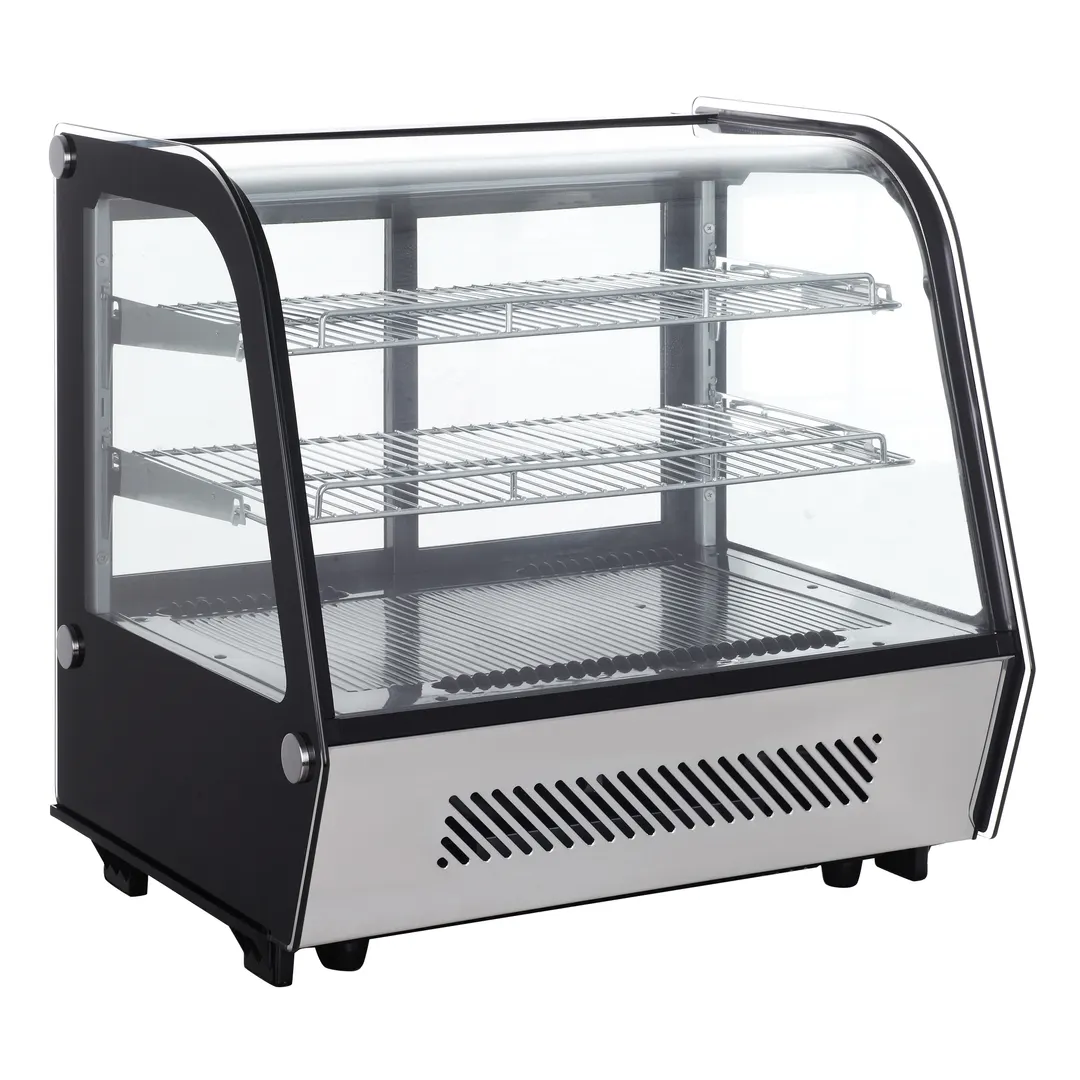

The BakeMax BMREF28 New Titan Series Full-Service Refrigerated Display Cases

Why Use BakeMax Display Cases?

The BakeMax BMREF Titan Series Countertop Refrigerated Display Case is great for Restaurants, Cafes, Cafeterias, Hotels and more. This unit will help you increase your impulse sales with its beautiful curved glass design and LED lights.

BakeMax BMREF28 Standard Features

Available in 28” wide (BMREF28) or 35” wide (BMREF35)
Temperature range: 0-12°C / 32 - 54°F
Forced air circulation, providing air flow around your products
4 sides of double glass panels
360° product view
Curved front glass provides an elegant look
Internal LED top lighting for enhanced product display
Sliding back doors for easy access to your products
Digital temperature display & Controls
Adjustable chrome plated shelves, with a shelf load capacity: 32lb each
Ventilated cooling system
Environment friendly R290 refrigerant
Automatic defrost

BakeMax BMREF28 Technical Specification

Exterior Dimensions (WDH): 27.6” x 22.5” x 27”
Shelf Sizes (WD): Top 25” x 13.25”, Bottom 25” x 14.5”
Shelf Max Load Capacity: 32lb
Electrical: 120v /160 watts / 60Hz /1 Ph
Nema: 5-15P Plug
R290 Refrigerant
Net Weight: 141 Ib / 64 kg

From The Manufacturer

Titan Series Refrigerated Display Case, countertop, full service, 28"W, curved front glass, glass side panels, (2) rear sliding glass doors, (2) adjustable chrome plated wire shelves, interior LED lighting, 32°-54°F temperature range, digital temperature display & controls, automatic defrost, R290 refrigerant, 160 watts, 120v/60/1-ph, NEMA 5-15P, cQPSus, CE, RoHS

Manufacturer	BakeMax
Model Number	BMREF28
Weight	146 lbs
Width	27.6″
Depth	22.5″
Height	27″
Service Type	full service
Doors	sliding glass
Refrigeration	self-contained, bottom mounted
Exterior Finish	black & panel ready
Shelf Quantity	2 shelves
Voltage	120
Phase	1
Wattage	160
