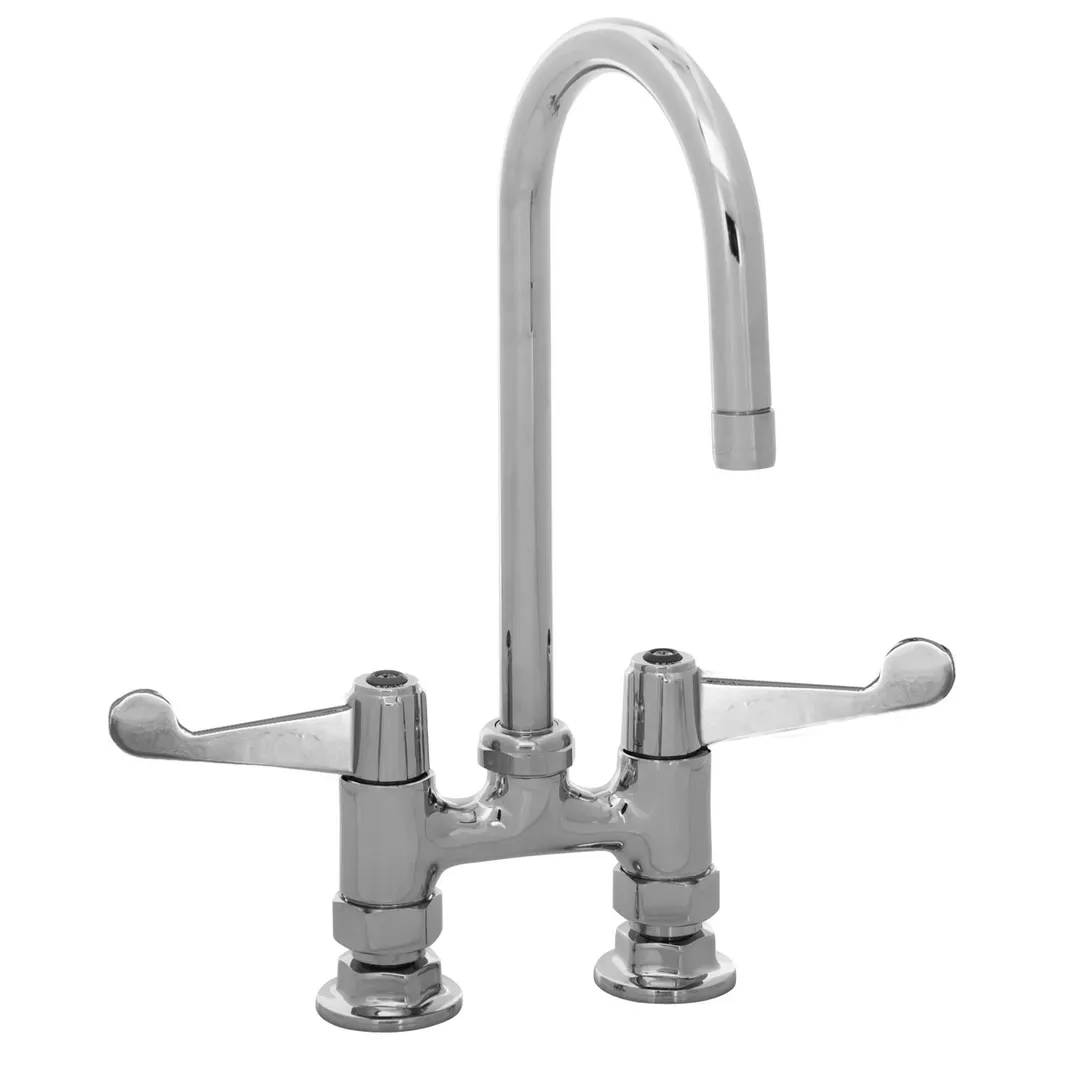

T&S Brass 5F-4DWS05 4" Deck Mount Faucet
General Info
The 5F-4DWS05,4" deck mount mixing faucet with polished chrome plated brass body, 5 9/16" equip swivel gooseneck with laminar full flow device, ceramic cartridges, equip 4" wrist action handles and 1/2" NPT male inlets.
T&S Brass 5F-4DWS05 Features
- 1/2" NPT female eccentric inlets w/ 2" flanges
- 1/2" NPT male supply nipple kit
- 4" deck mount mixing faucet w/ polished chrome plated brass body
- 5 9/16" equip swivel gooseneck w/ laminar full flow device
- Adjustable centers from 3 3/4" to 4 1/4"
- Quarter-turn ceramic cartridges
- Equip 4" wrist action handles w/ color coded screws
T&S Brass 5F-4DWS05 Specifications
- Pressure Min/Max : 20 psi (1.38 bar)/125 psi (8.62 bar)
- Temperature Min/Max: 40 F (4.44℃)/140 F (60℃)
- Body : 4 in Centers
- Body Mount : Deck
- Flow Rate : 5.2 GPM (19.68 L/min)
- Box Dimensions : 3.75 x 10.25 x 15.44
- Weight : 4.85 lbs (2.20 kg)
- Other Details : See spec. sheet
From The Manufacturer
Equip Faucet, 4" center, deck mount, 5-1/2" gooseneck, quarter-turn ceramic cartridge, wrist action handles with color coded screws, 1/2" NPT female inlets, low lead, ADA Compliant
