T&S Brass 5F-8DLS12 8" Deck Mount Faucet
General Info

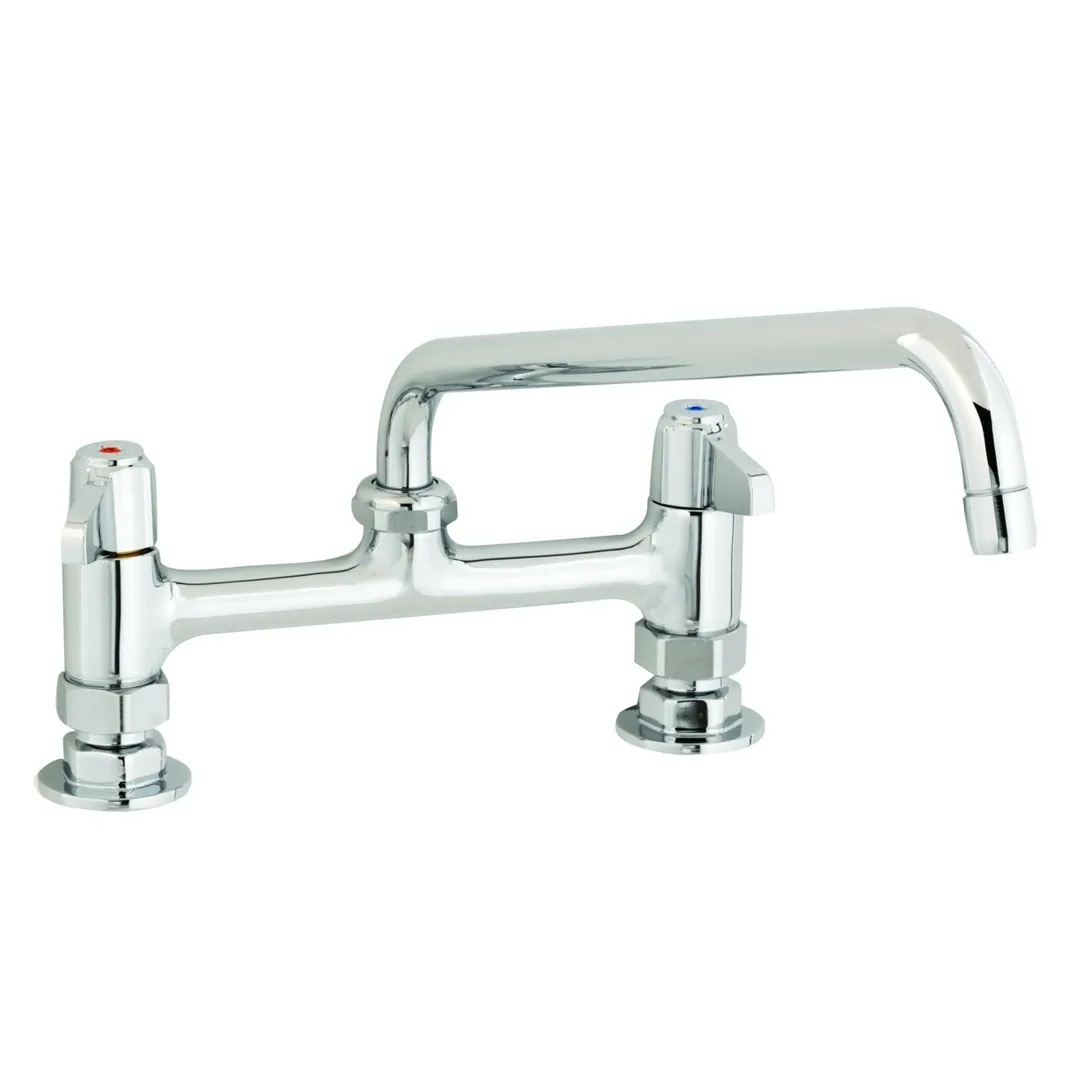

The 5F-8DLS12, 8" deck mount mixing faucet with polished chrome plated brass body, 12" swing nozzle with laminar full flow device, ceramic cartridges, lever handles and 1/2" NPT male inlets.
T&S Brass 5F-8DLS12 Features
- 1/2" NPT female inlets w/ 2" flanges
- 1/2" NPT male supply inlets
- 8" deck mount mixing faucet with polished chrome plated brass body
- 12" equip swivel gooseneck w/ laminar full flow device
- Adjustable centers from 7 3/4" to 8 1/4"
- Quarter-turn ceramic cartridges
- Equip lever handles w/ color coded screws
T&S Brass 5F-8DLS12 Specifications
- Pressure Min/Max : 20 psi (1.38 bar)/125 psi (8.62 bar)
- Temperature Min/Max: 40 F (4.44℃)/140 F (60℃)
- Body : 8 in Centers
- Body Mount : Deck
- Flow Rate : 5.23 GPM (19.80 L/min)
- Box Dimensions : 3.75 x 10.25 x 15.44
- Weight : 4.90 lbs (2.22 kg)
- Other Details : See spec. sheet
From The Manufacturer
Equip Faucet, swivel, 8", deck mount, 12" swing nozzle, quarter-turn ceramic cartridge, lever handles, includes: supply nipple kit, 1/2" NPT, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
