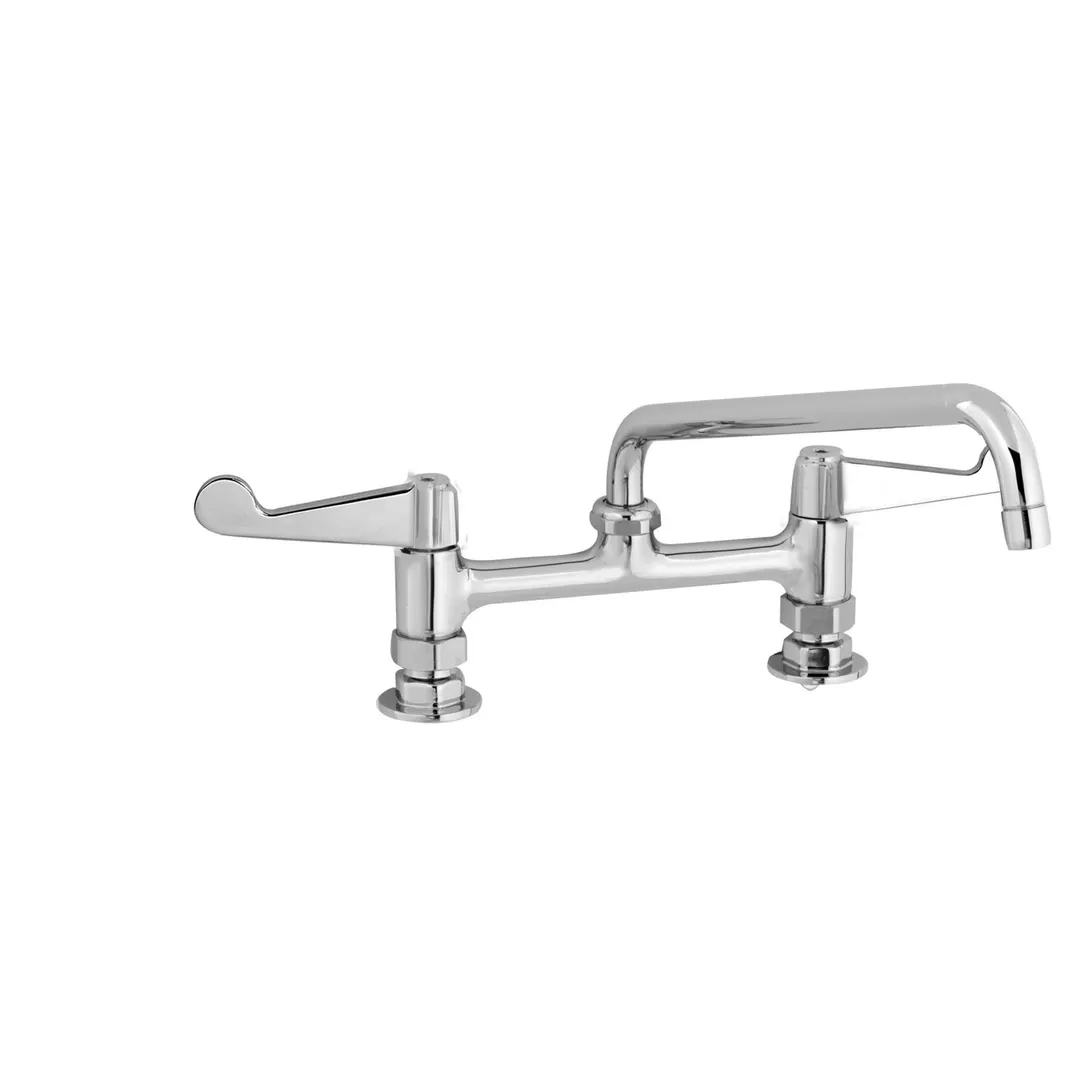

T&S Brass 5F-8DWS12 8" Deck Mount Faucet
General Info
The 5F-8DWS12, Equip Faucet, swivel, 8", deck mount, pedestal, 12" swing nozzle, ceramic cartridge, 4" wrist handles, laminar flow device, includes: supply nipple kit, 1/2" NPT, low lead, ADA Compliant.
T&S Brass 5F-8DWS12 Features
- 1/2" NPT Female Eccentric Flange
- 1/2" NPT Supply Nipple Kit (2)
- Laminar Flow Device
- 12" equip Swing Nozzle
- equip Swivel Nut, Swivel Piece O-Ring
- equip 4" Wrist Action Handle w/ Color Coded Screws
- equip Ceramic Cartridge, LTC
- Coupling Nut Washer
T&S Brass 5F-8DWS12 Specifications
- Pressure Min/Max : 20 psi (1.38 bar)/125 psi (8.62 bar)
- Temperature Min/Max: 40 F (4.44℃)/140 F (60℃)
- Body : 8 in Centers
- Body Mount : Deck
- Flow Rate : 5.27 GPM (19.95 L/min)
- Box Dimensions : 3.88 x 12.00 x 27.50
- Weight : 5.60 lbs (2.54 kg)
- Other Details : See spec. sheet
From The Manufacturer
Equip Faucet, swivel, 8", deck mount, pedestal, 12" swing nozzle, ceramic cartridge, 4" wrist handles, laminar flow device, includes: supply nipple kit, 1/2" NPT, low lead, ADA Compliant
